|Product Name:||Profile Projector / Optical Comparator||Series:||CPJ-6020V|
|Type:||Floor Type||Feature:||Clear Imaging|
|X-axis Travel (mm):||200||Y-axis Travel (mm):||100|
horizontal profile projector,
benchtop optical comparator

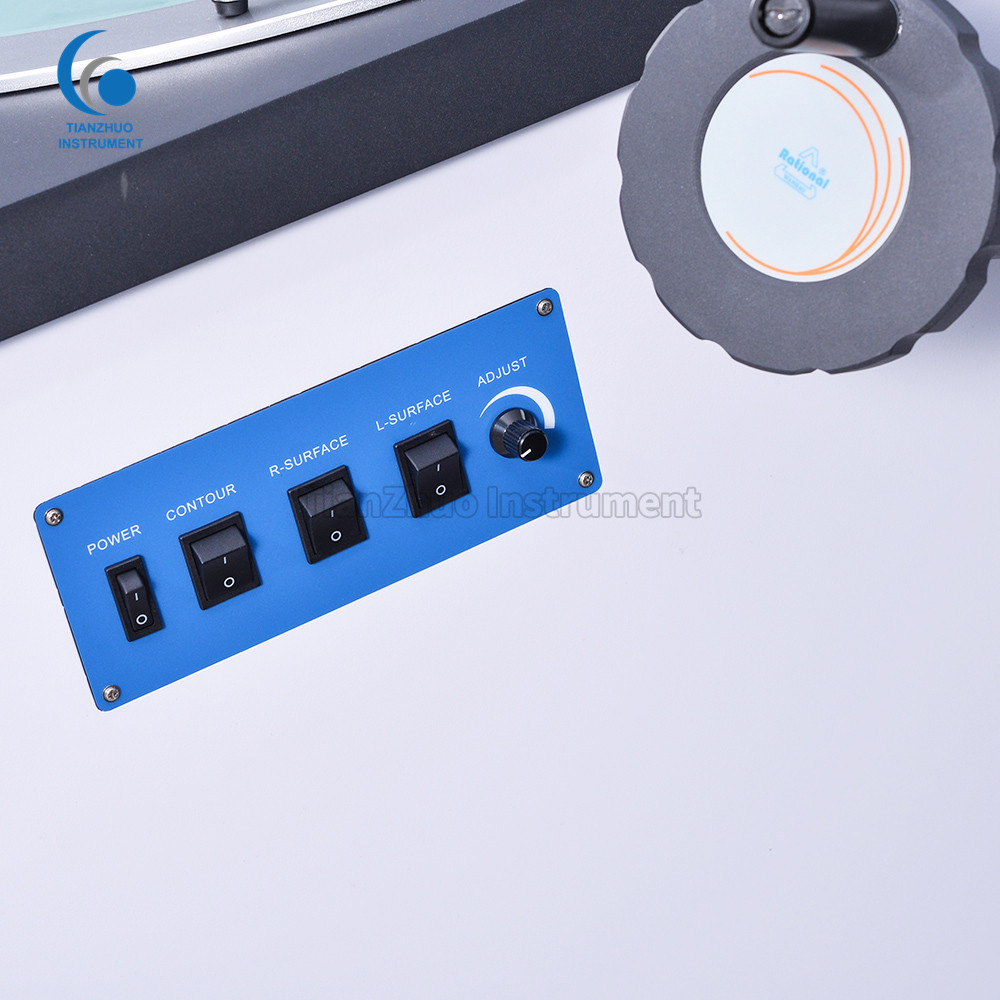

Large Floor Type Profile Projector / Optical Comparator(CPJ-6020V)
Optical comparators is a photoelectric measuring system of high precision and efficiency .It can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. The measurement data can be printed and output. It requires in the checking department and workshop and is widely used machinery, mould, tool, meter, and light industry.
CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics.
It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department.
This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.
1. Clear imaging and accurate magnification are the salient characteristics of floor-type profile projector .
2. High precision and with a 600mm diameter projector screen
3. Easy to operate
4. Resolution of linear scale: 0.5um
5. Powerful Digital Readout to support easy and accurate measurement
6. Reliable and cost-effective
7. Precise and accurate
8. Low maintenance cost
9. Optional Proprietary software
|X-axis Travel (mm)||200|
|Y-axis Travel (mm)||100|
|Metal table size (mm)||404×265|
|Glass table size (mm)||270×170|
|Indication error (mm)||2.5+L/75 (L is the length of the measured object. Unit: mm)|
|Z-axis Travel (mm)||50 (focusing)|
|Projection Screen||Size (mm)||615|
|Resolution||1' or 0.01°|
|Lens||Magnification||5× (Optional)||10× (Standard)||20× (Optional)||50× (Optional)||100× (Optional)|
|Field of view (mm)||120||60||30||12||6|
|Working distance (mm)||242.8||143.2||85.5||92||48.5|
|Max. measuring height||50||50||50||50||48|
|Power Supply: AC 100-240V 50/60Hz. Total Power: 650W|
