|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Product Name:||Vibration Testing Equipment||Consumed Power (KVA):||2.2|
|Controller Body Size(mm):||500×380×1050 (L×W×H)||Table Body Size(mm):||1200×500×450 (L×W×H)|
|Cooling:||Air Cooling||Power Supply Voltage (V/Hz):||220/50±5%|
vibration testing machine,
vibration table test equipment
Factory Supply Electromagnetic Vibration Table / Vibration Testing Equipment (TZ-80ZY+)
Touch health mode of operation, real-time LCD display, overcoming the old-fashioned digital display easy to malfunction problems, and elegant, convenient and quick.
TZ-80ZY/+ type vibration table is electromagnetic sweeping three-axis vibration table developed to meet the market demand. It has the characteristics of three-direction vibration and easy operation. It is a powerful and cost-effective vibration table widely used in national defense, aerospace, communications, electronics, automotive, home appliances and other industries.
This type of equipment is used to detect early faults, simulate actual working conditions and examine structural strength test.

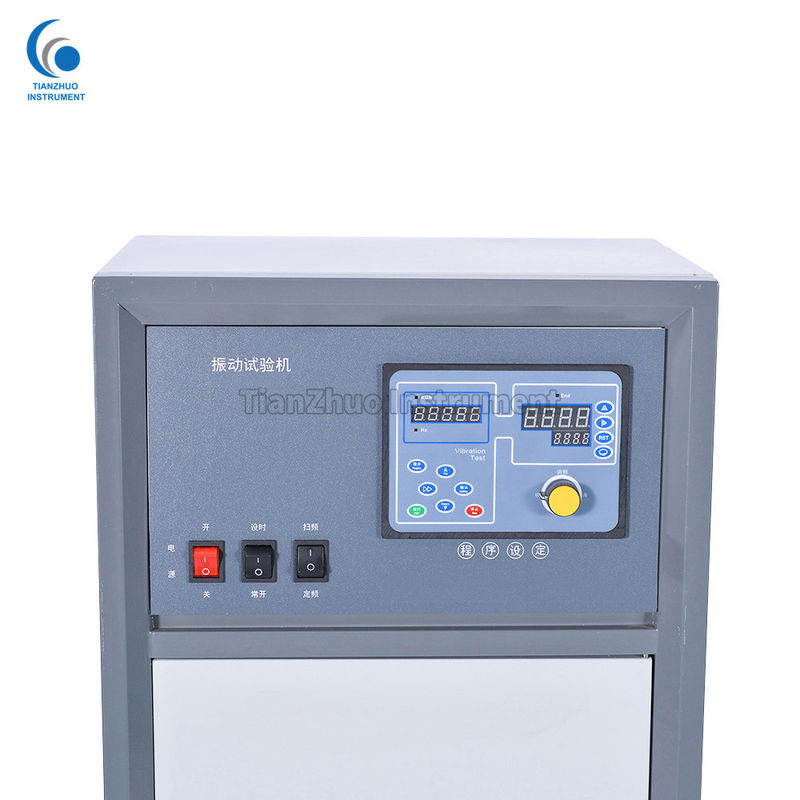

Imported LCD color touch control system, human-machine interface dialogue.
Adopt the most advanced programmable technology,easier to set the program and the cycle number arbitrarily, multi-segment sweep frequency can work at the same time.
With single point, segment, multi-segment timing and countdown function.
Stepless adjustment of amplitude to meet various test requirements in different industries.
It is convenient to use, with working time setting device.
Real-time synchronous display of control parameters without manual intervention.
Stepless amplitude adjustment, fixed and sweeping frequency operation functions adapt to various test requirements in different industries.
Imported frequency controller, digital control and display frequency, PID adjustment function.
It can display the curve of frequency change in real time. It can access the USB disk to record data and print test results by USB communication interface,.
Vertical and horizontal work independently, using electronic switching mode, improve work efficiency.
Embedded amplitude prediction program ,easy to adjust amplitude.
Four - point synchronous vibration with excellent uniformity of vibration.
Frequency control is accurate and balanced.
Add anti-interference circuit to solve the interference of strong electromagnetic field to the control circuit.
Environmentally friendly design, ultra-low noise, preferred equipment for production line .
No drift during long-term operation, no need to install anchor screws to protect the floor.
Magnesium alloy panel can completely isolate magnetic field interference and effectively prevent magnetization of the measured objects.
|Max Load Capacity(Kg)||40|
|Manual Frequency Range(Hz)||5-200|
|Automatic Sweep Range (Hz)||5-200|
|Vibrating Manner||Electromagnetic Type|
|Amplitude modulation||Stepless Amplitude Modulation, Electronic Amplitude Modulation|
|Vibration Direction||Vertical / Horizontal|
|Vibration Waveform||Sine Wave|
|Test Mode||Frequency Modulation/Automatic Sweep (Logarithmic,Linear,Multiplier,Random Vibration)|
|Control System||3 Section Program Settings /30 Procedures, Frequency And Arbitrary Curve Time Settings|
|Working Table Size (mm)||450×450×46mm×2 (L×W×H)|
|Table Body Size(mm)||1200×500×450 (L×W×H)|
|Controller Body Size(mm)||500×380×1050 (L×W×H)|
|Power Supply Voltage (V/Hz)||220/50±5%|
|Consumed Power (KVA)||2.2|
|With the development of technology, the product structure and parameters will be improved constantly. If the sample information is slightly inconsistent with the real object, the real object shall prevail,welcome to inquire.|
