|Place of Origin:||Guangdong, China|
|Model Number:||G Series|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Apply For:||2D Measurement||Series:||G Series|
|Type:||Manual||Keyword:||Video Measuring Machine|
|Z-axis Travel (mm):||150 (can Be Customized To 400)||Object View:||8.1mm~1.3m|
video measuring system,
computer measuring machine

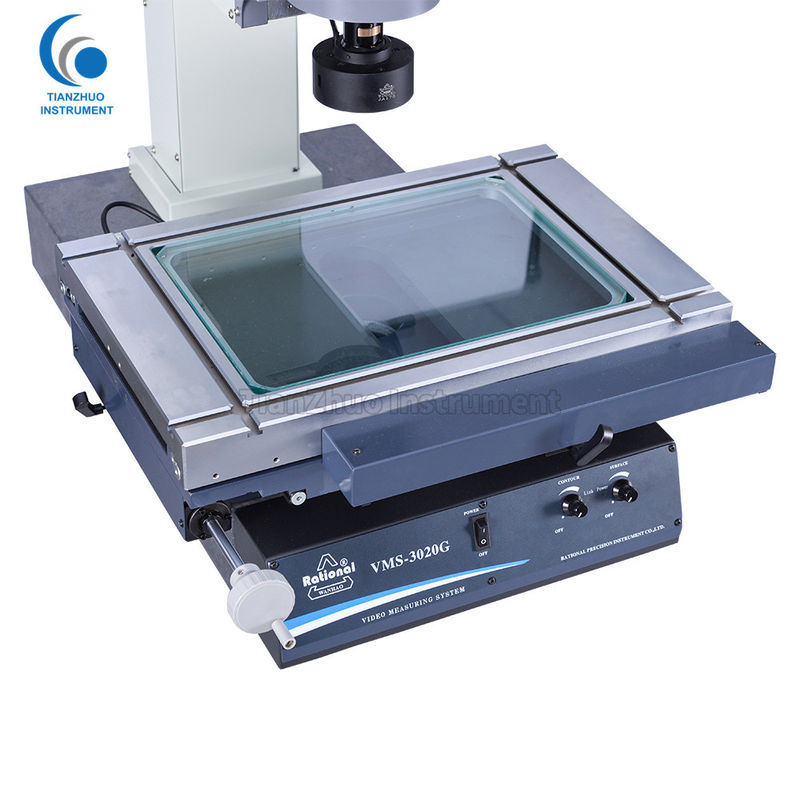

Manual Video Measuring Machine G Series
Three axis automatic control, high-speed and stable automatic measurement.
Using Renishaw grating ruler, accuracy is up to 0.5 um.
Programmable 5 ring 8 area circular table light source, LED light source.
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary, this instrument is a high precision and high efficiency measuring machine with good quality and reliability.
Widely used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
1. Varieties of lighting solutions to meet various or specific requirements of customers.
2. Effectively support data processing, data display, data input, and data output
3. Linear scales supports the resolution of 0.5um
4. Detects the measured workpiece's specific location by laser indicator, which is convenient to position and operate.
5. Foot-switch is matched with measuring software, which makes operation easier.
|Metal table size (mm)||354×228||404×228||450×280||500×330||606×466|
|Z-axis travel (mm)||150 (can be customized to 400)|
|Consistency error of origin in different sections||E0≤30 (every 100mm displacement in Z axis);|
|Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm)|
|Video system||1/3"color CCD camera|
|Auto zoom lens magnification: 0.7X~4.5X|
|Object view: 8.1mm~1.3m|
|Surface lighting and transmission lighting both adopt adjustable LED|
