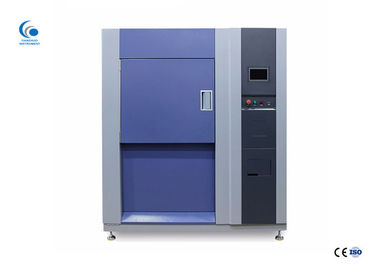

Climatic Temperature Thermal Shock Test Chamber Equipment Three Box Type

Climatic Temperature Thermal Shock Test Chamber Equipment Three Box Type

  • Climatic Temperature Thermal Shock Test Chamber Equipment Three Box Type
  • Climatic Temperature Thermal Shock Test Chamber Equipment Three Box Type
Climatic Temperature Thermal Shock Test Chamber Equipment Three Box Type
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-LR42
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Thermal Shock Test Chamber Internal Dimensions: 400mm*350mm*300mm
Power Supply: 380V Application: Climatic Temperature
High Temperature Slot: RT (normal Temperature) ~ +180 °C Type: Three Box Type
High Light:

environmental simulation chambers

,

temperature shock chamber

Hot Selling Thermal Shock Test Chamber Chambers Equipment (TZ-LR42)



Thermal Shock Test Chamber INTRODUCTION:



thermal shock test chamber is used to test the bearing extent of the material structures and composite material in an instant and continuous high temperature and extremely low temperature environment, that is in the shortest time to test its thermal expansion and contraction caused by chemical change or physical harm, which is widely used in metal, plastic, rubber, electronics and other materials and it can be used as an important reference for improving product quality.


Thermal Shock Test Chamber SPECIFICATIONS:


NameThermal Shock Test Chamber
Internal dimensions:400mm*350mm*300mm
Power supply380V
Test temperatureHigh temperature impact range: 60 ° C ~ +150 ° C
Low temperature impact range: -10 °C ~ -40 °C
Conversion timeWithin 10 seconds
High temperature slotRT (normal temperature) ~ +180 °C
Heating timeAbout 30 minutes
Low temperature slotRT (normal temperature) ~ -65 °C
Pre-cooling timeAbout 80 minutes
LoadNo load (if power supply load test is required, power is required)
Test restrictionsThis equipment prohibits the testing and storage of flammable, explosive, corrosive and other items (if the test needs to be explained in advance)
Temperature recovery time5 minutes
Temperature exposure timeHigh temperature zone, 30 minutes each in low temperature zone


Thermal Shock Test Chamber FEATURE:



  1. The cold and hot air road switching mode will be applied to the test area to realize the purpose of the cold and heat shock test.
  2. Using the most advanced measuring device, the controller adopts the man-machine interface controller of large color liquid crystal touch control dialogue LCD. It is easy to operate, easy to learn, stable and reliable. In English, complete system operation condition,
  3. It can independently set the functions of three different conditions, such as high temperature, low temperature and cold and heat shock.
  4. When the cold and heat shock conditions are carried out, two slots or three grooves and cold and hot punching can be selected to carry out the function of the impact of the high and low temperature testing machine.


Thermal Shock Test Chamber ADVANTAGES:


  1. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.
  2. Famous brands are adopted for key components to guarantee the performance and quality.
  3. We company established a sound quality assurance system and complete after-sales service guarantee system.
  4. Free warranty for 1 year.

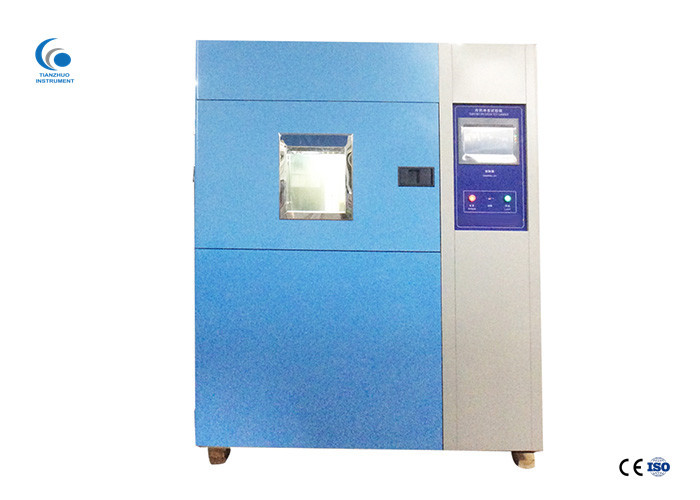

Thermal Shock Test Chamber Details

Climatic Temperature Thermal Shock Test Chamber Equipment Three Box Type 0
