Computerized Tensile Strength Tester / Material Tensile Testing Equipment

Computerized Tensile Strength Tester / Material Tensile Testing Equipment

  • Computerized Tensile Strength Tester / Material Tensile Testing Equipment
  • Computerized Tensile Strength Tester / Material Tensile Testing Equipment
Computerized Tensile Strength Tester / Material Tensile Testing Equipment
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-S2000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Tensile Strength Tester Other Name: Tensile Testing Equipment
Control Mode: LCD Display Stand-alone Control Power Unit: Kgf、gf、N、kN、lbf
Length Unit: Mm、cm、Inch Stress Unit: MPa、kPa、kgf/cm2、lbf/in2
High Light:

computerized universal testing machine

,

tensile strength testing machine

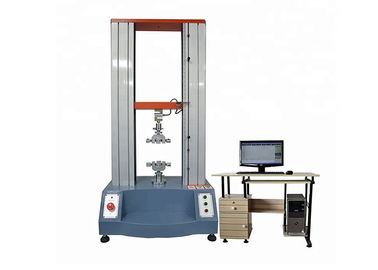

Computerized Tensile Strength Tester / Material Tensile Testing Equipment



Tensile Strength Tester Application


Tensile Strength Tester is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling and tearing.



Tensile Strength Tester Function:



  1. Adopt high precision, no gap ball screw and timely gauge belt as the guarantee of transmission system accuracy;
  2. Fully computerized data collection and motion control;
  3. Test software under the Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or edit the test method according to their own actual needs;
  4. The output of test results can be set arbitrarily;
  5. Three basic configurations of intelligence: mainframe, microcomputer and printer.



Tensile Strength Tester SPECIFICATIONS:



Model TZ-S2000 Tensile Strength Tester
Capacity to choose 1kg,2kg,5kg,10kg,20kg,50kg,100kg,200kg,500kg,1000kg,2000kg(Choose a set)
Sensor type Model S high precision sensor
Control mode LCD display stand-alone control
Power unit kgf,gf,N,kN,lbf
Length unit mm,cm,Inch
Stress unit MPa,kPa,kgf/cm2,lbf/in2
Stroke resolution 1/500,000
Force accuracy ±0.5%
The experimental speed 0.01-500mm/min computer setting
Effective travel 700mm
Experimental width Ø400mm
Stop mode Overload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset
output microwriter
motor drive Servo motor + servo driver
Use the power supply 220V 50Hz
Mechanical Imported synchronous wheel, synchronous belt + high precision ball





Tensile Strength Tester ADVANTAGES:



  1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
  2. The product has excellent performance and durability with reasonable price.
  3. Famous brands are adopted for key components to guarantee the performance and quality.
  4. We company established a sound quality assurance system and complete after-sales service guarantee system.



Service



1. Pre-service

♦ 24 Hours online service for your consult.

2. Middle service

♦ Do customer's request:

♦ Choose payment term you convienent.

♦ Promptly production and delivery,inform you in time.

3. After sale service

♦ 1 year warranty service and all life maintenance.

♦ Technical Egineer are avalible for oversea trainning.

♦ Remote control technical consult



Tensile Strength Tester Details
