|Place of Origin:||Guangdong, China|
|Model Number:||F Series|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Fearure:||Data Processing||Usad For:||Machinery, Electronics, Instrument, Meter, Watch, Light Industry, Plastics|
|Linear Scale Resolution:||0.0005mm||X, Y-axis Indication Error:||(2.5+L/100)μm|
advanced measurement machines,
visual measuring machine

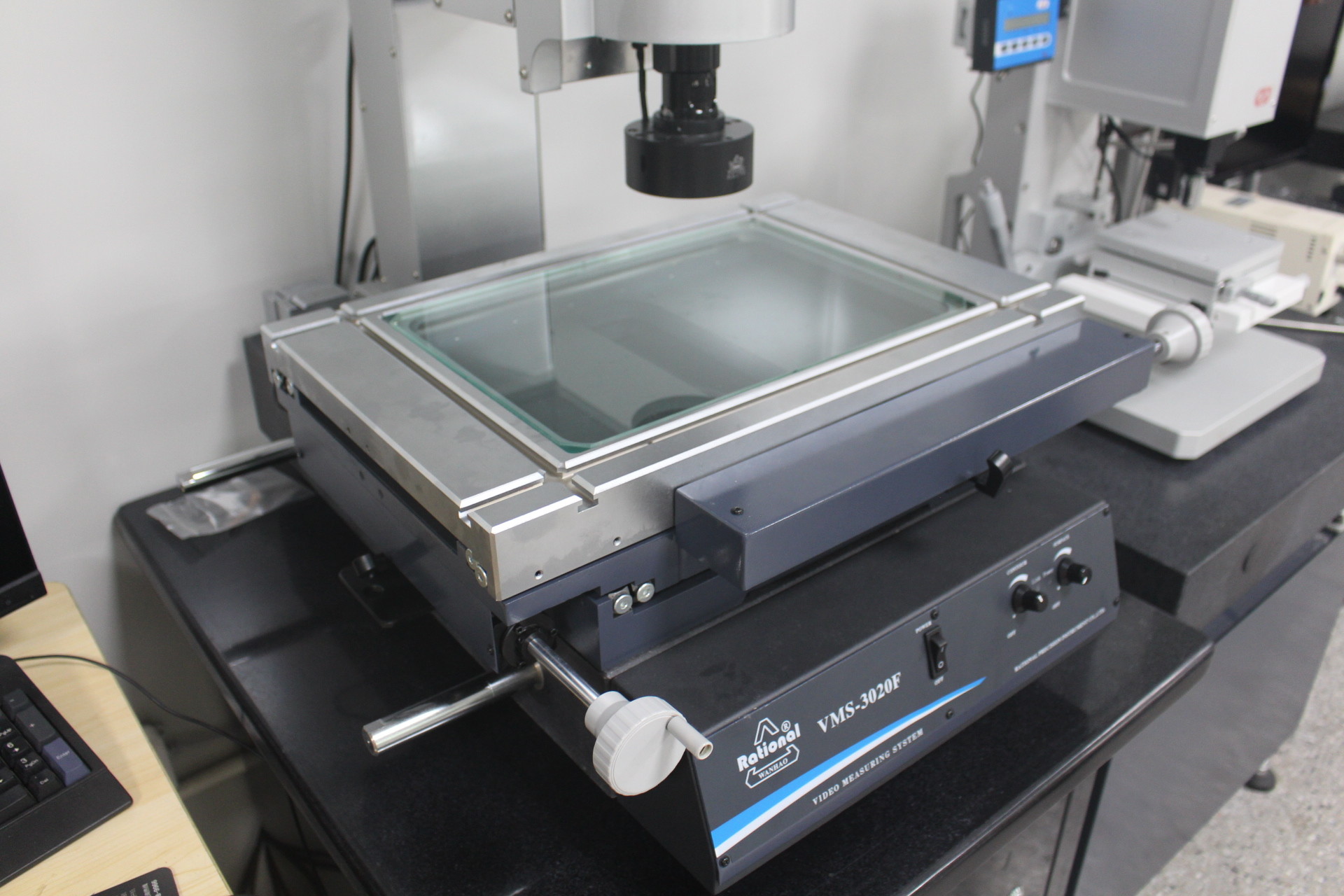

Manual Optical 2D Measuring Machine F Series
Three axis automatic control, high-speed and stable automatic measurement.
Using Renishaw grating ruler, accuracy is up to 0.5 um.
Programmable 5 ring 8 area circular table light source, LED light source.
Widely used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics.
It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
1. Various kinds of lighting - Meets various requirements for customers.
2. Data processing, data display, data input, and data output.
3. Pragmatic workpiece straightening feature.
4. Detects the measured workpiece's specific location by laser indicator.
5. Foot-switch is matched with measuring software, which makes operation easier.
|Z-axis Travel (mm)||150 (It can be customized to 400)|
|Consistency Error Of Origin In Different
|E0≤20 (every 100mm displacement in Z axis)|
|Linear scale resolution: 0.0005mm.
X, Y-axis indication error: (2.5+L/100)μm
(L is the length of the measured object. Unit: mm)
|Color gigabit web camera|
|Auto zoom lens magnification:0.58X~7.5X|
|Object view: 14mm~1.4mm|
|Video magnification: 27.4~351.3X|
