Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: CPJ-3030A/AZ
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Feature: Precise And Accurate Application: Machine Manufacturing, Electronics, Mold, Meter, Etc.
Equipped: Foot-switch X-axis Travel (mm): 295
Y-axis Travel (mm): 195 Metal Table Size (mm): 500×330
High Light:

optical profile projector

,

vertical optical comparator

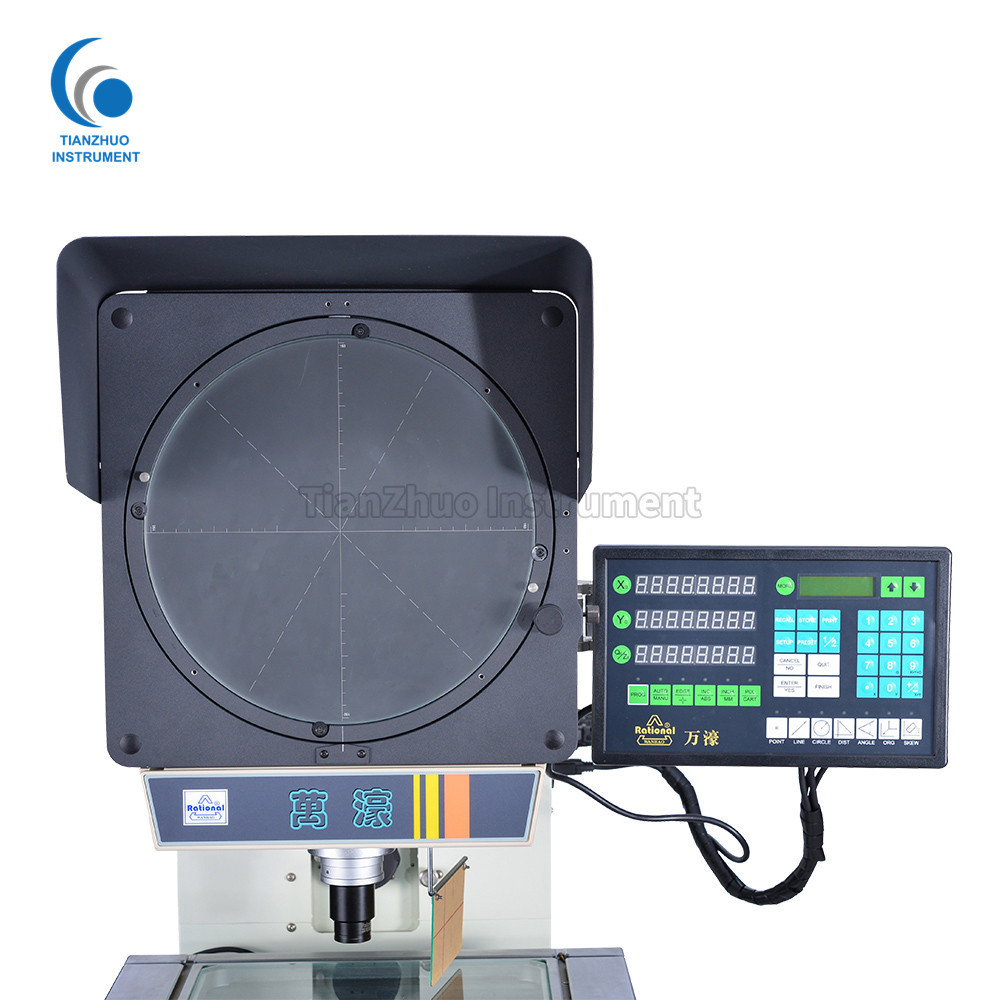

High Precision Digital Profile Projector for Plastic Industry (CPJ-3030A/AZ Series)

PRODUCT BRIEF

CPJ-3000A/AZ series digital profile projector is an economic and reliable measuring instrument with premium quality.

This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects.

This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc.

It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.



FEATURES

1. High precision with foot switch and multifunctional data processing meter

2. Easy to operate

3. Resolution of linear scale: 0.5um

4. Powerful Digital Readout to support easy and accurate measurement

5. Reliable and cost-effective

6. Precise and accurate

7. Low maintenance cost

8. Optional Proprietary software



SPECIFICATIONS



Model Reverse
Erect
CPJ-3030A
CPJ-3030AZ
X-axis Travel (mm) 295
Y-axis Travel (mm) 195
Metal Table Size (mm) 500×330
Glass Table Size (mm) 350×250
Resolution (μm) 0.5
Indication Error (mm) E1XY=(2.5+L/100)
Z-axis Travel (mm) 100 (focusing)
Dimension (mm) 780×780×1100
Projection Screen Size (mm) ∅312
Rotary Range 0~360°
Resolution 1' or 0.01°
Lens Information Magnification 10× (Optional) 20× (Optional) 50× (Optional) 100× (Optional)
Field Of View (mm) ∅30 ∅15 ∅6 ∅3
Working Distance (mm) 77.7 44.3 38.4 25.3
Max. Measuring Height (mm) 90 90 90 90
Power Supply: AC 100-240V 50/60Hz. Total Power: 400W
