Environmental Stability Thermal Shock Test Chamber For Cold And Heat

Environmental Stability Thermal Shock Test Chamber For Cold And Heat

  • Environmental Stability Thermal Shock Test Chamber For Cold And Heat
  • Environmental Stability Thermal Shock Test Chamber For Cold And Heat
Environmental Stability Thermal Shock Test Chamber For Cold And Heat
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-LR42
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Thermal Shock Test Chamber Internal Dimensions: 400mm*350mm*300mm
Power Supply: 380V Conversion Time: Within 10 Seconds
High Temperature Slot: RT (normal Temperature) ~ +180 °C Heating Time: About 30 Minutes
High Light:

environmental simulation chambers

,

temperature shock chamber

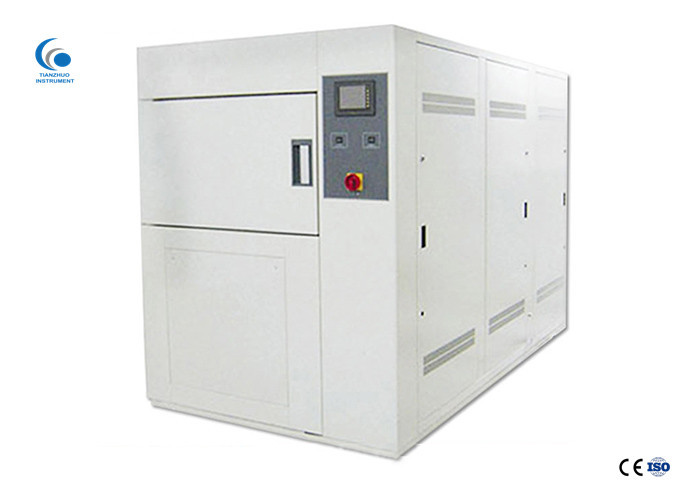

Environmental Stability Cold and Heat Thermal Shock Test Equipment (TZ-LR42)



Heat Thermal Shock Test Equipment INTRODUCTION:



The three box type cold and heat shock test box is designed and manufactured according to the requirements of the user.

It is suitable for high and low temperature impact test and storage and test in high temperature or low temperature environment for the whole machine and parts of aviation, aviation, military, naval, electrical, electronic and other products. In order to evaluate the test behavior of the whole machine (or component), electrical apparatus, instrument, material.



Heat Thermal Shock Test Equipment SPECIFICATIONS:



Internal dimensions: 400mm*350mm*300mm
Power supply 380V
Test temperature High temperature impact range: 60 ° C ~ +150 ° C
Low temperature impact range: -10 °C ~ -40 °C
Conversion time Within 10 seconds
High temperature slot RT (normal temperature) ~ +180 °C
Heating time About 30 minutes
Low temperature slot RT (normal temperature) ~ -65 °C
Pre-cooling time About 80 minutes
Resolution 0.1 ° C
Control accuracy ±0.5°C
Temperature deviation ±2.0°C
Load No load (if power supply load test is required, power is required)
Test restrictions This equipment prohibits the testing and storage of flammable, explosive, corrosive and other items (if the test needs to be explained in advance)
Temperature recovery time 5 minutes
Temperature exposure time High temperature zone, 30 minutes each in low temperature zone


Heat Thermal Shock Test Equipment FEATURE:



  1. The equipment is divided into three parts, which are high temperature box, low temperature box and test box.
  2. The unique structure of heat break and the effect of heat storage and cold storage are collected.
  3. The cold and hot air road switching mode will be applied to the test area to realize the purpose of the cold and heat shock test.
  4. Using the most advanced measuring device, the controller adopts the man-machine interface controller of large color liquid crystal touch control dialogue LCD. It is easy to operate, easy to learn, stable and reliable. In English, complete system operation condition,
  5. It can independently set the functions of three different conditions, such as high temperature, low temperature and cold and heat shock.
  6. When the cold and heat shock conditions are carried out, two slots or three grooves and cold and hot punching can be selected to carry out the function of the impact of the high and low temperature testing machine.
  7. It has fully automatic, high precision system loop, any machine parts movement, P.L.C locking process, P.I.D automatic calculation control, and high temperature control precision.



Heat Thermal Shock Test Equipment ADVANTAGES:



  1. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.
  2. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
  3. Famous brands are adopted for key components to guarantee the performance and quality.
  4. We company established a sound quality assurance system and complete after-sales service guarantee system.
  5. Free warranty for 1 year.

Heat Thermal Shock Test Equipment Details



Environmental Stability Thermal Shock Test Chamber For Cold And Heat 0

Environmental Stability Thermal Shock Test Chamber For Cold And Heat 1
