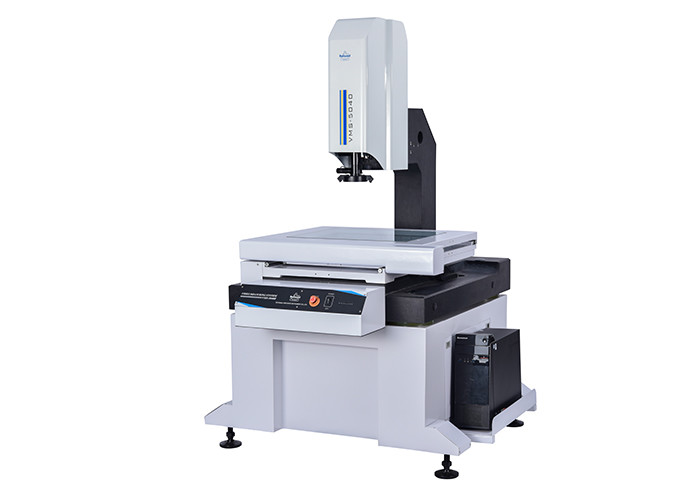

Ergonomic Design CNC Video Measuring System With Joystick Lab Equipment

Ergonomic Design CNC Video Measuring System With Joystick Lab Equipment

  • Ergonomic Design CNC Video Measuring System With Joystick Lab Equipment
Ergonomic Design CNC Video Measuring System With Joystick Lab Equipment
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: VMS-5040H
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: CNC Video Measuring System Design: Ergonomic Design
Resolution: 0.5μm Indication Error: E1XY=(2.5+L/100)μm
Warranty: 12 Months Power: AC 100-240V 50/60Hz
Certificate: CE Complied Place Of Origin: Guangdong, China
High Light:

cnc measuring equipment

,

cnc video measuring machine

Ergonomic Design CNC Video Measuring System With Joystick Lab Equipment



CNC Video Measuring System Use

Small CNC measuring machine is a high performance measuring equipment developed by our company.It can realize high efficiency and accurate measure large quanities of workpieces.It is suitable for the inspection and quality control of precision parts.In the machinery,electronic,hardware,plastics and other industries have been widely used.



CNC Video Measuring System Specifications:



Model VMS-5040H CNC Video Measuring System
Metal table size 786×636mm
Glass table size 570×470mm
Travel 470×370mm
Linear Scale Resolution 0.5μm
Indication Error E1XY=(2.5+L/100)μm
Dimension (L×W×H) 1200×1270×1870
Z-axis Travel(mm) 200 (Can be customized to 400mm)
Weight (kg) 850




CNC Video Measuring System Features:



  1. The seft-developed Measuring software has meet various requirements of customers.
  2. Adopts subpixel subdivision technique to improve resolving power of boundary.
  3. Equipped with joystick, which is also able to be programmed by software.
  4. SPC data processing system and large quantities of jig measurement.
  5. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.
  6. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.
  7. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.
  8. Detects the measured workpiece’s specific location by laser indicator, which is quick to position, and convenient to operate.



CNC Video Measuring System Advantages:


1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price.

3. Famous brands are adopted for key components to guarantee the performance and quality.



CNC Video Measuring System Details



Ergonomic Design CNC Video Measuring System With Joystick Lab Equipment 0
