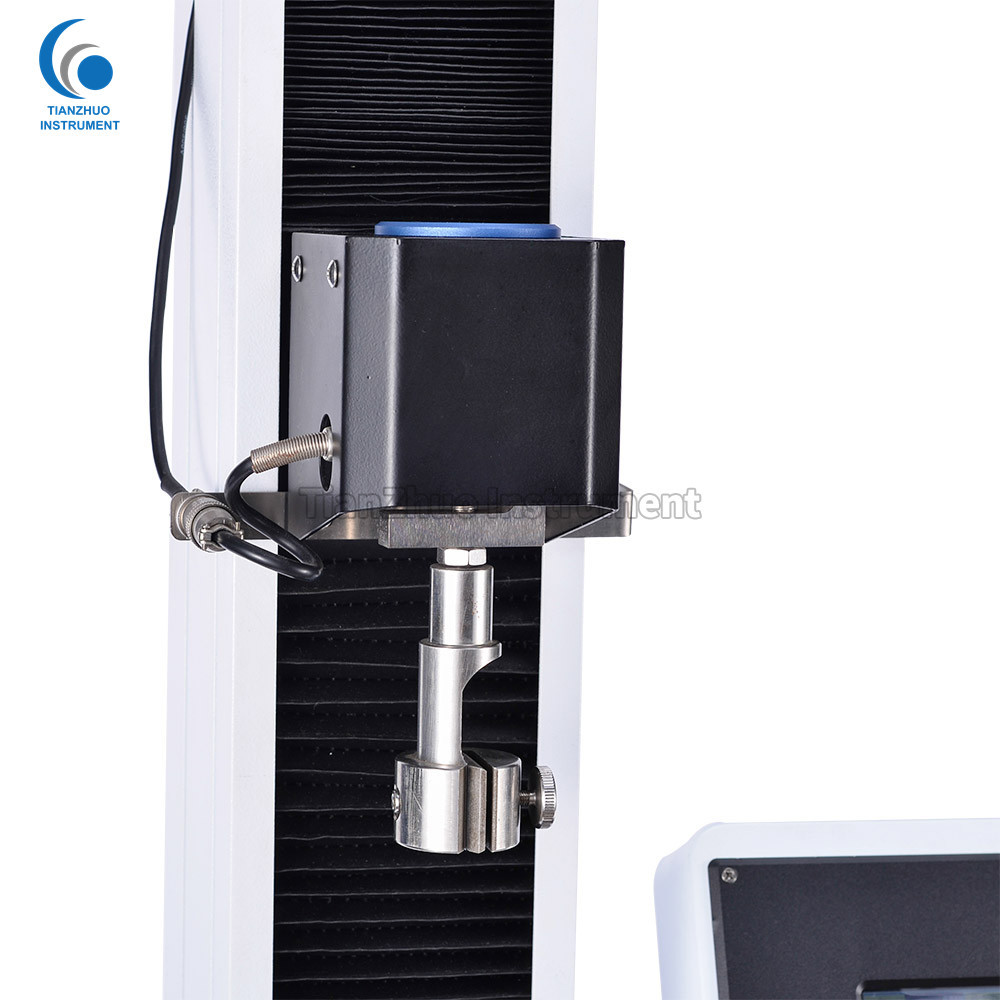

Heavy Tensile Testing Machine For Various Materials Optional Computer Software

Heavy Tensile Testing Machine For Various Materials Optional Computer Software

  • Heavy Tensile Testing Machine For Various Materials Optional Computer Software
Heavy Tensile Testing Machine For Various Materials Optional Computer Software
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Tensile Testing Machine Application: Various Materials
Column: Single Return Speed: 100mm/min
STANDARDS: GB/T 4850-2002、GB/T 2790-1995、GB/T 2792-1998 Outer Size: 500*450*1050mm
High Light:

universal mechanical testing machine

,

computerized universal testing machine

microcomputer universal material Tensile Testing Machine single column



APPLICATION

The testing machine can be widely used in the tensile testing of various materials such as plastics, rubber, leather,

shoes materials, clothing, textiles, inorganic materials, furniture, wire, building materials, insulators, terminals.etc.



STANDARDS



GB/T 4850-2002,GB/T 2790-1995,GB/T 2792-1998



TECHNICAL PARAMETERS





Model TZ-TTM01
Measurement Range 6~2000N(We can accept customization according to customers requirements)
Outer Size 500*450*1050mm
Test Force Range 0.4%-100% FS
Display Value Accuracy Indication error ±1% , Indication variability ≤1%
Extension Measurement Range 0 ~ 360 mm (Under 180mm standard test length)
Extensibility Measurement Accuracy ±0.1mm
Test Speed Adjustment Range (1 ~ 200) mm / min
Return Speed 100mm/min
Test Speed Error (5.5 ~ 10) mm / min: ± 1mm / min ; (10 ~ 180) mm / min: ± 5%
Clip Spacing (Test Length) Adjustable (Standard clip spacing is 180mm)
Clip Spacing Positioning Error ±0.5mm
Trigger Chuck Reset Error ±0.1mm
Data Output Optional computer software
Printout Modular integrated thermal printer
Machine Quality About 80Kg
