Type: Floor Type Series: CPJ-6020V
Keyword: Profile Projector / Optical Comparator Feature: Large Size
X-axis Travel (mm): 200 Y-axis Travel (mm): 100
High Light:

horizontal profile projector

,

mechanical optical comparator

Large Floor Type Profile Projector / Optical Comparator(CPJ-6020V)
High Efficiency 650W Horizontal Optical Comparator For Measuring Chamber 0
PRODUCT INTRODUCTION

CPJ-6020V Floor Type Profile Projector is a high precision and high efficiency optical measuring instrument integrating optics, mechanics and electronics.

It is widely used in the field of machinery, instrument, meter, electronics, and light industry as well as in measuring chamber and laboratory of universities and institutes, research institutes and metrological verification department.

This instrument can efficiently measure the geometric dimension and profile of various complicated shaped workpiece.

FEATURES

1. Clear imaging and accurate magnification are the salient characteristics of floor-type profile projector .

2. High precision and with a 600mm diameter projector screen

3. Easy to operate

4. Resolution of linear scale: 0.5um

5. Powerful Digital Readout to support easy and accurate measurement

6. Reliable and cost-effective

7. Precise and accurate

8. Low maintenance cost

9. Optional Proprietary software



SPECIFICATIONS



Model CPJ-6020V
X-axis Travel (mm) 200
Y-axis Travel (mm) 100
Metal table size (mm) 404×265
Glass table size (mm) 270×170
Resolution (μm) 0.5
Indication error (mm) 2.5+L/75 (L is the length of the measured object. Unit: mm)
Z-axis Travel (mm) 50 (focusing)
Weight (kg) 360
Dimension (mm) 1200×1140×1940
Projection Screen Size (mm) 615
Rotary range 0~360°
Resolution 1' or 0.01°
Lens Magnification 5× (Optional) 10× (Standard) 20× (Optional) 50× (Optional) 100× (Optional)
Field of view (mm) 120 60 30 12 6
Working distance (mm) 242.8 143.2 85.5 92 48.5
Max. measuring height 50 50 50 50 48
Power Supply: AC 100-240V 50/60Hz. Total Power: 650W



PRODUCT PHOTOS

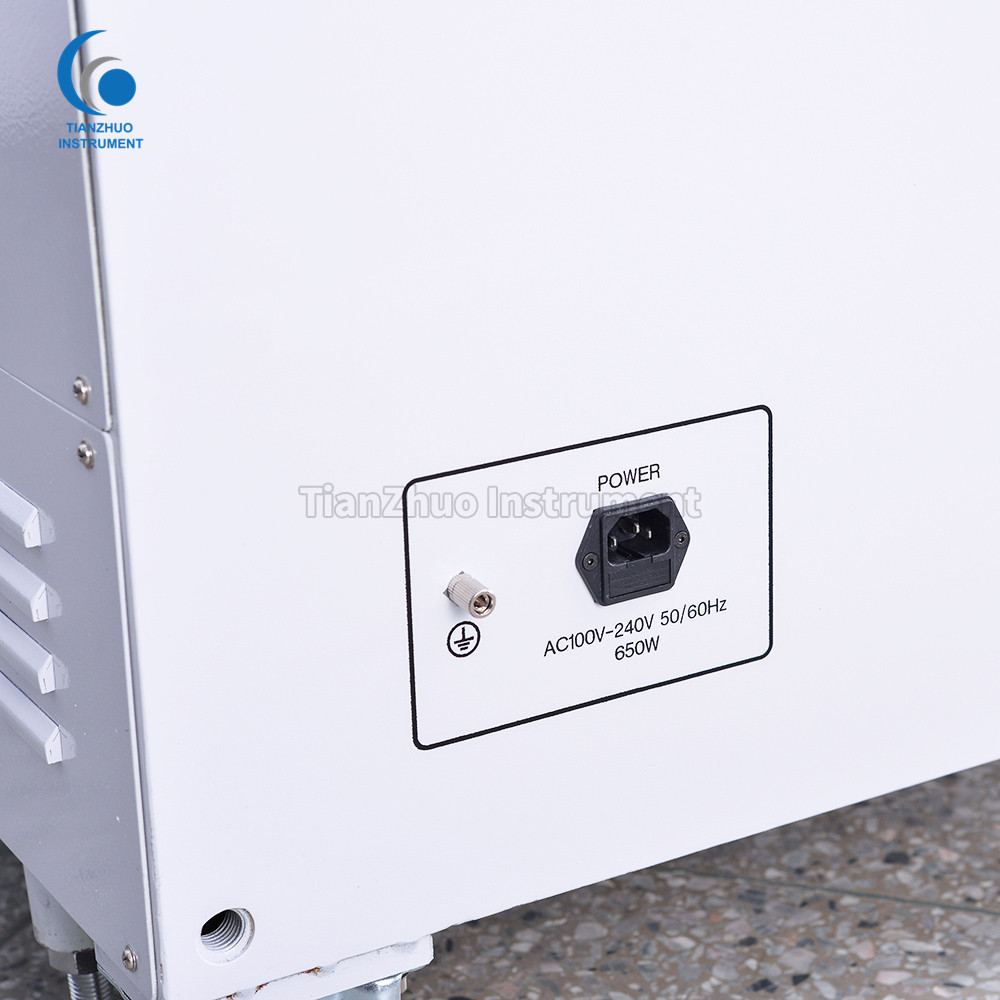

High Efficiency 650W Horizontal Optical Comparator For Measuring Chamber 1
