Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: H Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Software: Powerful Proprietary Product Name: CNC Video Measuring System
Feature: Auto Focusing Linear Scale Resolution: 0.5μm
Weight (KG): 146/168/266 Field Of View: 11.1mm~1.7m
High Light:

cnc measuring equipment

,

cnc vision measuring system

CNC Video Measuring System H Series

The working stage of the Standard series full automatic vision measurement machine is made of high performance aluminum alloy, which is light and with high rigidity, ensures the smooth and outstanding axis motion performance.

PRODUCT INTRODUCTION


The series of machines have been effectively modified with the practical application experiences and valuable feedback from clients since the initial model was launched 13 years ago.

It won the admiration from customers world wide.You cannot afford to miss this if you are looking for a reliable, efficient and cost-effective measuring system.


FEATURES


1. The powerful proprietary measuring software ,meet various requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. X, Y, Z axes all adopt servo control system - Quick positioning ,high precision, and stable operation.
7. Adopts self-developed sophisticated embedded module control system,ensures a more stable operation.

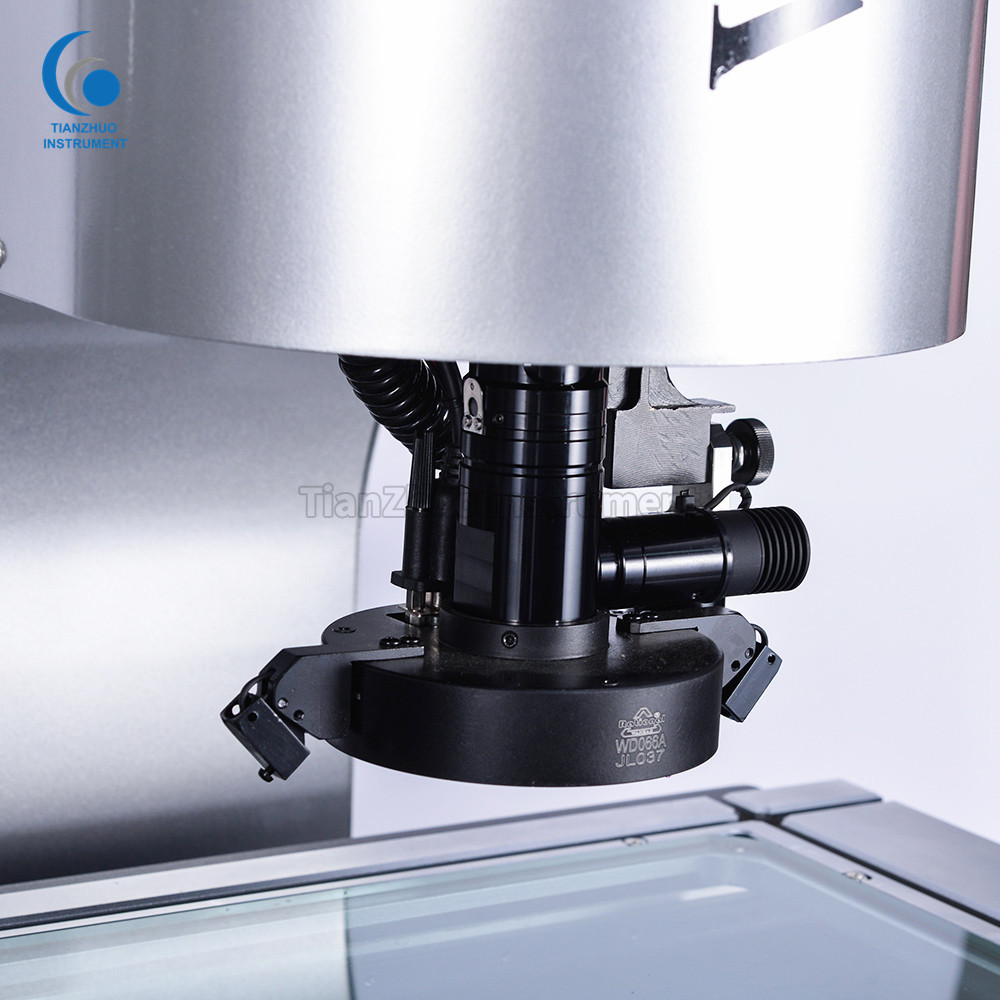

8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for sophisticated workpieces.
9. Detects the measured workpiece's specific location by laser indicator, which is easier to operate.


SPECIFICATIONS

Model VMS-2515H VMS-3020H VMS-4030H
Working Table Metal table size (mm) 450×280 500×330 606×466
Glass table size (mm) 306×196 350×250 450×350
Travel (mm) 220×120 270×170 370×270
Linear Scale Resolution 0.5μm
Indication Error E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm)
Consistency Error Of Origin In Different Sections E0≤20 (every 100mm displacement in Z axis)
Dimension (mm) 760×600×900 760×600×900 970×670×940
Weight (KG) 146 168 266
Z-axis Travel (mm) 150 (Can be customized to 300mm)
Accessories 1X lens tube (Standard) 0.5X lens tube (Optional)
Zoom Lens 0.7-4.5X 0.7-4.5X
Additional Lens Magnification Field of view (mm) Magnification Field of view (mm) Working Distance (mm)
0.5X (Optional) 10-64X 22-3.4 5-32X 44-6.8 175
1X (Standard) 20-128X 11.1-1.7 10-64X 22-3.4 92
2X (Optional) 40-256X 5.5-0.9 20-128X 11.1-1.7 36
Brand PC (Standard), joystick (Standard)
Video System 1/2" color CCD camera. Brand zoom lens (Optional)
Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (Resolution: 1440*900)
Field of view: 11.1mm~1.7m
Power Supply: AC 100-240V 50/60Hz. (Customized) Power: 250W (Excluding PC)
