High Precision Vertical Profile Projector For Plastic Industry CPJ - 3000A / AZ Series

High Precision Vertical Profile Projector For Plastic Industry CPJ - 3000A / AZ Series

  • High Precision Vertical Profile Projector For Plastic Industry CPJ - 3000A / AZ Series
  • High Precision Vertical Profile Projector For Plastic Industry CPJ - 3000A / AZ Series
High Precision Vertical Profile Projector For Plastic Industry CPJ - 3000A / AZ Series
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Other Name: Digital Profile Projector Series: CPJ-3000A/AZ
Feature: High Precision Resolution: 1' Or 0.01°
Rotary Range: 0~360° Size (mm): ∅312
Application: Machine Manufacturing, Electronics, Mold, Meter, Etc Power Supply: AC 100-240V 50/60Hz. Total Power: 400W
High Light:

optical profile projector

,

vertical optical comparator

High Precision Digital Profile Projector for Plastic Industry (CPJ-3000A/AZ Series)



Optical Comparator Used Vertical Profile Projector precise and excellent non-contact optical measuring instrument integrated with the technology of optic, mechanic, electricity and computer. It is widely used at the field of mechanism, instrument, electronic, rubber industry for quality control, it can inspect all kinds of surface and outline of complicated work-pieces, such as, cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.



PRODUCT BRIEF

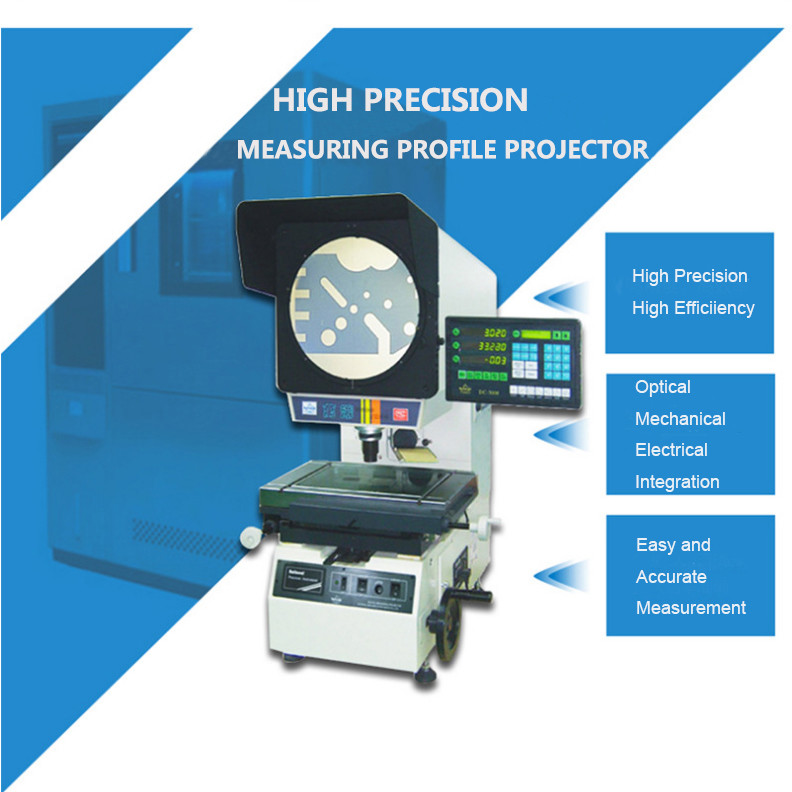

CPJ-3000A/AZ series digital profile projector is an economic and reliable measuring instrument with premium quality.

This instrument is equipped with foot-switch and multi-functional data processing system, which is convenient to output data and sample, enabling the user to effectively and sufficiently inspect the measured objects.

This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc.

It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.



FEATURES

1. High precision with foot switch and multifunctional data processing meter

2. Easy to operate

3. Resolution of linear scale: 0.5um

4. Powerful Digital Readout to support easy and accurate measurement

5. Reliable and cost-effective

6. Precise and accurate

7. Low maintenance cost

8. Optional Proprietary software



SPECIFICATIONS



Model Reverse
Erect
CPJ-3015A
CPJ-3015AZ
CPJ-3020A
CPJ-3020AZ
CPJ-3025A
CPJ-3025AZ
CPJ-3030A
CPJ-3030AZ
CPJ-3040A
CPJ-3040AZ
X-axis Travel (mm) 150 200 250 295 400
Y-axis Travel (mm) 100 100 150 195 300
Metal table size (mm) 354×228 404×228 450×280 500×330 606×466
Glass table size (mm) 210×160 260×160 306×196 350×250 450×350
Resolution (μm) 0.5 0.5 0.5 0.5 0.5
Indication error (mm) E1XY=(2.5+L/100)
Z-axis Travel (mm) 100 (focusing) 100 (focusing) 100 (focusing) 100 (focusing) 100 (focusing)
Dimension (mm) 780×780×1100 810×780×1120 810×780×1120 900×780×1020 1040×780×1120
Projection screen Size (mm) ∅312
Rotary range 0~360°
Resolution 1' or 0.01°
Lens Information Magnification 10× (Optional) 20× (Optional) 50× (Optional) 100× (Optional)
Field of view (mm) ∅30 ∅15 ∅6 ∅3
Working distance (mm) 77.7 44.3 38.4 25.3
Max. measuring Height (mm) 90 90 90 90

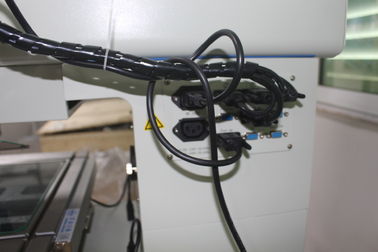

Power supply: AC 100-240V 50/60Hz. Total power: 400W
