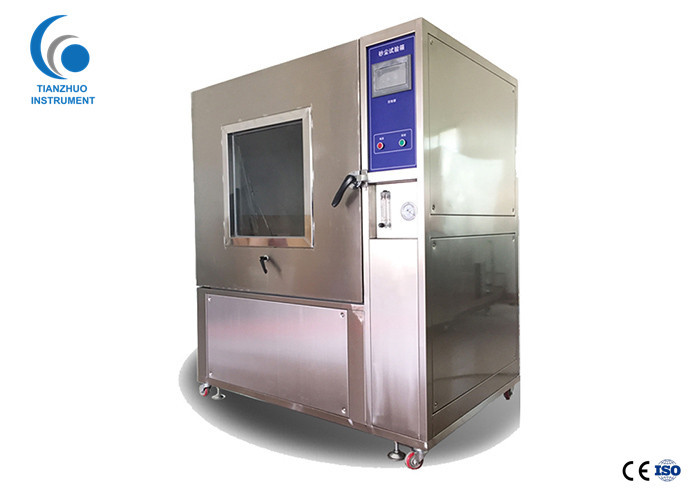

Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control

Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control

  • Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control
  • Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control
Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-1000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Sand And Dust Test Chamber The utility room capacity: 1000L
Metal sieve  Standard Spacing: 50um Metal wire diameter: 75um
The utility  Room size: 100*100*100cm Internal Material: SUS304 # Stainless Steel
Control: Color Touch Screen Control Power supply: AC380V Or 220V ± 10%,50HZ
High Light:

sand and dust testing

,

dust testing equipment

Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control



Sand And Dust Test Chamber INTRODUCTION



This product is applicable for the dust proof and resistant test of various auto conponents and parts including lamps, neters, electric dust proof sheath, steering systen and lock etc.
Executive Components of Sand Dust Test Chamber Imported German Klocner IMoeller progranmable controller is available.
AC contactor, switch and button are available.
time relay is available.
dust proof socket is available.



Sand And Dust Test Chamber SPECIFICATIONS



Model number TZ-500 TZ-800 TZ-1000 TZ-1500
The utility room capacity (L) 500 800 1000 1500
Technique
Characteristic
Metal sieve
standard spacing
50um
Metal wire diameter 75um
Talcum powderdosage 2Kg/m ² ~ 4Kg/m ²

Spray the powder

declines the

dust form

1 Decline the dust type freely:
the adoption leaves the heart breeze machine to blow
the sand dust to the box to take over 1/5 make it sink freely.
2. Blow the sand dust: The barometric type of bottom sprays the ash, three file pressures are adjustable
The utility
room size(cm)
D 80 90 100 100
W 80 90 100 100
H 80 100 100 150
Material Internal SUS304 # stainless steel
External Cold rolled sheet antirust coating processing or #SUS304
stainless steel (optional)
Control system Operator interface The liquid crystal display color touch screen controller or touch-tone LCD contrller(optional)

Operation

mode

program operation/ constant type operation
Enter PT-100 Sensor
power supply AC380V or 220V ± 10%,50HZ
Standard Two pieces of test material shelf, one instruction,
and one dust screen



Sand And Dust Test Chamber FEATURES



  1. The structure design of the test system is advanced and reasonable, in line with: GB2423, GB4706, GB4208, DIN
  2. The main functional components of the test box are equipped with world famous brand configuration, advanced and reliable technical principles, and the best control of noise and energy saving - its performance can replace similar foreign products.



Sand And Dust Test Chamber ADVANTAGES


1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.

5. Free warranty for 1 year.



STRICT QUALIT ASSURANCE SYSTEM



Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control 0





Sand And Dust Test Chamber Details



Lab Environmental Sand And Dust Test Chamber Color Touch Screen Control 1
