|Model:||VMS-2515G||Application:||2D And 2.5D Measurement|
|Camera:||1/3" Color CCD Camera||Zoom Lens:||0.7X~4.5X|
|Warranty:||12 Months||Power:||AC 100-240V 50/60Hz|
|Certificate:||CE Complied||Place Of Origin:||Guangdong, China|
video measuring system,
computer measuring machine

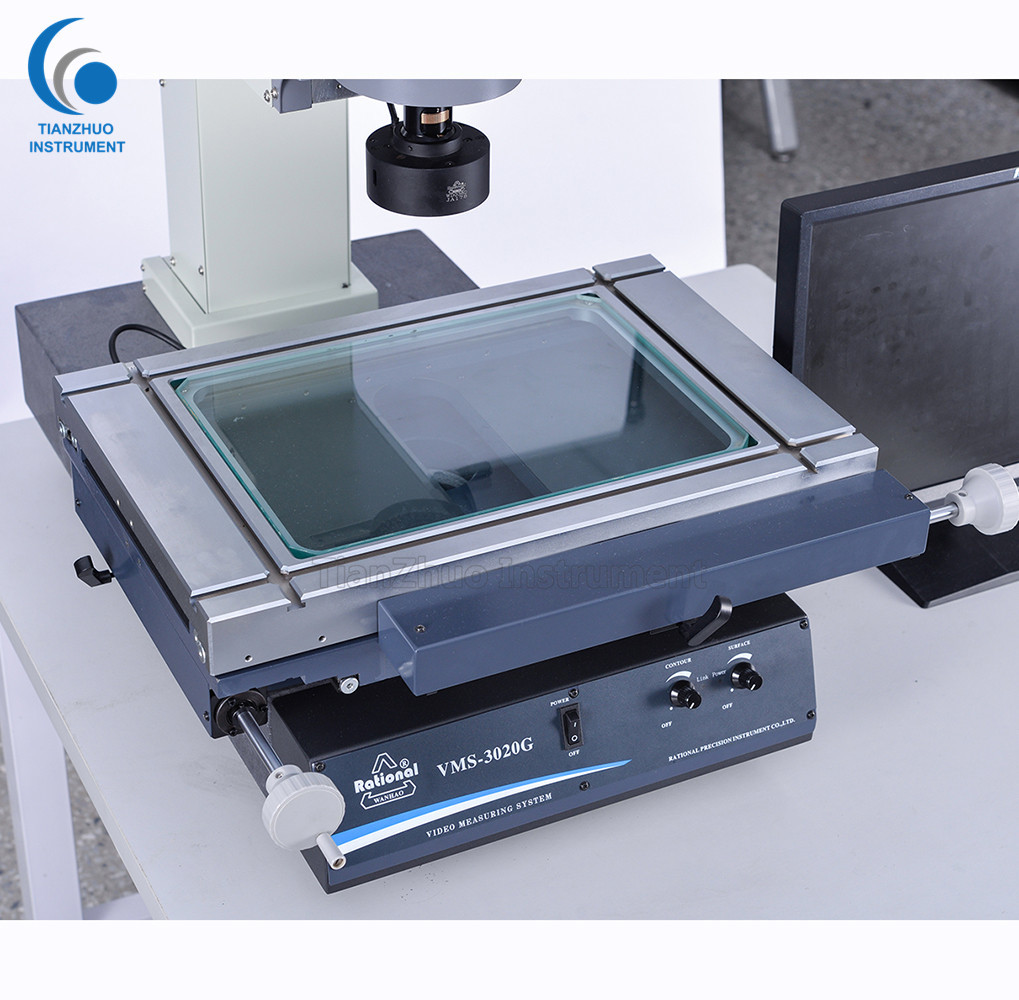

Optical measuring system manual video measuring machine VMS-2515G for machinery
The Manual Video Measuring Machine G series, from Tianzhuo company's outstanding image instrument hardware technology, equipped with a powerful manual image measurement software QS3D-M, can measure accurately the elements such as dot, line, circle, etc and has strong statements output function, especially suitable for measuring variety and small batch products, widely used in the mould, machinery, electronics, and other precision hardware and other industries.
1. Independently developed QMS3D-M software and equiped with high-definition color camera;
2. The software helps users to know whether the light is oversaturated or not;
3. Height auxiliary measurement can be achieved;
5. The resolution of the linear scale is 0.5μm.
4. Patented laser pointer technology is convenient for focusing and positioning;
5. Foot switch is combined with software for easier operation.
6. The measurement data can be exported to Word, Excel and AntoCAD format.
|Metal table size (mm)||354×228||404×228||450×280||500×330||606×466|
|Z-axis travel (mm)||200 (can be customized to 400)|
|Consistency error of origin in different sections||
G series: E0≤30 (every 100mm displacement in Z axis);
F series: E0≤20 (every 100mm displacement in Z axis)
|Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm)|
|Video system||F series||G series|
|GIGE Color Camera||1/3”color CCD camera|
|Auto zoom lens magnification: 0.58X~7.5X||Auto zoom lens magnification: 0.7X~4.5X|
|Magnification: 27.4~351.3X(24"display)||Magnification: 26.6~171X|
|Object view: 14mm~1.4mm||Object view: 8.1mm~1.3m|
|Surface lighting and transmission lighting both adopt adjustable LED|
This machine is widely used in the fields of two-dimension coordinate measurement, such as machinery, electronics, mold, injection molding, metal, rubber, low-pressure electric equipment, magnetic materials, precision metal, precision stamping, connectors, connectors, terminals, mobile phone, household appliances, computer (PC), LCD TV (LCD), printed circuit board (PCB), PCB, car, medical apparatus and instruments, clocks, instruments and meters, etc.
