Optical comparators is a photoelectric measuring system of high precision and efficiency .It can inspect all kinds of surface and outline of the complicated work pieces such as cam, template, tread, gear, perform willing cutter and so on. The measurement data can be printed and output. It requires in the checking department and workshop and is widely used machinery, mould, tool, meter, and light industry.



PRODUCT INTRODUCTION

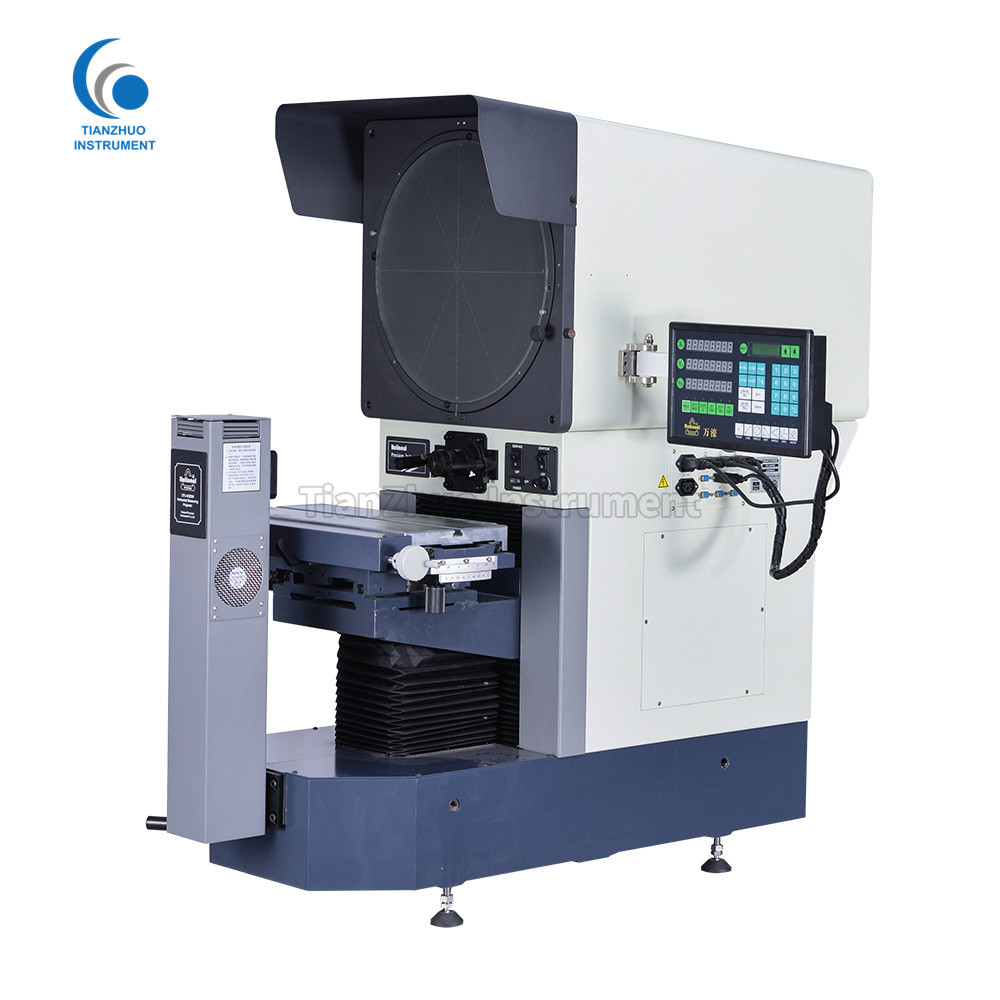

Long Stroke Horizontal Profile Projector, an ergonomic measuring instrument with reliable mechanical structure and high precision magnification, can effectively and efficiently inspect profile, section, surface and outline of complicated workpiece.

This instrument, which integrates optics, machinery and electronics, is able to sufficiently carry out direct measurement and comparative measurement for measured workpiece, such as stamping parts, gear, thread, and milling cutter, etc.

It is widely used in the fields of machine manufacturing, electronics, mold, meter, etc.



FEATURES

1. Horizontal profile projector

2. With reliable mechanical structure and high precision magnification

3. High precision

4. Easy to operate

5. Resolution of linear scale: 0.5um

6. Powerful Digital Readout to support easy and accurate measurement

7. Reliable and cost-effective

8. Precise and accurate

9. Low maintenance cost

10. Optional Proprietary software



SPECIFICATIONS



Model CPJ-3020W CPJ-4025W
X-axis Travel (mm) 200 250
Y-axis Travel (mm) 100 150
Worktable Size (mm) 400×150 450×200
Swing Range ±15° ±15° ( can be custom made to ±25°)
Resolution (μm) 0.5
Indication Error (mm) X, Y-axis: (2.5+L/100). Z-axis: 3.5+L/50 (L is the length of the measured object. Unit: mm)
Z-axis Travel (mm) 75 (Focusing) 100 (Focusing)
Weight (kg) 160 240
Dimension (mm) 1090×830×1010 1215×646×1210
Projector Screen Size (mm) ∅300 ∅400
Rotary range 0~360°
Resolution 1' or 0.01°
Lens (CPJ-3020W) Magnification 10× (Optional) 20× (Optional) 50× (Optional) 100× (Optional)
Field of view (mm) ∅30 ∅15 ∅6 ∅3
Working distance (mm) 77.7 44.3 38.4 25.3
Lens (CPJ-4025W) Magnification 5× (Optional) 10× (Standard) 20× (Optional) 50× (Optional) 100× (Optional)
Field Of View (mm) ∅80 ∅40 ∅20 ∅8 ∅4
Working Distance (mm) 93.7 103.9 95.1 65.7 35.0
Data Processing System Multi-functional DRO DC-3000
Illumination Transmission: 24V/150W halogen lamp. Reflection: 21V/150W halogen lamp.
Accessories Printer, edge detector, Measuring software M2D-CPJ, etc.
Power Supply: AC 100-240V 50/60Hz. Total Power: 450W
