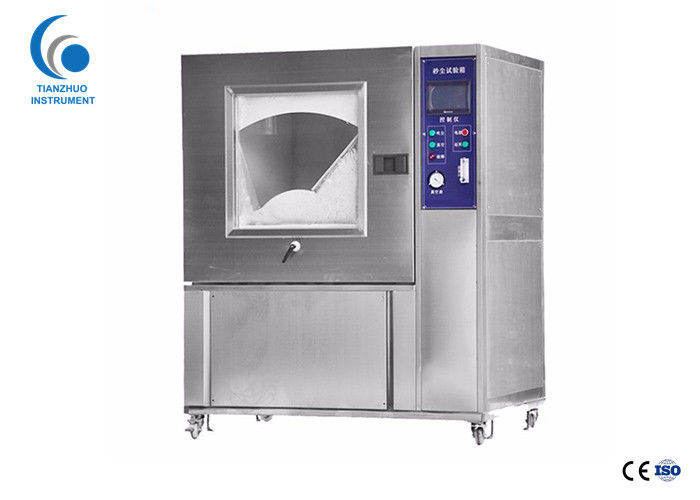

Moveable Dust Test Chamber / Dust Testing Equipment 800L Reasonable Structure

Moveable Dust Test Chamber / Dust Testing Equipment 800L Reasonable Structure

  • Moveable Dust Test Chamber / Dust Testing Equipment 800L Reasonable Structure
  • Moveable Dust Test Chamber / Dust Testing Equipment 800L Reasonable Structure
Moveable Dust Test Chamber / Dust Testing Equipment 800L Reasonable Structure
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-800
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Dust Testing Equipment The utility room capacity: 800L
Metal sieve  Standard Spacing: 50um Metal wire diameter: 75um
The utility  Room size: 90*90*100cm Structure: Reasonable Structure
External Material: Cold Rolled Sheet / SUS304 Stainless Steel Power supply: AC380V Or 220V ± 10%,50HZ
High Light:

sand test chamber

,

sand and dust testing

Moveable Dust Test Chamber / Dust Testing Equipment 800L Reasonable Structure



Dust Testing Equipment FEATURES



  1. The structure design of the test system is advanced and reasonable, in line with: GB2423, GB4706, GB4208, DIN
  2. The main functional components of the test box are equipped with world famous brand configuration, advanced and reliable technical principles, and the best control of noise and energy saving - its performance can replace similar foreign products.
  3. color touch screen man-machine interface, programmable controller, machine operation automation control.
  4. The outer shell of the equipment is made of cold-rolled steel plate with electrostatic spraying, and the inner liner is made of high-quality stainless steel plate.



Dust Testing Equipment SPECIFICATIONS



Model number TZ-800 TZ-1000 TZ-1500 TZ-2600
The utility room capacity (L) 800 1000 1500 2600
Technique
Characteristic
Metal sieve
standard spacing
50um
Metal wire diameter 75um
Talcum powderdosage 2Kg/m ² ~ 4Kg/m ²

Spray the powder

declines the

dust form

1 Decline the dust type freely:
the adoption leaves the heart breeze machine to blow
the sand dust to the box to take over 1/5 make it sink freely.
2. Blow the sand dust: The barometric type of bottom sprays the ash, three file pressures are adjustable
The utility
room size(cm)
D 90 100 100 120
W 90 100 100 120
H 100 100 150 180
Material Internal SUS304 # stainless steel
External Cold rolled sheet antirust coating processing or #SUS304
stainless steel (optional)
Control system Operator interface The liquid crystal display color touch screen controller or touch-tone LCD contrller(optional)

Operation

mode

program operation/ constant type operation
Enter PT-100 Sensor
power supply AC380V or 220V ± 10%,50HZ
Standard Two pieces of test material shelf, one instruction,
and one dust screen



Dust Testing Equipment APPLICATION



The equipment is suitable for electrical and electronic products, automobile and motorcycle parts, seals in the sand environment to prevent sand dust into the seals and shell of the test.To test the use, storage and transportation performance of electronic electrical products, automobile, motorcycle parts and seals in sand and dust environment.



Dust Testing Equipment ADVANTAGES


1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price.

3. Famous brands are adopted for key components to guarantee the performance and quality.



Service



1. Pre-service

♦ 24 Hours online service for your consult.

2. Middle service

♦ Do customer's request:

♦ Choose payment term you convienent.

♦ Promptly production and delivery,inform you in time.

3. After sale service

♦ 1 year warranty service and all life maintenance.

♦ Technical Egineer are avalible for oversea trainning.

♦ Remote control technical consult



Dust Testing Equipment Details
