Nickel Chromium Alloy Thermal Shock Test Chamber Durable With Copper Tube

Nickel Chromium Alloy Thermal Shock Test Chamber Durable With Copper Tube

  • Nickel Chromium Alloy Thermal Shock Test Chamber Durable With Copper Tube
  • Nickel Chromium Alloy Thermal Shock Test Chamber Durable With Copper Tube
Nickel Chromium Alloy Thermal Shock Test Chamber Durable With Copper Tube
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-LR Series
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Series: TZ-LR Series Product Name: Thermal Vacuum Chamber
Advantage: Excellent Performance And Durability Electric Heater: Nickel-chromium Alloy
Protection Switch: No-fuse Internal Capacity: 80-225L
High Light:

temperature cycling chamber

,

temperature shock chamber

Environment Simulation Temperature Thermal Shock Chamber (TZ-LR Series)



PRODUCT ADVANTAGES

1. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.
2. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
3. Famous brands are adopted for key components to guarantee the performance and quality.
4. We company established a sound quality assurance system and complete after-sales service guarantee system.
5. One-year free warranty period .


PRODUCT INTRODUCTION

1. Nickel-chromium alloy electric heater;
2. Internal spiral K-type refrigerant copper tube;
3. the original imported power-saving high efficiency compressor;
4. Slope type FIN -TUBE evaporator;
5. Original imported solenoid valve, drying filter, capillary and other refrigeration components;
6. Adopt air-cooled condenser;
7. High stability R502 environmental protection refrigerant is used as refrigerant;
8. The refrigeration system adopts single-stage compressor, which is fast and stable.
9. Multi-wing circulating fan is adopted in the heat and cold storage area to force air flow convection and improve uniform temperature effect.


SYSTEM DESCRIPTION

1. The system can be used for automatic cyclic shock or manual selective impact;
2. The temperature sensor PT100 transmits a signal to the touch programmable controller.
3. The high or low temperature mode impact can be set arbitrarily;
4. The internal action program is controlled by the PLC and the controller to prevent misoperation.
5. Automatic stop, circuit and warning signal are equipped in case of failure.
6. When setting high or low temperature separately, it can also be used for time control, the maximum time up to 999 hours;
7. The maximum cycle time (CYCLE) up to 999 times.


SAFETY PROTECTION SYSTEM

1. No-fuse protection switch (with leakage protection);
2. The control system has phase sequence protection and over-voltage and under-current protection;
3. Over temperature protection switch;
4. Refrigerating compressor overload protection device;
5. Compressor high and low voltage protection switch;
6. Each fan motor and wind gate motor are equipped with overload protection;


TECHNICAL PARAMETERS

Model TZ-LR80 TZ-LR150 TZ-LR225
Internal Capacity 80L 150L 225L
Internal Size(mm) 400*400*500 500*500*600 500*600*750
External Size(mm) 1600*1600*1850 1700*1700*1950 1700*1800*2150
Heating Chamber 150 ºC
Conversion Time 10 seconds
Temperature Recovery About 5 minutes
Cold-chamber -55
Impact Temperature -40~+150 ºC (-70~+150 ºC can be customized)
Temperature Deviation ±2ºC
Interior Material SUS304 Heat and cold resistant stainless steel plate
External material Cold rolled steel plate (Fine powder baking paint)
Weight (Kg) 1000 1200 1500

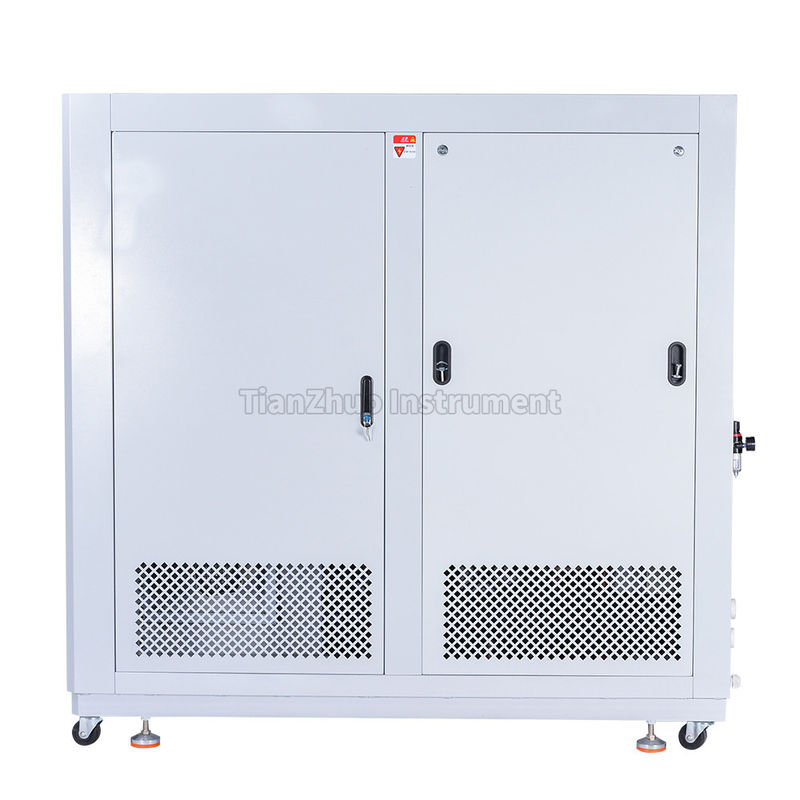

PRODUCT PHOTOS

Nickel Chromium Alloy Thermal Shock Test Chamber Durable With Copper Tube 0
