    Product Details:

    Place of Origin: Guangdong, China
    Certification: CE Complied
    Model Number: 1286

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Wooden case outside with pallet, in total 1-2CBM
    Delivery Time: 5-7 working days
    Payment Terms: L/C, T/T, Western Union, , MoneyGram
    Supply Ability: 500 sets/ month
    Contact Now
    Detailed Product Description
    Item: CMM Measuring Equipment X-axis: 800mm
    Y-axis: 1200mm Z-axis: 600mm
    Length: 2140mm Max.Loading: 1000Kg
    High Light:

    coordinate measuring system


    cmm measuring equipment

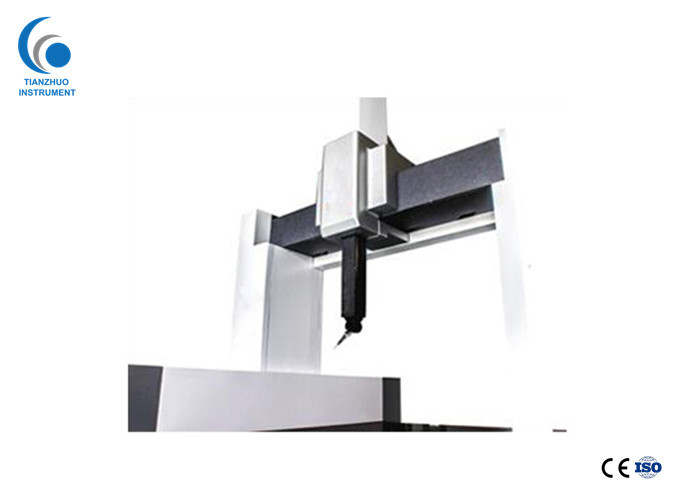

    Optical Coordinate Measuring Machine / Lab CMM Measuring Equipment


    CMM Measuring Equipment Function:


    1. The improved Z-axis anti-rotation air floatation with special design provides better anti-rotation ability for Z-axis, thus, reducing the rotation error of Z axis in the different height positions;
    2. The special low-friction gravitational balance cylinder, custom-made by Germany FESTO Company, could improve the stability of Z axis when running;
    3. Advanced non-linear spring system adopts imported accessories, which could greatly reduce any effect brought by minimal error from guide rail.
    4. Full digital air source inspection device enhance the sensitivity to air source wave inspection, and minimize any effect from air source towards measuring accuracy.
    5. The imported low-friction noise-free energy chain reduce the external force interference of the motion axis, and meanwhile, improving the flexibility and reliability of the motion axis.


    CMM Measuring Equipment Specifications:


    Model FLY 654 866 1286 12108 15108 20108
    Measuring Range(mm) X-axis 500 600 800 1000 1000 1000
      Y-axis 600 800 1200 1200 1500 2000
      Z-axis 400 600 600 800 800 800
    Length 1420 1740 2140 2495 2795 3355
      Width 1135 1420 1620 1902 1902 1902
      Height 2310 2760 2760 3093 3093 3093
    MPEe μm 1.5+L/350~
    Air Pressure MPa 0.6~0.8
    Max.Loading Kg 500 800 1000 1500 1600 1700
    Weight Kg 900 1300 1900 2800 3200 3900



    Measuring Machine Control System:

    Control system is a core part of the coordinate measuring machine. Its main functions are: to read the spatial coordinate values, the probe signal in real-time response and handling, measurement control system to achieve the necessary mechanical motion, real-time monitoring of the status of the coordinate measuring machine to ensure the safety and reliability of the whole system, there are also includes a coordinate measuring machine geometry error and temperature error compensation to improve the measurement accuracy of measuring machine.
    Maximize the development potential of the measuring machine, not only need to have a good control motors, drives, controllers optimal combination.
    Germany measurement machine control system to achieve high-performance control that best matches the measurement industry.


    CMM Measruement Software:

    Visual DMIS measuring software is mainly applied to the geometrical dimension measurement of products in the field of aviation, aerospace, automobile, mold and others, as well as the evaluation of form & position tolerance and surface shape of parts, which is very applicable to the software modeling, simulation, verification and other applications in the field of CNC machining equipment.

    Being passed the Physikalisch-Technische Bundesanstalt (PTB) algorithm certification, and adopted DMIS5.0 standard, Visual DMIS software launch three versions software to meet market needs, i.e. numerical control basic type, manual basic type, education version, as well as five special modules having measuring and evaluation function, i.e. CAD module, SPC module, gear module, worn module, pipe module and others, so as to further expand the function of the measuring machine.


    CMM Measuring Equipment Details


    Optical Coordinate Measuring Machine / Lab CMM Measuring Equipment 0

    Optical Coordinate Measuring Machine / Lab CMM Measuring Equipment 1
