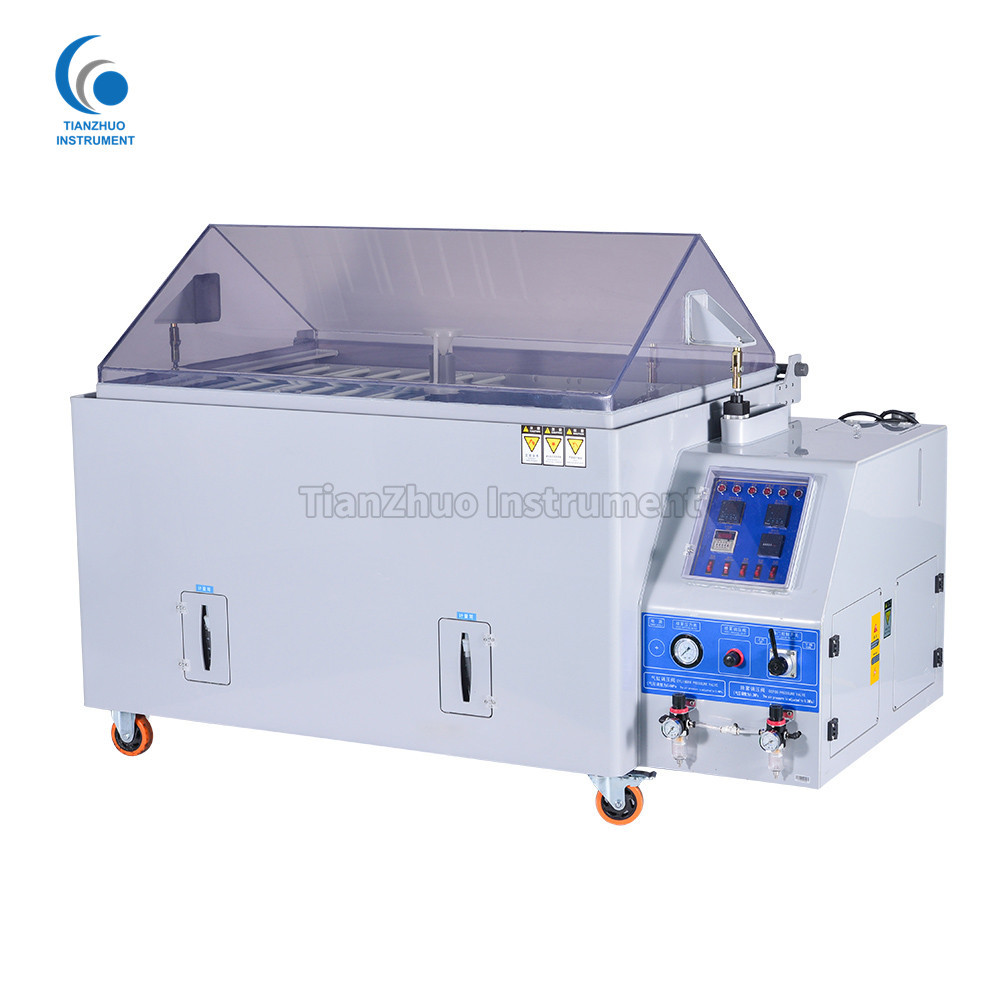

PID Control 120L Salt Spray Test Chamber For Hardware Neutral / Acid Test

PID Control 120L Salt Spray Test Chamber For Hardware Neutral / Acid Test

  • PID Control 120L Salt Spray Test Chamber For Hardware Neutral / Acid Test
  • PID Control 120L Salt Spray Test Chamber For Hardware Neutral / Acid Test
  • PID Control 120L Salt Spray Test Chamber For Hardware Neutral / Acid Test
  • PID Control 120L Salt Spray Test Chamber For Hardware Neutral / Acid Test
PID Control 120L Salt Spray Test Chamber For Hardware Neutral / Acid Test
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-D120
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Salt Spray Test Chamber Application: Doing Acid And Corrosion Resistant Upon Surface Treatment Of Products Of Components
Relative Humidity: ≥85%HR Temperature Resolution: 0. 5ºC
Temperature Deviation: ±1ºC Temperature Uniformity: 1ºC
Temperature Fluctuation: ±0.5ºC Spray Pressure: 1.00±0.01kgf/cm²
PH Value: Neutral 6.5 To 7.2 Acidity 2.8 To 3.5 Warranty Period: 12 Months
High Light:

salt spray test machine

,

salt fog test chamber

Salt spray testing chamber with 120L for neutral or acid test in hardware​




-----Introductions-----

Salt spray test box is specially used for testing various metal materials and products. After the surface treatment, such as painting, coating, electroplating, anodic film or anti-rust treatment, it is a kind of test equipment that simulates the natural environment and is in line with the actual conditions to basically effectively resist and understand the corrosion.




-----Features-----

The shell of the machine is made of high quality PVC board, with strong structure and no deformation;Temperature controller, digital display, PID control, accurate control, balance long-term operation without drift, error ±0.1℃;The glass fiber reinforced plastic (GFRP) inside the shell is molded by integral molding, resistant to corrosion, collision, easy to clean and no leakage.Precision glass nozzle, ensure no crystal blocking during operation;Unique air rod (no air source), easy to close the door, water seal structure, no salt spray overflow;The spray tower is equipped with conical disperser, with functions of guiding fog, adjusting fog amount and even fog falling.Double pressure high speed and over temperature protection, insufficient water level warning;Automatic/manual water feeding system is adopted, which can automatically/manually replenish the water level when the water level is low.




-----Specification & Techincal data-----

Model TZ-D60 TZ-D90 TZ-120
Volume(L) 108 270 480
Interior size(mm) 600*450*400 900*600*500 1200*800*500
Exterior size(mm) 1100*600*1100 1400*850*1250 1800*1050*1550
Weight(kg) 100 300 500
Max. power 1.8KW 4.5KW 6.5KW
Max. current 10A 15A 50A
Power Supply Conditions and Sources 1. AC 220V two-phase + protective ground; Voltage fluctuation range 10% V;
2. Frequency fluctuate range within 50±0.5HZ; Power supply in TN-S or TT mode
3. The grounding resistance of the protective ground wire is less than 4Ω.
4.The user is required to configure the corresponding capacity of air or power switch for the equipment at the installation site.
This switch must be used to independently control the device.
Installation Condition 1.Room with convection system, independent installation to prevent escaping salt spray from corroding surrounding equipment when the cover is removed.
2. The distance between the left, right and rear side panels of the test box and the wall shall not be less than 600mm, and the distance between the front and the wall shall not be less than 800mm.
Main Control Parameters Relative Humidity: ≥85%HR
Temperature Resolution:0. 5ºC
Temperature Deviation: ±1ºC
Temperature Uniformity:1ºC
Temperature Fluctuation:±0.5ºC
Spraying(m1/80cm²/h)1.0~2.0(Collect at least 16 hours, take the average)
Spray Pressure:1.00±0.01kgf/cm²
PH Value:Neutral 6.5 to 7.2 Acidity 2.8 to 3.5
Heating Rate
Test Room Temperature:RT→+50ºC≤50 min
Pressure Barrel Temperature:RT→+65ºC≤35 min




-----Applications-----

The test bed is suitable for all kinds of comprehensive salt spray tests on all metal and non-metal samples of suitable size and weight (as described in the text specification).

The test was conducted according to the following items:
Neutral salt spray test (NSS test, AASS acid salt spray test, CASS accelerated salt spray test)
Test method for surface treatment by saline spray






-----Package details-----

1. Wooden case with pallet outside.
2. The total volume is about 2-4 CBM.
3. Suitable for export, loading and unloading.
Packaging details are as follows:
