Precision Cnc Measuring Equipment / Optical Cnc Video Measuring Machine

Precision Cnc Measuring Equipment / Optical Cnc Video Measuring Machine

  • Precision Cnc Measuring Equipment / Optical Cnc Video Measuring Machine
Precision Cnc Measuring Equipment / Optical Cnc Video Measuring Machine
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: VMS-5040H
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Model: VMS-5040H Cnc Measuring Equipment Feature: Precision
Resolution: 0.5μm Indication Error: E1XY=(2.5+L/100)μm
Power: AC 100-240V 50/60Hz Certificate: CE Complied
Place Of Origin: Guangdong, China Name: CNC Video Measuring System
High Light:

cnc measuring equipment

,

cnc video measuring machine

Precision Cnc Measuring Equipment / Optical Cnc Video Measuring Machine



Cnc Measuring EquipmentIntroduction:



can complete all the measuring request and especially fit for the workshop and measurement lab,widely used in aviation, aerospace, defense, automotive, mold and electronics industries,etc.



Cnc Measuring Equipment Specifications:



Model VMS-5040H Cnc Measuring Equipment
Metal table size 786×636mm
Glass table size 570×470mm
Travel 470×370mm
Linear Scale Resolution 0.5μm
Indication Error E1XY=(2.5+L/100)μm
Video System 1/2" color CCD camera
0.7~4.5× zoom lens. Total magnification: 20~128×(19.5 inches display. Resolution: 1440*900)
Field of view: 11.1mm~1.7mm
Power supply: AC 100-240V 50/60Hz. Power: 1800W (excluding PC)
Dimension (L×W×H) 1200×1270×1870
Z-axis Travel(mm) 200 (Can be customized to 400mm)
Weight (kg) 850




Cnc Measuring Equipment Features:



  1. Ergonomic design makes it convenient to operate.
  2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
  3. Auto zoom feature (optional configuration), which is able to effectively measure the object with multi-magnification while doesn’t need to calibrate pixels.
  4. The seft-developed Measuring software has meet various requirements of customers.
  5. Adopts subpixel subdivision technique to improve resolving power of boundary.
  6. Equipped with joystick, which is also able to be programmed by software.
  7. SPC data processing system and large quantities of jig measurement.
  8. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.
  9. Adopts self-developed sophisticated embedded module control system installed within the instrument, which ensures a more stable operation.

Cnc Measuring Equipment Application:



Widely used in the field of electronics,instrument, and plastic, floor type CNC video measuring machine is mainly used in two dimension measuring and auxiliary three dimension measuring as well.



Cnc Measuring Equipment Advantages:


1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.

5. Free warranty for 1 year.



Cnc Measuring Equipment Details

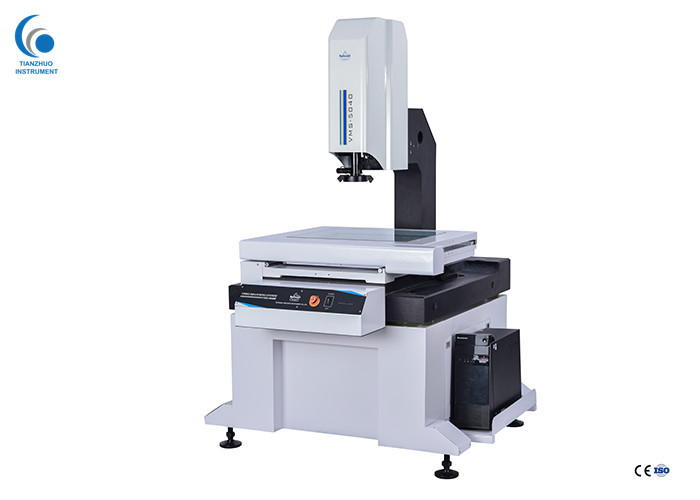

Precision Cnc Measuring Equipment / Optical Cnc Video Measuring Machine 0
