Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber

Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber

  • Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber
  • Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber
Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-800
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Water Spray Test Chamber Internal Dimensions: 800x800x800 Mm
Overall Dimensions: 1020x1360x1560 Mm Oscillating Tube radius: 400mm
Turntable Rotation Speed: Water Spray Test Chamber Water Pressure Control: Flow Meter
Observation Window: Large Viewing Window With Wiper Interior Material: Stainless Steel
High Light:

rain spray test chamber

,

rain test equipment

Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber



Rain Test Chamber INTRODUCTION



Rain Test Chamber simulates the watet drip environment to test the water resistance and sealing of the samples during storage, transportation and usage. It is widely applied to electrical and electronic products, lamps and lanterns, electrical cabinet, electrical components, automobile, motorcycle and its spare parts and other products. It provides the basis to improve the performance of the products.
This product uses the scientific design makes the device capable of realistic simulation drip, water spray, splashing water, environmental, water and so on. Into the overall control system and the use of inverter technology, making the rotation angle of rainfall in the test frame, spray angle and swing the pendulum swinging spray volume can automatically adjust the frequency.



Rain Test Chamber SPECIFICATIONS



Model TZ-800 Rain Test Chamber
Internal dimensions (mm) 800x800x800
Overall dimensions (mm) 1020x1360x1560
Oscillating tube radius 400mm
Turntable rotation speed 1r/min, or steeples speed regulating (optional)
Controller Programmable color display touch screen controller, PC Link with software, R-232 interface
Water pressure control Flow meter
Observation window Large viewing window with wiper
Water supply system Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving
Safety protection device Electric leakage, short circuit, motor overheating, over-current protection
Interior material SUS304 stainless steel
Power AC380V 50HZ
Spraying hole diameter φ0.4mm
Hole spacing 50 mm
Oscillating tube range ±45°, ±60°, ±90°, ±180°(theoretical value)



Rain Test Chamber FEATURES



  1. The equipment has its own water tank and recycled water, so there is no need to build a professional waterproof testing room.Built-in water tank high and low water level alarm monitoring to prevent water pump damage.
  2. The shell is made of domestic high quality steel plate, the surface is sprayed with baking paint, beautiful and durable.
  3. Automatic compressed air air drying rain board, can drain the excess water in the drip box, to avoid long time water fouling and plug pinhole.
  4. The outer case of the equipment is made of high quality stainless steel, the inner case and the turntable are all made of SUS304 stainless steel, with high corrosion resistance.



Rain Test Chamber ADVANTAGES


1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.

5. Free warranty for 1 year.



Rain Test Chamber Details

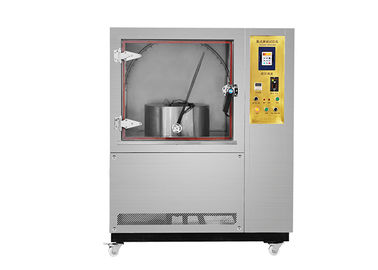

Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber 0

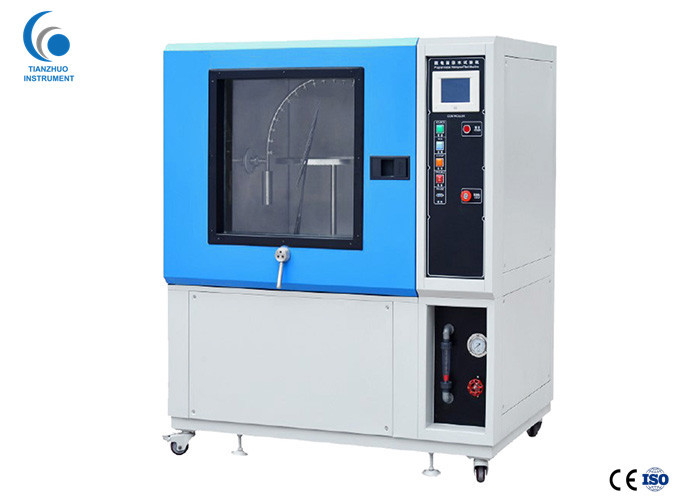

Stainless Steel Rain Test Chamber / Environmental Water Spray Test Chamber 1
