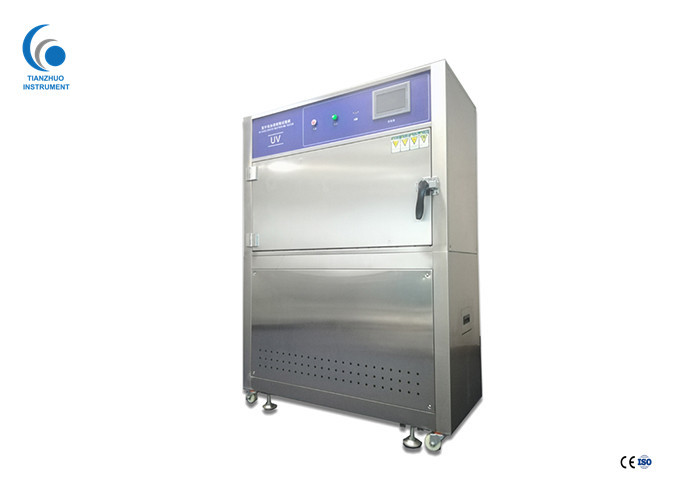

Standard UV Aging Test Chamber / Stainless Steel UV Testing Machine

Standard UV Aging Test Chamber / Stainless Steel UV Testing Machine

  • Standard UV Aging Test Chamber / Stainless Steel UV Testing Machine
  • Standard UV Aging Test Chamber / Stainless Steel UV Testing Machine
Standard UV Aging Test Chamber / Stainless Steel UV Testing Machine
Product Details:
Place of Origin: Guangdong, China
Brand Name: Tianzhuo
Certification: CE Complied
Model Number: TZ-1021
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: UV Aging Test Chamber Model: TZ-1021
Studio Size: W1150 X H400 X D400 Mm Outside Outside Dimension: W1400 X H1450 X D650 Mm
Temperature Range: RT+10~70°C Temperature Uniformity: ±2°C
High Light:

uv accelerated weathering tester

,

accelerated uv testing equipment

New Arrival UV Aging Test Equipment Climatic TZ-1020 Test Chamber



UV Aging Test Chamber​ INTRODUCTION:



The UV-accelerated aging test chamber, By simulating the ultraviolet radiation and condensation of natural sunlight, the experiment of accelerated weather resistance of materials was carried out with the fluorescent ultraviolet lamp as the light source.



UV Aging Test Chamber ADVANTAGES:


1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.

5. Free warranty for 1 year.



UV Aging Test Chamber SPECIFICATIONS:



Model TZ-1020 TZ-1021
Studio Size(mm) W1170*H450*D500 W1150 X H400 x D400
Outside Dimension W1300×H550×D1480 W1400 X H1450 x D650
Temperature Range RT+10~70°C
Temperature uniformity ±2°C
Temperature fluctuation ±0.5°C
Testing time 0~999H, adjustable
Materials Inside and Outside SUS#304 stainless steel
Humidity range ≥90%RH
Controller Korean TEMI programmable controller
Lamp power 40W/Piece
Test cycle setting Illumination, condensation and water spray test cycle is programmable
Irradiance 1.0W/m2
Wavelength ultraviolet light UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime)
Distance from sample to lamp 50±2mm (adjustable)

Centre distance between

the lamp

70mm
Standard Specimen Size 75×150mm or 75×3000mm (special specitications to be described in the contact)
Required water depth for water channel 25mm, automatically control
Protection system Overload short circuit protection, over temperature protection, water lackin
Power 220V/50Hz /±10% 4.5KW



UV Aging Test Chamber Application:



It is suitable for the aging test of non-metallic materials against sunlight and artificial light sources.



UV Aging Test Chamber Function:



1. The UV-accelerated aging test chamber uses imported UVA-340 fluorescent UV light as a light source to simulate the damage caused by sunlight, rain and dew. The UV weatherproof box uses a fluorescent UV lamp to simulate the effect of sunlight, and uses condensed moisture to simulate dew.

2. The UV box can reproduce the hazards of outdoor months or years in days or weeks. Types of hazards include: fading, discoloration, loss of light, powdering, cracking, turbidity, air bubbles, embrittlement, strength, decay, and oxidation. This machine contains a shower device.

3. The ultraviolet accelerated aging test chamber can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation, darkness and the like in a natural climate, and by recreating these conditions, merge them into a loop, and let it automatically perform the loop. frequency. This is how the UV aging test chamber works.

4. The equipment can automatically monitor the temperature of the blackboard and the temperature of the water tank. By configuring the irradiance measurement and control device (optional), the irradiance can be measured and controlled to stabilize the irradiance at 0.76W/m2/340nm or Specify the set value and greatly extend the life of the lamp.

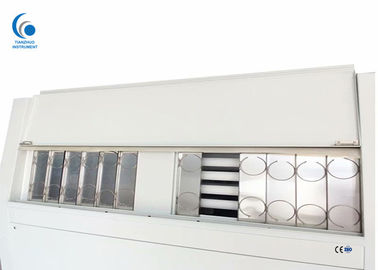

UV Aging Test Chamber Details
