|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Feature:||Straightness Granite||Other Name:||Tool Measuring Machine|
|X,Y,Z-axis Resolution:||0.5um||Accuracy(μm):||E1XY=(2.5+L/200) / E1XY=(3+L/200)|
|Camera:||1/2'' Color CCD Camera||Varifocal Lens:||0.7X-128X|
visual measurement system,
vision measurement system

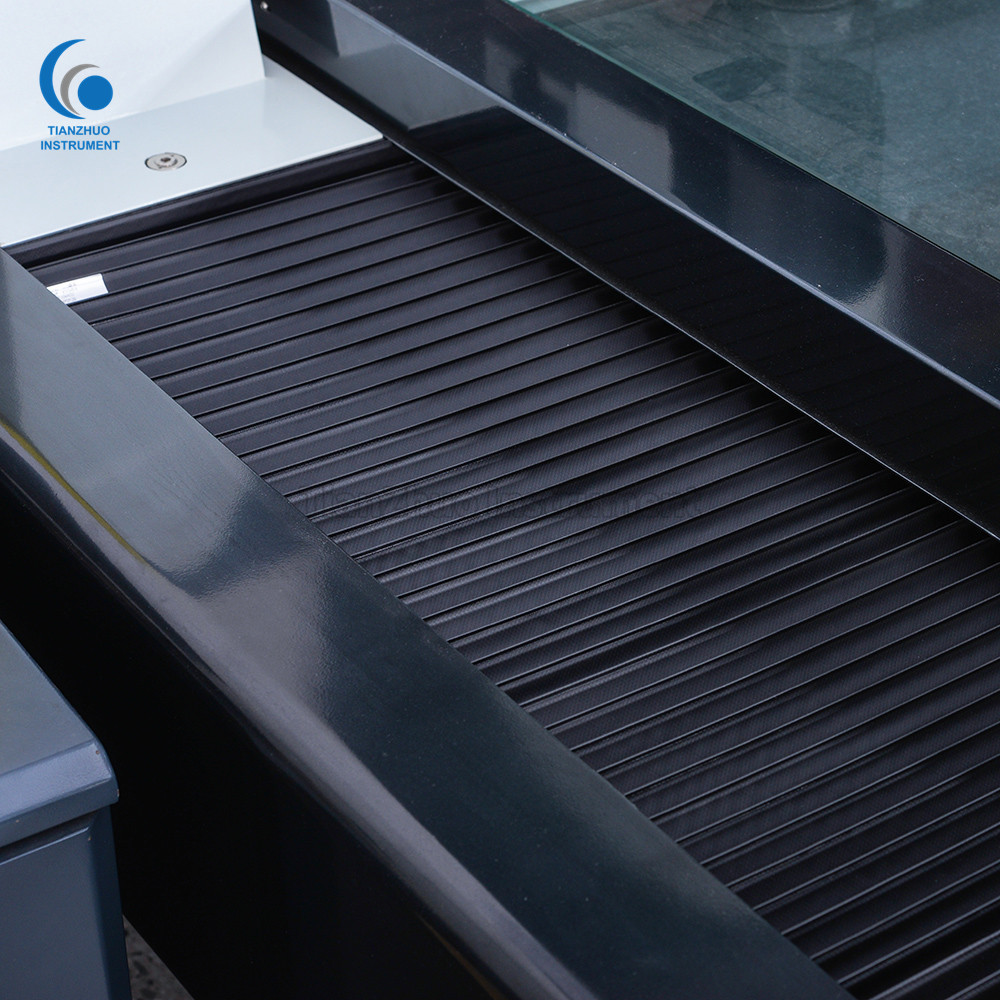

Optical Long Travel Vision Measuring Machine
The Standard series full automatic vision measurement machine is capable to use on the production line, offers powerful measuring instrument for mass production.
Three axis are using precise cross guide way to ensure high accuracy and stability.
The series, Long Stroke CNC Video Measuring Systems (Air Flotation ), adopt air Flotation technology and servo control technology with combination of our own automatic measuring software, QMS3D, making it possible to measure workpiece in large quantity efficiently and accurately. They are suitable for parts inspection and QC. It's widely used in machinery, electronics, automobile, hardware, plastic and tooling, etc.
1. Long stroke contributes to wide measuring range.
2. The self-developed measuring software QMS3D has meet various requirements of customers.
3. With features like auto focusing, auto edge finding, powerful programming, and auto measuring, etc.
4. Adopts subpixel subdivision technique to improve resolving power of boundary.
5. Equipped with joystick, which is also able to be programmed by software.
6. SPC data processing system and large quantities of jig measurement.
7. X, Y, Z-axis all adopt servo control system - Quick positioning with high precision, and stable operation.;
8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for complicated workpiece.
9. Perfect straightness granite, ideal flatness grass, and frictionless and wearproof granite guide rail.
10. Detects the measured workpiece's specific location by laser indicator, which is convenient to position and operate.
|Glass table size (mm)||640×940||640×1070||1208 × 885||1408×1085||1708 × 1285|
|Z Axis Travel(mm)||150||200|
|Rated Power||1000W(Computer Excluded)||1800W(Computer Excluded)|
|Video System||Camera||1/2'' Color CCD Camera|
|Total Magnification||20-128X(19.5Inches Display . Resolution:1440*900)|
|Power Supply||AC 100-240V 50/60Hz|
|Temperature||20±2ºC<1ºC/h <2ºC/24h <1ºC/m|
|Accessories||1.0Xlens Cone(Standard)||0.5Xlens(Optional)||Working Distance(mm)|
|Additional Less||Magnification||Object View(mm)||Magnification||Object View(mm)|
