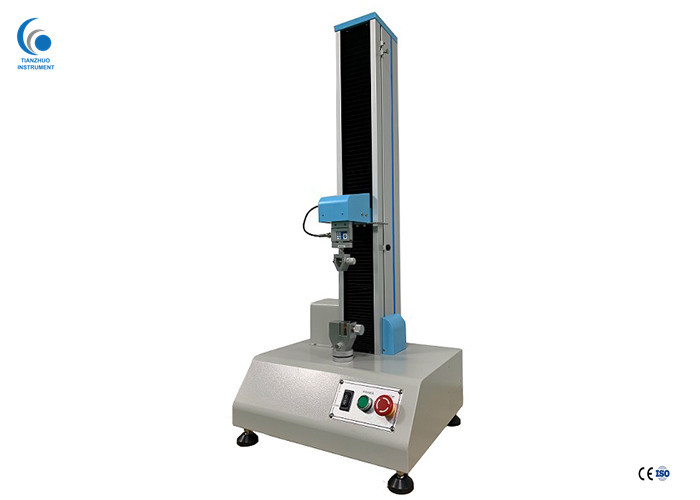

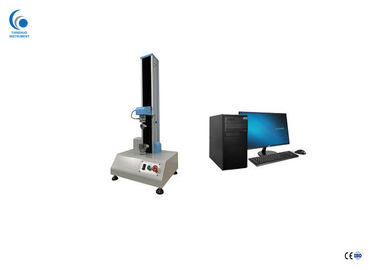

Tensile Test Using Universal Testing Machine / Tensile Testing Equipment

Tensile Test Using Universal Testing Machine / Tensile Testing Equipment

  • Tensile Test Using Universal Testing Machine / Tensile Testing Equipment
  • Tensile Test Using Universal Testing Machine / Tensile Testing Equipment
Tensile Test Using Universal Testing Machine / Tensile Testing Equipment
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-D100
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Tensile Test Using Universal Testing Machine Capacity: 10N、20N、50N、100N、200N、500N、1000N(Choose A Set)
Sensor: Model S High Precision Sensor Display: Computer Display Mode
Power Unit: Kgf、gf、N、kN、lbf Length Unit: Mm、cm、Inch
The Experimental Speed: 1—500mm/min(adjustable) Force Accuracy: ±1%
High Light:

computerized universal testing machine

,

tensile strength testing machine

Tensile Test Using Universal Testing Machine / Tensile Testing Equipment

Tensile Test Using Universal Testing Machine  Application:

Tensile Test Using Universal Testing Machine is widely used in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.Applied in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.

Tensile Test Using Universal Testing Machine Software Description:

Software support: simplified Chinese, traditional Chinese, English support, 3 types: SI international standard units, kg-cm units, lb-inch British system units, 6 kinds of commonly used units: n-mm-mpa, kn-mm-mpa, gf-cm-kgf/cm2, kgg-cm-kgf /cm2, lb-inch-kpsi, kp-inch-kpsi, easy to switch units. Meet the use of different regional standards.

Tensile Test Using Universal Testing Machine SPECIFICATIONS:


ModelTZ-D100 Tensile Test Using Universal Testing Machine
Power unitkgf,gf,N,kN,lbf
Length unitmm,cm,Inch
Stress unitMPa,kPa,kgf/cm2,lbf/in2
Stroke resolution1/200,000
Force accuracy±1%
The experimental speed1—500mm/min(adjustable)
effective travel450mm
Test space120mm
Stop modeOverload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset
outputmicrowriter
motor driveServo motor + servo driver
Mechanical transmissionImported synchronous wheel, synchronous belt + high precision ball screw
The machine power200W
The machine size(W*D*H)500mmx420mmx1150mm
Use the power supply220V 50Hz
The standard configurationA set of fixtures, a power cord, a manual



Tensile Test Using Universal Testing Machine  Function:

1. The base is supplemented by aluminum alloy profile column treated by advanced plastic spraying;
2. Adopt high precision, no gap ball screw and timely gauge belt as the guarantee of transmission system accuracy;
3. Fully computerized data collection and motion control;
4. Test software under the Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or edit the test method according to their own actual needs;


Tensile Test Using Universal Testing Machine  Details

Tensile Test Using Universal Testing Machine / Tensile Testing Equipment 0
