|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||negotiation|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Name:||Optical Measurement Equipment||Metal Table Size (mm):||404×228|
|Travel (mm):||200×100||Camera:||1/3”color CCD Camera|
|Auto Zoom Lens Magnification:||0.7X~4.5X||Magnification:||26.6~171X|
|Object View:||8.1mm~1.3m||Power:||AC 100-240V 50/60Hz|
length measuring machine,
computer measuring machine
Universal Optical Measurement Equipment , Image Manual Vision System
Optical Measurement Equipment INTRODUCTION:
This instrument is a high precision and high efficiency measuring machine.electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
Applied mainly for 2D measurement and can support some specific 3D measurement as necessary.
Optical Measurement Equipment SPECIFICATIONS:
|Model||WVMS-2010G Optical Measurement Equipment|
|Metal table size (mm)||404×228|
|Video System||1/3”color CCD camera|
|Auto zoom lens magnification: 0.7X~4.5X|
|Object view: 8.1mm~1.3m|
|Surface lighting and transmission lighting both adopt adjustable LED|
|Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm)|
|Consistency error of origin in different sections||E0≤30 (every 100mm displacement in Z axis)|
|Z-axis travel (mm)||200 (can be customized to 400)|
Optical Measurement Equipment Application:
It is widely used in the fields of machine, electronics, instrument, plastic and so on.
Optical Measurement Equipment FEATURES:
1. Various forms of light source, ensure to meet the diversity of measurement needs.
2. Height auxiliary measurement can be achieved.
3. Effectively support data processing, data display, data input, and data output.
4. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.
1. Silver bag inside
2. Wooden case with pallet outside
3. Total volume is arount 1-2CBM
4. Suitable for exporting, suitble for loading and unloading

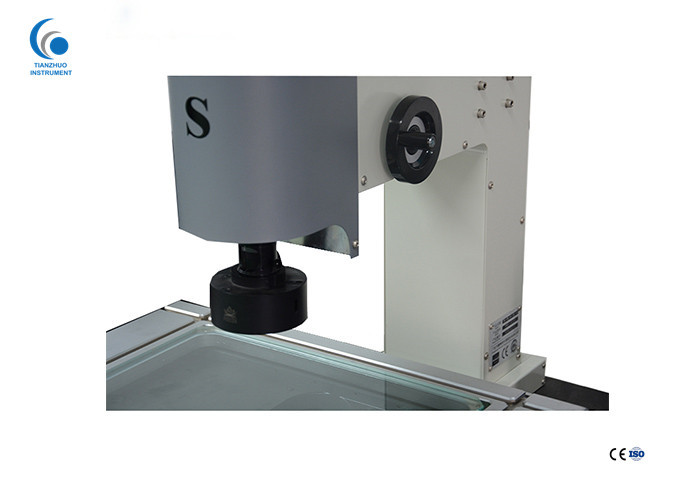

Optical Measurement Equipment Details
