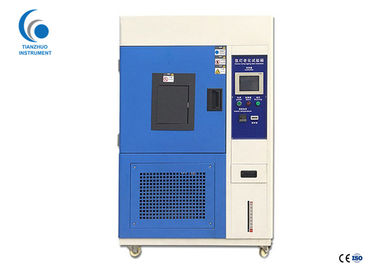

Weathering Resistance Xenon Test Chamber For Sunlight Simulated Testing

Weathering Resistance Xenon Test Chamber For Sunlight Simulated Testing

  • Weathering Resistance Xenon Test Chamber For Sunlight Simulated Testing
  • Weathering Resistance Xenon Test Chamber For Sunlight Simulated Testing
Weathering Resistance Xenon Test Chamber For Sunlight Simulated Testing
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ -XD-225
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Xenon Test Chamber Inner size: WHD60*75*50cm
External size:: WHD115*195*115cm Power: 6000w
Weight: 300kg Application: Sunlight Simulated Testing
Temperature Range: 0ºC~80ºC, Adjustable Humidity Range: 30%~98%R.H
High Light:

xenon arc test chamber

,

accelerated aging chamber

Weathering Resistance Xenon Test Chamber For Sunlight Simulated Testing



Xenon Test Chamber Introduction



1. Environmental simulation and accelerated testing can be provided for scientific research, product development and quality control.

2. It can be used for the selection of new materials, improvement of existing materials or the change test of durability after the change of material composition.

3. The changes caused by material exposure to sunlight under different environmental conditions can be well simulated.



Xenon Test Chamber  SPECIFICATIONS:



Model TZ-XD-80 TZ -XD-150 TZ -XD-800 TZ -XD-1000

Inner size: WHD

(cm)

40*50*40 50*60*50 100*100*80 100*100*100

External size:

WHD(cm)

105*185*115 105*185*115 155*230*145 155*230*165
Xenon lamp light quantity 1PCS 1 PCS 3 PCS 3 PCS
Power (w) 4500 5500 13500 14000
Weight (kg) 230 230 550 680
Temperature and humidity uniformity ± 2°C; ± 3%RH
Temperature range 0ºC~80ºC, adjustable
Humidity range 30%~98%R.H
Rainfall time 1~9999min, adjustable
Rainfall cycle 1~240min,interval is adjustable
Wavelength 290nm~800nm
Xenon lamp light Xenon long-arc lamp, 1.8KW±10%, 290-800nm, 1200W/m2
Box material Stainless Steel SUS304#
Control and cooling system Korea TEMI programmable controller



Xenon Test Chamber Application:



Xenon Test Chamber is Suitable for electrical and electronic, automobile and motorcycle parts, plastics, rubber, coating, paint and other parts and other industries, to simulate the changes of materials exposed to sunlight under different environmental conditions.



Xenon Test Chamber Function:



  1. Full spectrum xenon lamp.
  2. Test chamber air temperature control system.
  3. Irregular shape flat product rack for easy product placement
  4. The original imported Xenon arc lamp.
  5. The installation is easy to use and basically does not require daily maintenance features.
  6. The service life of the xenon arc tube depends on the level of irradiance used. The life of the lamp is generally 1600 hours. Lamp replacement is quick and easy, and long-lasting filters provide the protection needed to maintain the spectrum.



About US



Huizhou Tianzhuo Chuangzhi Instrument Equipment Co., Ltd. is a company specializing in the development, production and sales of precision testing instruments for environmental and optical integration. Since its inception, the company has joined the R&D team's technology and development results, which has laid a solid foundation in optics, environment and related technologies, and has introduced a number of practical and popular instruments in the industry.

Over the years, the company's technology and R&D innovation capabilities have earned a reputation in the industry, ensuring technological advantages and customer service and commitment. We always adhere to the production and supply of high quality but reasonably priced products, and our extensive service network enables our excellent products to be delivered to our customers in a timely and timely manner. The excellent cost performance and considerate after-sales service have established a good brand image for the company and won wide recognition from Chinese and foreign customers.
