Programmable Environmental Simulation Chambers , 80L Constant Temperature Humidity Chamber

Programmable Environmental Simulation Chambers , 80L Constant Temperature Humidity Chamber

  • Programmable Environmental Simulation Chambers , 80L Constant Temperature Humidity Chamber
Programmable Environmental Simulation Chambers , 80L Constant Temperature Humidity Chamber
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW80
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Model: TZ-HW80 Other Name: Environmental Test Chamber
Warranty: 1 Year Suitable For: Testing Various Products Or Materials
Touch Controller: Programmable Internal Volume(L): 80
High Light:

laboratory humidity chamber

,

temp humidity chamber

Environmental Test Chamber / Temperature Humidity Test Chamber (TZ-HW80)

Climatic Chamber Used,Environmental Test Chamber,Temperature Humidity Test Chamber is for testing material heat, cold, dry resistance, humidity resistance.Suitable for electronics, electrical appliances,Communications, instrumentation, vehicles, plastic products, metal, food, chemical,building materials, medical, aerospaceand other products.



PRODUCT ADVANTAGES

1. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.

2. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.
5, One-year free warranty period .


PRODUCT INTRODUCTION

This product is suitable for testing various products or materials, household electrical appliances, instruments, components and other electrical, electronic, automobile, motorcycle products under high temperature, low temperature, humidity environment conditions, for various scientific research institutions and factories and mines center test room to do reliability test.


PRODUCT FEATURE

1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.
7. The glass window is equipped with high-brightness fluorescent lamp, allowing the user to observe the conditions inside the test chamber at any time.
8. Use the multi-wing blower to provide strong air circulation, avoid any dead angle, and make indoor temperature distribution evenly.
9. The door sealing strip is made of high and low temperature resistant silicone rubber with good sealing performance.


TECHNICAL PARAMETERS




TECHNICAL PARAMETERS



Model TZ-HW80
Internal Volume(L) 80L
Dimensions Studio Size(mm) 400*400*500
Standard Machine Size(mm) 900*902*1350
Small Vertical External Size(mm) 1000*750*1650
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Standard Weight (Kg) About 280
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"

Test Method Completely stationary test mode for the object to be measured.
This method is the first choice for testing, research and semiconductor
screening of electronic components.
Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%~100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

+23 °C and +80 °C



PRODUCT PHOTOS

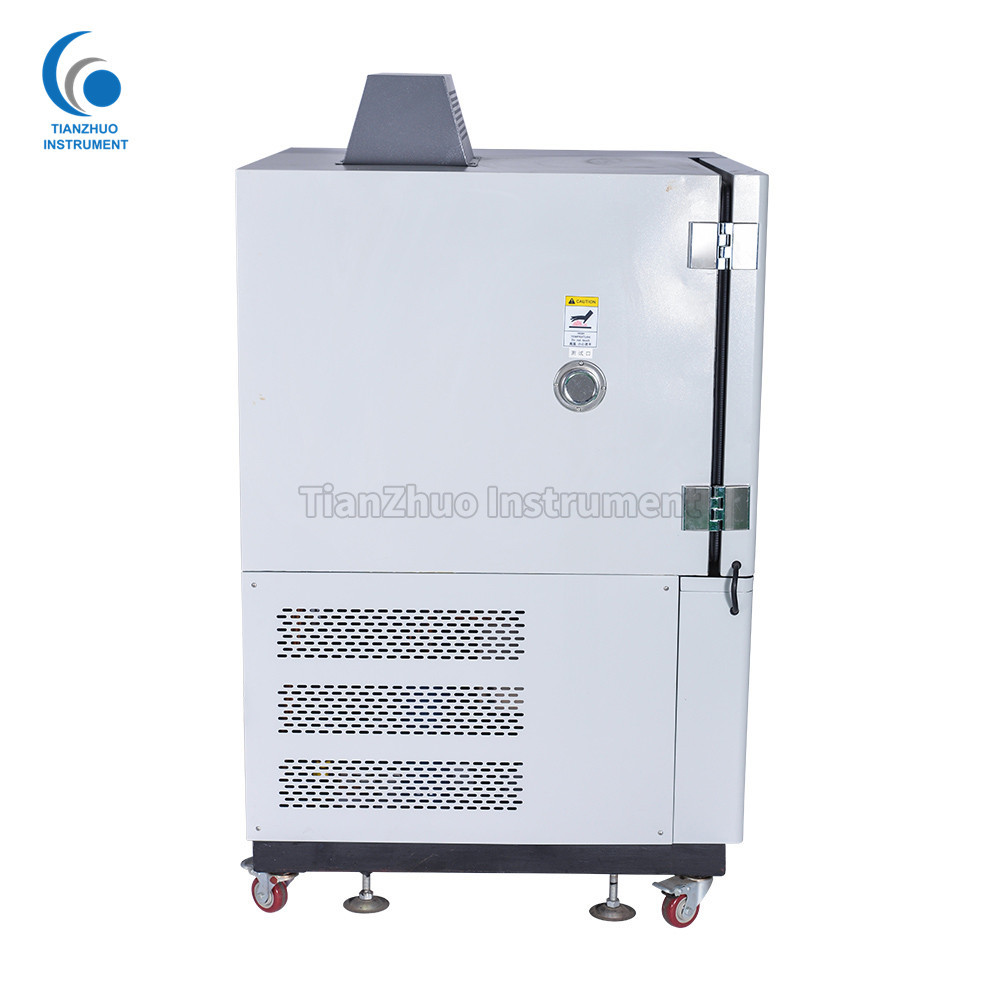

Programmable Environmental Simulation Chambers , 80L Constant Temperature Humidity Chamber 0
