Corrugated Box Paper Core Compression Strength Tester 100mm / Min Return Speed

Corrugated Box Paper Core Compression Strength Tester 100mm / Min Return Speed

  • Corrugated Box Paper Core Compression Strength Tester 100mm / Min Return Speed
Corrugated Box Paper Core Compression Strength Tester 100mm / Min Return Speed
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Keyword: Carton Compressive Strength Testing Machine Test Speed: (10 ± 3) Mm / Min (stacking Code: 5 ± 1mm / Min)
STANDARDS: GB/T 4857.4、ISO 12048 、ISO2872、 ISO2874、QB/T 1048 Pressure Measurement Range: 100~50000N
Data Analysis: 7in Touch Screen, Thermal Printing Appliacation: Paper Products
High Light:

corrugated box compression testing machine

,

compressive strength testing machine

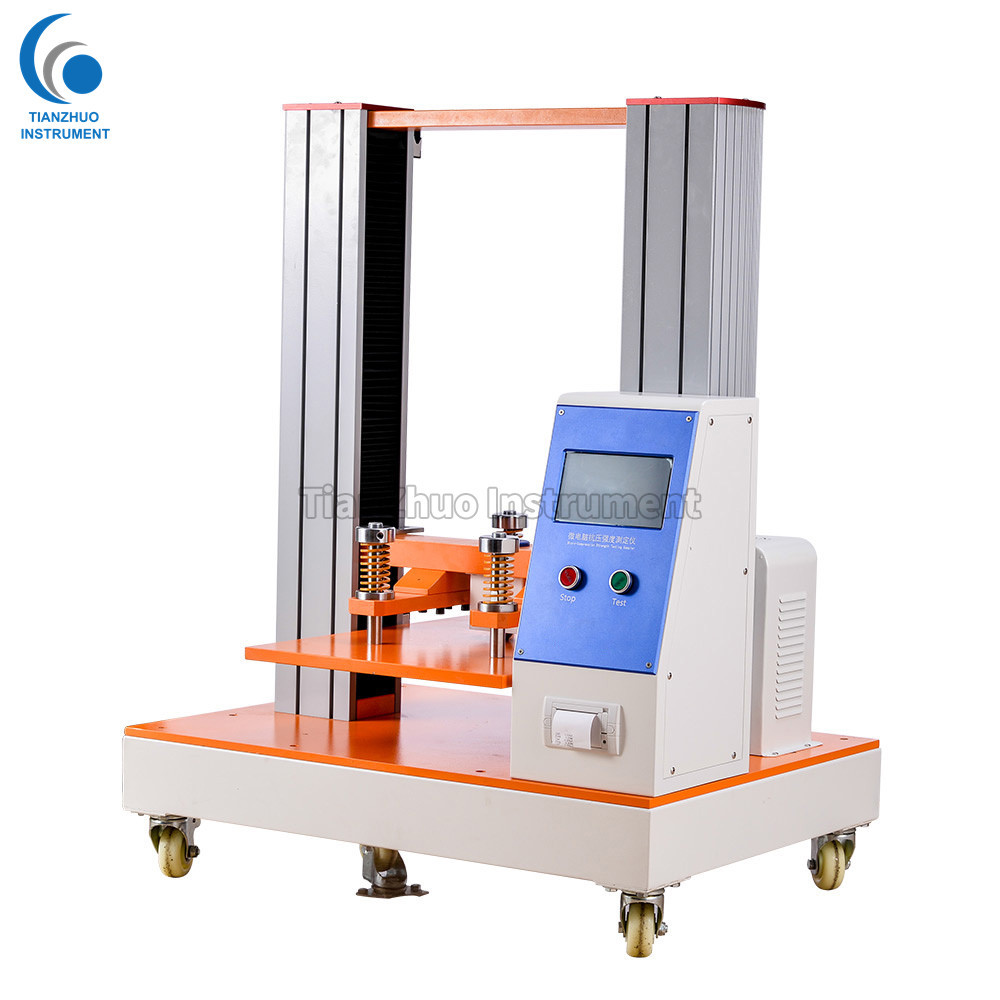

Corrugated box compression and stacking strength tester

Packaging testing instruments is applying to do the Ring Crush Test (RCT), Edge Crush Test (ECT). Flat Crush Test (FCT), Pin Adhesion Test(PAT) of paper, board. It is an ideal testing equipment for paper making, packaging, quality inspection department, etc industry.



APPLICATION

Corrugated box compression and stacking strength tester is a testing machine for detecting the compressive strength and stacking strength of the carton. Simultaneously detect paper products such as small carton boxes, medium-sized cartons, large cartons, honeycomb cartons, etc.



STANDARDS



GB/T 4857.4,ISO 12048 ,ISO2872, ISO2874,QB/T 1048



TECHNICAL PARAMETERS



Item Carton Compressive Strength Testing Machine

Pressure Measurement

Range

100~50000N
Sensor Analysis Accuracy 0.3%
Test Speed (10 ± 3) mm / min (stacking code: 5 ± 1mm / min)
Return Speed 100mm/min
Unit Interchange N/Lbf /kgf interchange
Data Analysis 7in touch screen, thermal printing
Test Function Determination of compressive strength, determination of stacking strength, determination of strength
Data Saving 99 groups of data can be saved at the same time
Computer Control It can be equipped with computer-specific analysis software, curve detail analysis, with special programmable file management analysis report, A4 printing
Measurement Size 600*400*600mm/(800*600*800)mm
1000*800*1000mm/(1200*1000*1200)mm
1200*1200*1200mm/(1500*1500*1500)mm
Other sizes can be customized according to customer requirements








Corrugated Box Paper Core Compression Strength Tester 100mm / Min Return Speed 0
