1 - 9999 / Min High Temp Oven , Electric Industrial Oven With Observation Window

1 - 9999 / Min High Temp Oven , Electric Industrial Oven With Observation Window

  • 1 - 9999 / Min High Temp Oven , Electric Industrial Oven With Observation Window
1 - 9999 / Min High Temp Oven , Electric Industrial Oven With Observation Window
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: high temp
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Item: Industrial Oven  Advantage: Excellent Performance
Warranty: 1 Year Insulation Layer: Superfine Insulation Cotton
Uniformity: ±3%ºC Fluctuation: ±2ºC
High Light:

vacuum drying oven

,

electric drying oven

Customized High Temperature Industrial Oven 

Movable pull net stand could increase store space of articles interior.
Double-layer tempering glass observation window in the middle of the door is easy for observing the heating situation in the working room at any time.



PRODUCT ADVANTAGES

1. Excellent performance and complete varieties, which can be customized according to customer's needs and price concessions.

2. Independent product development, strict process requirements, beautiful appearance.

3. Key components are manufactured Independently .

4. We company provide a perfect quality guarantee system.

5. One year free warranty, 7×24 hours service guarantee system.



PERFORMANCE

1. Wide temperature control range, meet various needs of customers.

2. The door is equipped with an observation window with lights, easier to observe the test status of test samples.



TECHNICAL PARAMETERS

ACCEPT CUSTOMIZATION ACCORDING TO CUSTOMER REQUIREMENTS

Model TZ -136L TZ-225L
Capacity 136L 225L
Power 1.5KW 3.0 KW
Internal Size(mm) 450×550×550 (D×W×H) 500×600×750 (D×W×H)
Overall Size(mm) 620×780×730 (D×W×H) 720×880×930 (D×W×H)
Temperature Range RT+0ºC~+250ºC(450ºC can be customized)
Uniformity ±3%ºC
Fluctuation ±2ºC
Interior Material Mirror stainless steel plate or wire drawing plate
External material Cold-rolled steel with paint spray treatment
Insulation Layer Superfine insulation cotton
Heating Efficient and durable heat pipe
Circulation System Single cycle
Control Touch-tone controller with timing function
Vent Open side
Timing 1-9999/min
Protect System Over-temperature protection, overload protection device
Power Supply 380V


STANDARDS

This series has a wide temperature and humidity adjustment control range, which can meet the requirements of national standard GB/T 2423.1, 2 "Electrical and electronic products basic environmental test procedures test:

High temperature test method".

This type implements the national standard GB 10592 "Technical Conditions for High Temperature Test Chamber".


PRODUCT PHOTOS

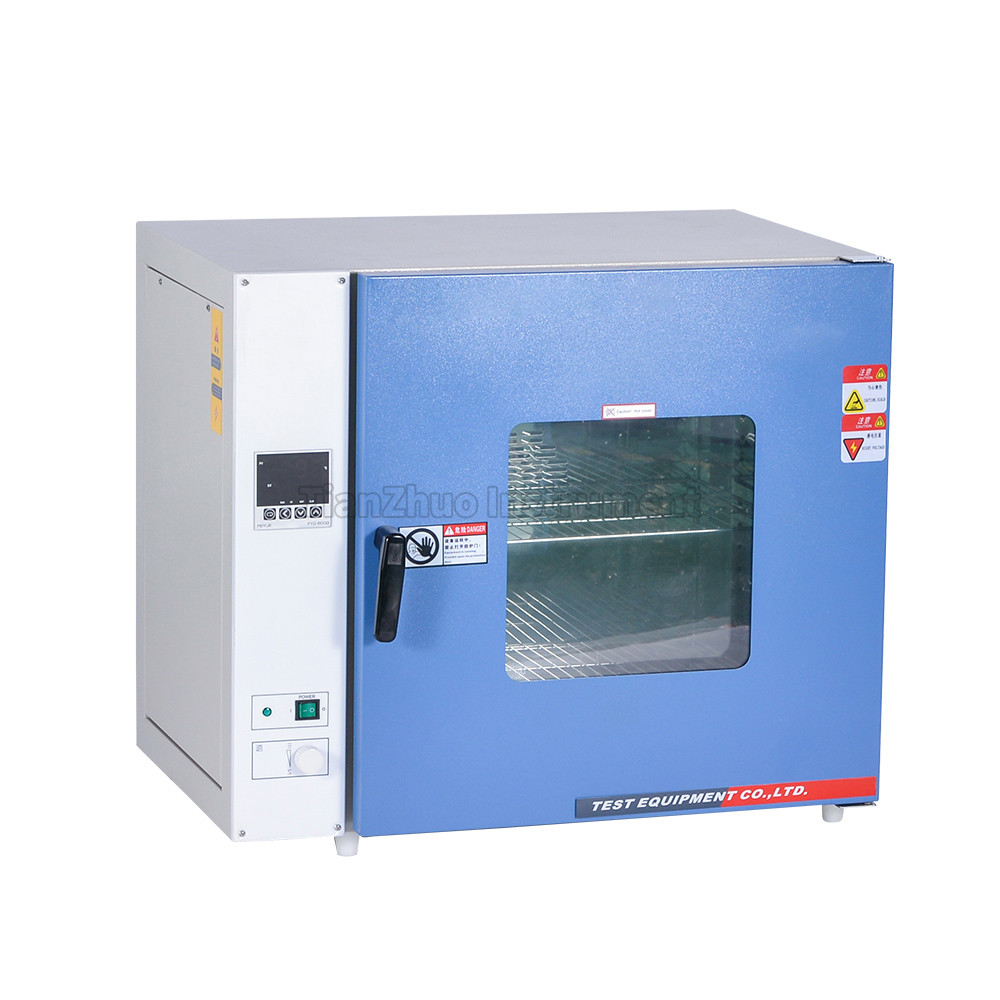

1 - 9999 / Min High Temp Oven , Electric Industrial Oven With Observation Window 0
