|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Model:||VMS-2515H||Product Name:||CNC Video Measuring System|
|Feature:||Auto Focusing||Linear Scale Resolution:||0.5μm|
|Weight (KG):||146/168/266||Field Of View:||11.1mm~1.7m|
cnc vision measuring system,
cnc video measuring machine

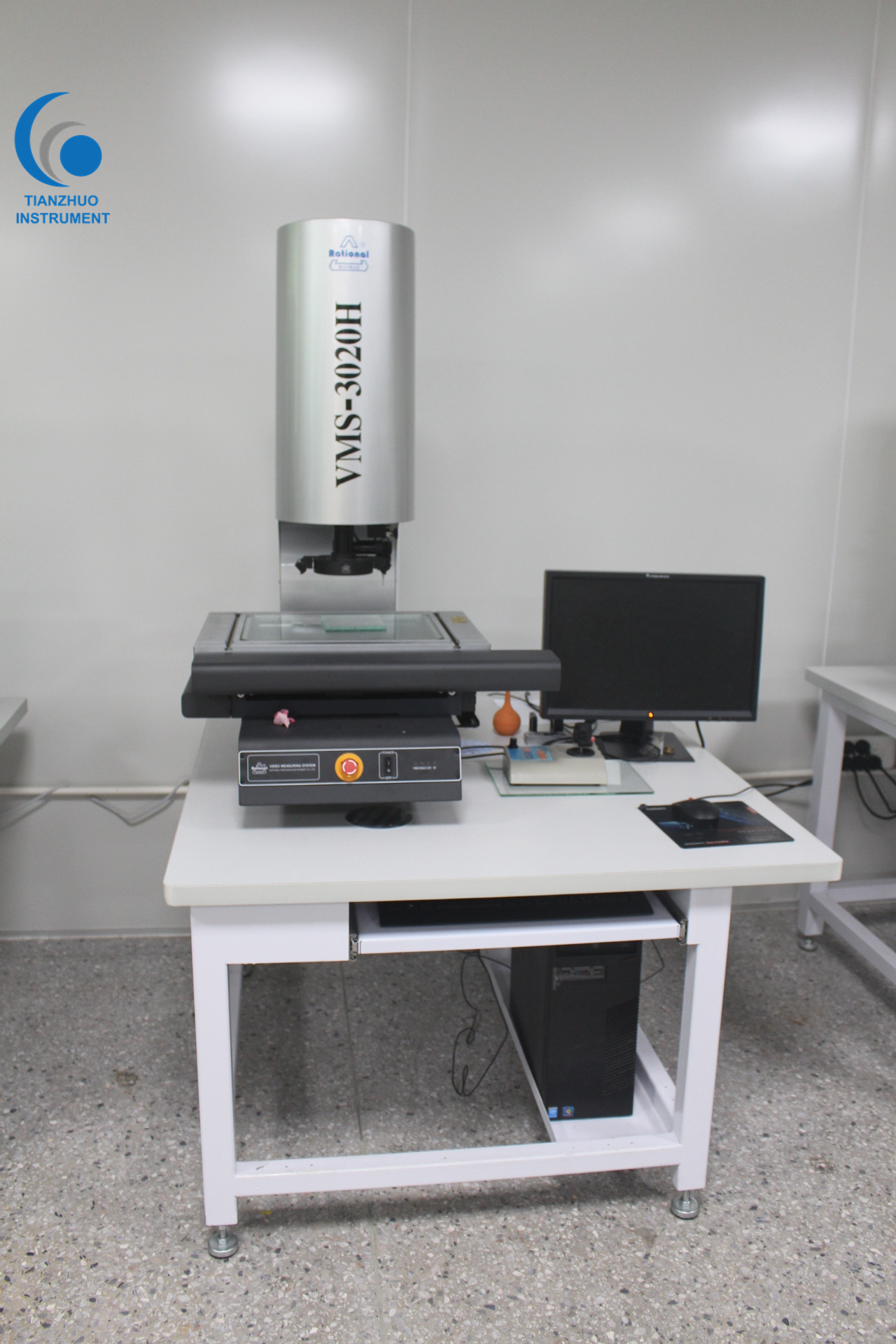

CNC Video Measuring System H Series
High resolution color CCD , combined with multiple lens and illumination solutions ensure the clear and precise image.
Equipped with high-performance linear scales, high accuracy and stability.
The series of machines have been effectively modified with the practical application experiences and valuable feedback from clients since the initial model was launched 13 years ago.
It won the admiration from customers world wide.You cannot afford to miss this if you are looking for a reliable, efficient and cost-effective measuring system.
1. The powerful proprietary measuring software ,meet various requirements of customers.
2. Auto focusing, auto edge finding, powerful programming, and auto measuring.
3. Adopts subpixel subdivision technique to improve resolving power of boundary.
4. Installed with joystick, which is also able to be programmed by software.
5. SPC data processing system and large quantities of jig measurement.
6. X, Y, Z axes all adopt servo control system - Quick positioning ,high precision, and stable operation.
7. Adopts self-developed sophisticated embedded module control system,ensures a more stable operation.
8. Programmed constant current drive for surface cold light source in the 5 rings and 8 zones, which is suitable for sophisticated workpieces.
9. Detects the measured workpiece's specific location by laser indicator, which is easier to operate.
|Working Table||Metal table size (mm)||450×280||500×330||606×466|
|Glass table size (mm)||306×196||350×250||450×350|
|Linear Scale Resolution||0.5μm|
|Indication Error||E1XY=(2.5+L/100)μm (L is the length of the measured object. Unit: mm)|
|Consistency Error Of Origin In Different Sections||E0≤20 (every 100mm displacement in Z axis)|
|Z-axis Travel (mm)||150 (Can be customized to 300mm)|
|Accessories||1X lens tube (Standard)||0.5X lens tube (Optional)|
|Additional Lens||Magnification||Field of view (mm)||Magnification||Field of view (mm)||Working Distance (mm)|
|Brand PC (Standard), joystick (Standard)|
|Video System||1/2" color CCD camera. Brand zoom lens (Optional)|
|Zoom lens magnification: 0.7X~4.5X. Total Magnification: 20~128X (Resolution: 1440*900)|
|Field of view: 11.1mm~1.7m|
|Power Supply: AC 100-240V 50/60Hz. (Customized) Power: 250W (Excluding PC)|
