Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-80ZY+
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Consumed Power (KVA): 2.2 Model: TZ-80ZY
Standard: GB/T2423.10 Power Supply Voltage (V/Hz): 220/50±5%
Controller Body Size(mm): 500×380×1050 (L×W×H) Table Body Size(mm): 1200×500×450 (L×W×H)
High Light:

vibration testing machine

,

vibration table test equipment

Factory Supply Electromagnetic Vibration Table / Vibration Testing Equipment (TZ-80ZY+)



BRIEF

TZ-80ZY/+ type vibration table is electromagnetic sweeping three-axis vibration table developed to meet the market demand. It has the characteristics of three-direction vibration and easy operation. It is a powerful and cost-effective vibration table widely used in national defense, aerospace, communications, electronics, automotive, home appliances and other industries.
This type of equipment is used to detect early faults, simulate actual working conditions and examine structural strength test.



PRODUCT ADVANTAGES



Imported LCD color touch control system, human-machine interface dialogue.

Adopt the most advanced programmable technology,easier to set the program and the cycle number arbitrarily, multi-segment sweep frequency can work at the same time.

With single point, segment, multi-segment timing and countdown function.

Stepless adjustment of amplitude to meet various test requirements in different industries.

It is convenient to use, with working time setting device.

Real-time synchronous display of control parameters without manual intervention.

Stepless amplitude adjustment, fixed and sweeping frequency operation functions adapt to various test requirements in different industries.

Imported frequency controller, digital control and display frequency, PID adjustment function.

It can display the curve of frequency change in real time. It can access the USB disk to record data and print test results by USB communication interface,.

Vertical and horizontal work independently, using electronic switching mode, improve work efficiency.





PRODUCT FEATURES



Embedded amplitude prediction program ,easy to adjust amplitude.

Four - point synchronous vibration with excellent uniformity of vibration.

Frequency control is accurate and balanced.

Add anti-interference circuit to solve the interference of strong electromagnetic field to the control circuit.



PROFESSIONAL DESIGN



Environmentally friendly design, ultra-low noise, preferred equipment for production line .

No drift during long-term operation, no need to install anchor screws to protect the floor.

Magnesium alloy panel can completely isolate magnetic field interference and effectively prevent magnetization of the measured objects.



TECHNICAL PARAMETERS



Model TZ-80ZY/+
Max Load Capacity(Kg) 40
Manual Frequency Range(Hz) 5-200
Automatic Sweep Range (Hz) 5-200
Displacement Range(mm) 0-5
Vibrating Manner Electromagnetic Type
Amplitude modulation Stepless Amplitude Modulation, Electronic Amplitude Modulation
Vibration Direction Vertical / Horizontal
Vibration Waveform Sine Wave
Test Mode Frequency Modulation/Automatic Sweep (Logarithmic,Linear,Multiplier,Random Vibration)
Control System 3 Section Program Settings /30 Procedures, Frequency And Arbitrary Curve Time Settings
Time Range 0.01s~99.99h
Working Table Size (mm) 450×450×46mm×2 (L×W×H)
Table Body Size(mm) 1200×500×450 (L×W×H)
Controller Body Size(mm) 500×380×1050 (L×W×H)
Power Supply Voltage (V/Hz) 220/50±5%
Consumed Power (KVA) 2.2
Cooling Air Cooling
Standard GB/T2423.10
With the development of technology, the product structure and parameters will be improved constantly. If the sample information is slightly inconsistent with the real object, the real object shall prevail,welcome to inquire.




PRODUCT PHOTOS

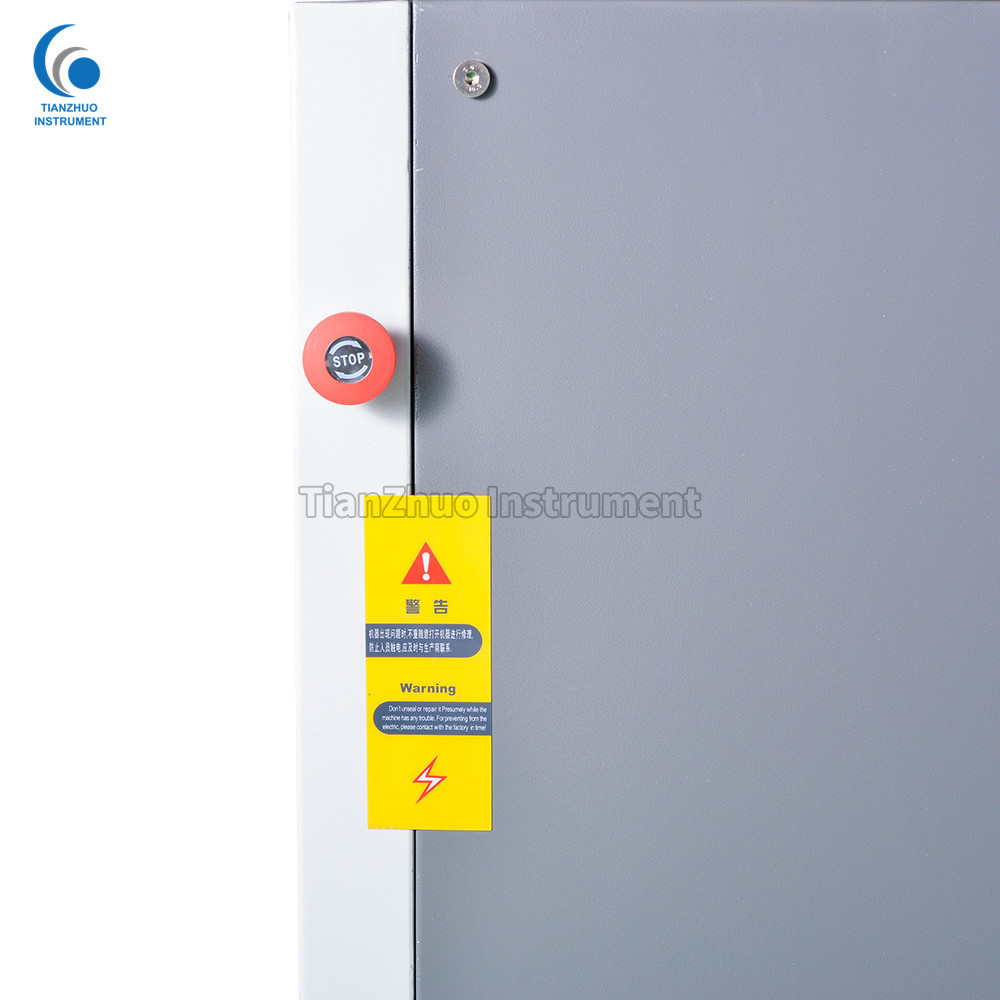

Air Cooling Electrodynamic Shaker System , Easy To Adjust Amplitude Vibration Testing Machine 0
