Climatic Temperature Humidity Test Chamber -40°C~+150°C Customized Size

Climatic Temperature Humidity Test Chamber -40°C~+150°C Customized Size

  • Climatic Temperature Humidity Test Chamber -40°C~+150°C Customized Size
Climatic Temperature Humidity Test Chamber -40°C~+150°C Customized Size
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW408
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Product Name: Temperature Humidity Test Chamber Application: Temperature And Humidity Testing
Temperature Range: -40°C~+150°C Humidity Range: 20%~98%R.H
Heating Rate: 1-1.5°C/min Cooling Rate: 0.7-1°C/min
Size: Customized Size Volume: 408L
High Light:

constant temperature humidity chamber


temp humidity chamber

Customized Climatic Chamber HW408L Constant Temperature And Humidity Manufacturers

Temperature Humidity Test Chamber profile


This product is suitable for testing various products or materials, household electrical appliances, instruments, instrument components and other electrical, electronic, automobile, motorcycle products under high temperature, low temperature, humidity environment conditions, for various scientific research institutions and factories and mines center test room to do reliability test.


Temperature Humidity Test Chamber Features


1. International brand imported compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# mirror stainless steel
3. The outer box adopts steel baking paint, which is beautiful and generous
4. Programmable touch temperature controller.
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, connected to computer.



Temperature Humidity Test Chamber Specification & Techincal data


Model TZ-HW80 TZ-HW150 TZ-HW225 TZ-HW408 TZ-HW1000
Internal Volume(Liters) 80 150 225 408 1000
Dimension Studio size(mm) 400*400*500 500*500*600 500*600*750 600*800*850 1000*1000*1000
Machine size(mm) 900*902*1350 1005*995*1465 1050*1100*1700 1100*1350*1750 1500*1500*1950
Structure Combined structure(If the door is not wide enough, small size is available , width can be reduced by 250~300mm)
Weight(kg) Around 280 Around 280 Around 300 Around 500 Around 800
Performance Test environment conditions Test environment temperature +25°C, relative humidity≤85%, No sample in test chamber
Corresponding standard GB/T 5170.2-1996 “Method for verification of basic parameters of environmental test equipment for electric and electronic products”
Test Method

Completely stationary test mode for the object to be measured

This method is the first choice for testing, research and semiconductor screening of electronic components

Parameters Control method Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature range -40°C~+150°C
Humidity range 20%~98%R.H
Heating rate 1-1.5°C/min
Cooling rate 0.7-1°C/min
Uniformity Temperature: ±1.5°C Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5°C Humidity: ±2.0%R.H
Temperature Calibration point +23°C and +80°C



Temperature Humidity Test Chamber Package details


1. External wooden case with tray
2. The total volume is about 3-6 square
3. Suitable for export, loading and unloading


Temperature Humidity Test Chamber Details

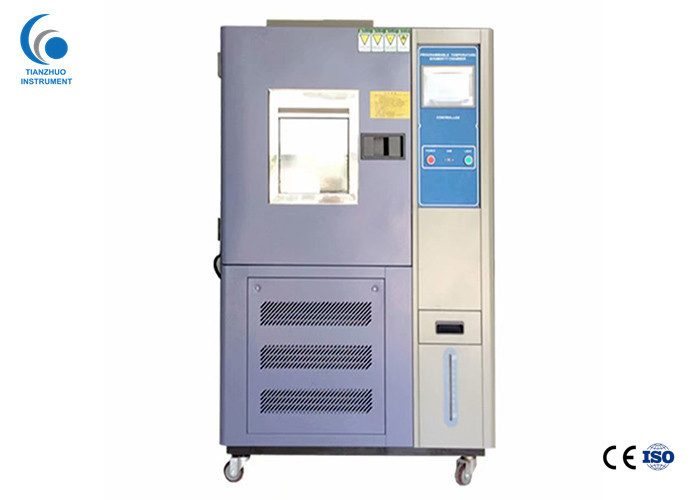

Climatic Temperature Humidity Test Chamber -40°C~+150°C Customized Size 0
