Computerized Tensile Strength Tester / Material Tensile Testing Equipment

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE Complied
Model Number:	TZ-S2000

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	Wooden case outside with pallet, in total 1-2CBM
Delivery Time:	5-7 working days
Payment Terms:	L/C, T/T, Western Union, , MoneyGram
Supply Ability:	500 sets/ month

Contact Now

Detailed Product Description

Product Name:	Tensile Strength Tester	Other Name:	Tensile Testing Equipment
Control Mode:	LCD Display Stand-alone Control	Power Unit:	Kgf、gf、N、kN、lbf
Length Unit:	Mm、cm、Inch	Stress Unit:	MPa、kPa、kgf/cm2、lbf/in2
Highlight:	computerized universal testing machine , tensile strength testing machine

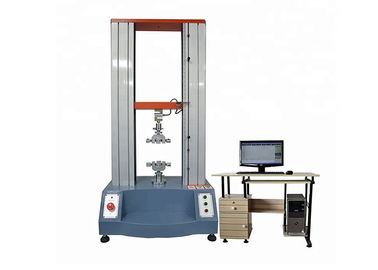

Computerized Tensile Strength Tester / Material Tensile Testing Equipment

Tensile Strength Tester Application

Tensile Strength Tester is a high-precision, multi-purpose material testing machine that tests the mechanical properties of various metal materials, non-metal materials, composite materials, and polymer materials in the state of tension, compression, bending, shearing, peeling and tearing.

Tensile Strength Tester Function:

Adopt high precision, no gap ball screw and timely gauge belt as the guarantee of transmission system accuracy;
Fully computerized data collection and motion control;
Test software under the Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or edit the test method according to their own actual needs;
The output of test results can be set arbitrarily;
Three basic configurations of intelligence: mainframe, microcomputer and printer.

Tensile Strength Tester SPECIFICATIONS:

Model	TZ-S2000 Tensile Strength Tester
Capacity to choose	1kg,2kg,5kg,10kg,20kg,50kg,100kg,200kg,500kg,1000kg,2000kg(Choose a set)
Sensor type	Model S high precision sensor
Control mode	LCD display stand-alone control
Power unit	kgf,gf,N,kN,lbf
Length unit	mm,cm,Inch
Stress unit	MPa,kPa,kgf/cm2,lbf/in2
Stroke resolution	1/500,000
Force accuracy	±0.5%
The experimental speed	0.01-500mm/min computer setting
Effective travel	700mm
Experimental width	Ø400mm
Stop mode	Overload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset
output	microwriter
motor drive	Servo motor + servo driver
Use the power supply	220V 50Hz
Mechanical	Imported synchronous wheel, synchronous belt + high precision ball

Tensile Strength Tester ADVANTAGES:

Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
The product has excellent performance and durability with reasonable price.
Famous brands are adopted for key components to guarantee the performance and quality.
We company established a sound quality assurance system and complete after-sales service guarantee system.

Service

1. Pre-service

♦ 24 Hours online service for your consult.

2. Middle service

♦ Do customer's request:

♦ Choose payment term you convienent.

♦ Promptly production and delivery,inform you in time.

3. After sale service

♦ 1 year warranty service and all life maintenance.

♦ Technical Egineer are avalible for oversea trainning.

♦ Remote control technical consult

Tensile Strength Tester Details
