|Place of Origin:||Guangdong, China|
|Model Number:||F Series|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Other Name:||Visual Measuring Machine||Usad For:||Machinery, Electronics, Instrument, Meter, Watch, Light Industry, Plastics|
|Linear Scale Resolution:||0.0005mm||X, Y-axis Indication Error:||(2.5+L/100)μm|
visual measuring machine,
digital measuring machine

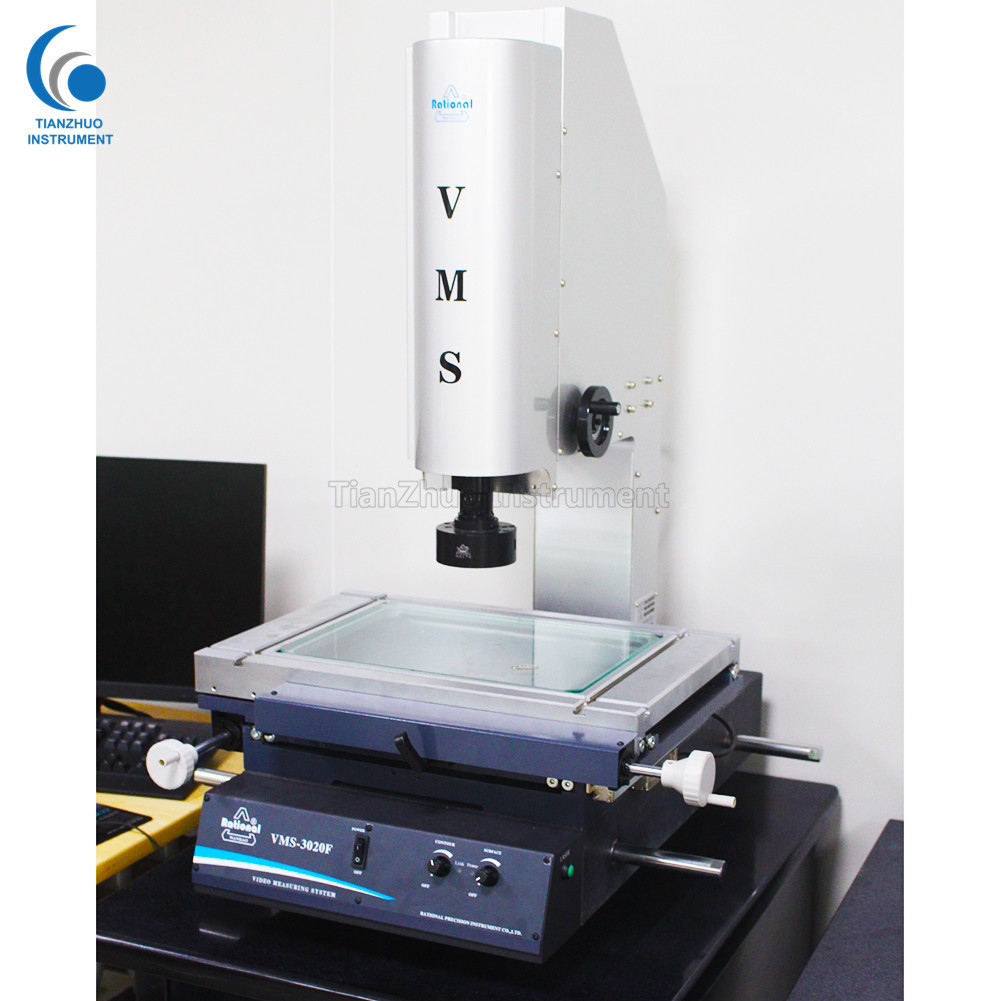

Manual Optical 2D Measuring Machine F Series
It can have precision measurement on electronic components, precision mould, stamping parts, PCB board, screw thread, gear, shaped cutter and other parts. It gradually enters into institutions of higher learning, research institution, laboratory of measurement verification department, measuring room and production department, and it is also used for precision measurement of outline and surface shape of plane parts with complicated shapes.
Widely used in 2D measurement as well as 3D measurement, this instrument is a high precision and high efficiency measuring machine that integrates optics, machinery and electronics.
It is mainly used in the field of machinery, electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.
1. Various kinds of lighting - Meets various requirements for customers.
2. Data processing, data display, data input, and data output.
3. Pragmatic workpiece straightening feature.
4. Detects the measured workpiece's specific location by laser indicator.
5. Foot-switch is matched with measuring software, which makes operation easier.
|Z-axis Travel (mm)||150 (It can be customized to 400)|
|Consistency Error Of Origin In Different
|E0≤20 (every 100mm displacement in Z axis)|
|Linear scale resolution: 0.0005mm.
X, Y-axis indication error: (2.5+L/100)μm
(L is the length of the measured object. Unit: mm)
|Color gigabit web camera|

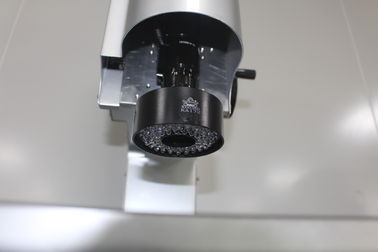

|Auto zoom lens magnification:0.58X~7.5X|
|Object view: 14mm~1.4mm|
|Video magnification: 27.4~351.3X|
