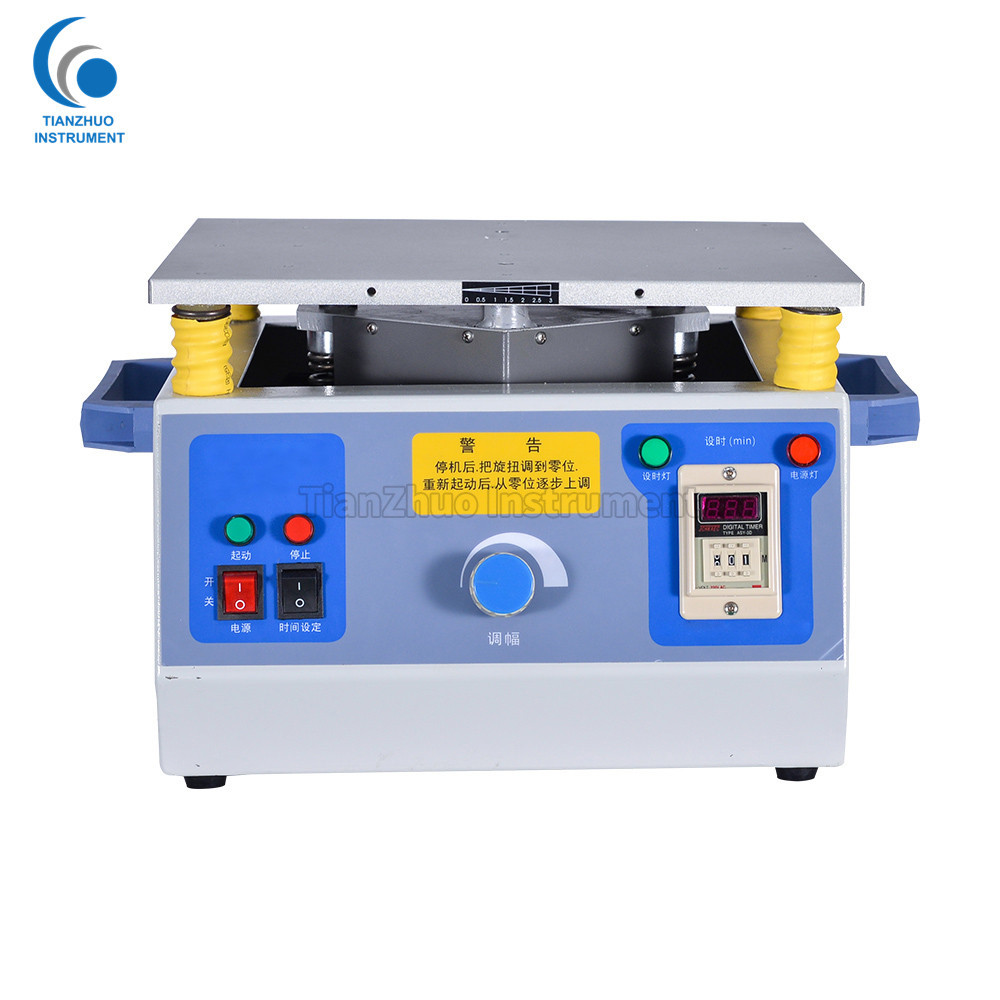

Name: Full Touch Control Vibration Testing Equipment Easy To Adjust Amplitude TZ - 50F Model
Brand: Full Touch Control Vibration Testing Equipment Easy To Adjust Amplitude TZ - 50F Model
SKU: TZ-50F
Rating: 4.9 (182 reviews)

Home Products Vibration Testing Equipment

Full Touch Control Vibration Testing Equipment Easy To Adjust Amplitude TZ - 50F Model

Product Details:

Place of Origin:	Guangdong, China
Certification:	CE Complied
Model Number:	TZ-50F

Payment & Shipping Terms:

Minimum Order Quantity:	1 set
Price:	Negotiation
Packaging Details:	Wooden case outside with pallet, in total 1-2CBM
Delivery Time:	5-7 working days
Payment Terms:	L/C, T/T, Western Union, , MoneyGram
Supply Ability:	500 sets/ month

Contact Now

Detailed Product Description

Product Name:	Vibration Testing Machine	Vibration Direction:	Vertical
Max. Load:	50 Kg	Working Frequency:	50 Hz
Displacement Range(mm):	0-2	Time Range:	1-999min
Power Voltage(V/Hz):	220/50±5%	Consumption Power(KVA):	0.9
Application:	Doing Simulate Actual Working Conditions And Examine Structural Strength Test	Warranty Period:	12 Months
High Light:	vibration testing machine , high frequency vibration machine

Small size vertical vibration frequency testing machine for national defense and aerospace

-----Features & Advantages-----

The transmission part adopts circular-arc synchronous toothed belt, precision screw auxiliary transmission, smooth transmission, low noise and high transmission efficiency.

Powerful Function:
1. Full touch control for easier operation.
2. Stepless adjustment of amplitude , to meet various test requirements in different industries.
3. It is convenient to use, with working time setting device.
4. Embedded amplitude prediction program and easy to adjust amplitude.

Excellent Performance :
1. Four - point synchronous vibration, excellent uniformity of vibration on worktable.
2. Accurate and balanced frequency control.
3. Add anti-interference circuit to solve the interference caused by the strong electromagnetic field to the control circuit.
Reasonable Design:
Environmental design, ultra-low noise, preferred equipment for production lines.
No drift during long-term operation, no need to install anchor screws to protect the floor.

-----Specification & Techincal data-----

Model	TZ-50F
Max. Load (kg)	50
Working frequency(Hz)	50
Frequency range(Hz)	No
Displacement range(mm)	0-2
Vibration direction	Vertical
Time range	1-999min
Worktable size(LWH)	40035020mm
Machine size(LWH)	400380300mm
Power Voltage(V/Hz)	220/50±5%
Consumption power(KVA)	0.9
Cooling type	Air cooling
Standard	GB/T2423.10

-----Applications-----

Vibration test series are widely used in national defense, aerospace, communications, electronics, automotive, home appliances and other industries.
This type of equipment is used to detect early faults, simulate actual working conditions and examine structural strength test. The product is widely used, widely applicable, and the test effect is significant and reliable.

-----Package details-----

1. Wooden case with pallet outside.
2. The total volume is about 1-2 CBM.
3. Suitable for export, loading and unloading.
Packaging details are as follows:

Full Touch Control Vibration Testing Equipment Easy To Adjust Amplitude TZ - 50F Model 0
