    Product Details:

    Place of Origin: Guangdong, China
    Certification: CE Complied
    Model Number: TZ-HG1500

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Wooden case outside with pallet, in total 1-2CBM
    Delivery Time: 5-7 working days
    Payment Terms: L/C, T/T, Western Union, , MoneyGram
    Supply Ability: 500 sets/ month
    Contact Now
    Detailed Product Description
    Item: Drop Weight Test Machine Height Range: 300~1500mm
    Height Display: Digital Drop Height Error: ±10mm
    The Maximum Weight Of The Product: 60Kg Net Weight: 600 Kg
    High Light:

    corrugated box compression testing machine

    ,

    compressive strength testing machine

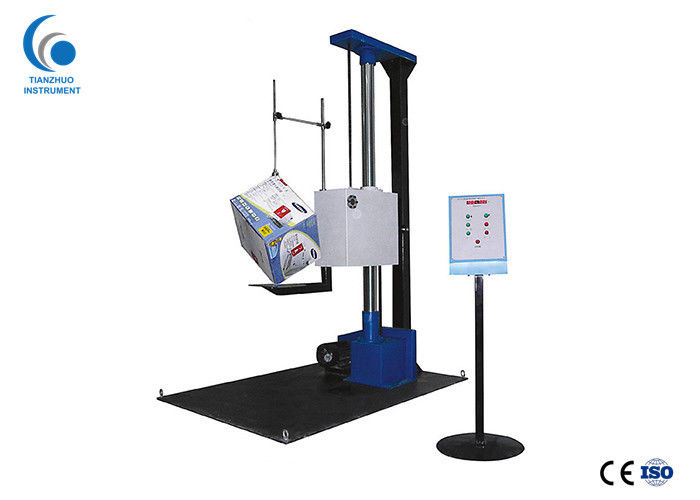

    High Precision Packaging Testing Instruments / Drop Weight Test Machine



    Product Introduction:



    Drop testing machine is a kind of machine specially used to test the damage of product package by falling and evaluate the impact strength during transportation and handling.



    Specifications:



    Model TZ-HG1500
    Height range 300~1500mm
    Height display digital
    Drop height error ±10mm
    The maximum weight of the product 60Kg
    The maximum size of the product 1000×800×1000mm
    Impact panel size 1600×1100×20mm
    The appearance of the machine 1600×1100×2230mm
    The size of the control box 300×350×1100mm
    Drop mode surface, edge, Angle
    The motor power 1.1KW
    Net weight 600 kg



    Product Features:



    1. full-automatic single-wing design, electric contraction arm, 9.8m/s2 drop acceleration, to ensure the free separation of the cargo carrier and the packaging specimen, to realize the free drop of the packaging specimen, with small impact vibration, stable and reliable, and to truly complete the surface, edge and Angle drop test
    2. with electric reset, electronic drop and electric lifting device, easy to use
    3. equipped with digital display height display and decoder for height tracking, so as to accurately give the drop height of the product, the error from the preset drop height is no more than 2% or 10mm.
    4. Motor fault protection, high and low limit protection, emergency stop protection



    Ista-1a /2A external tank drop test



    Drop test of external container, usually using ista-1a or 2A standard established by iata.Most customers will choose the standard of 1A for testing. The test procedure of 1A and 2A is basically the same, but the drop height will be different.



    Drop test procedure



    1. First, check the product to make sure that the product being tested is a good product, including appearance and function.

    2. Repackage to the original packing state, including the packing belt of the outer case (if any).

    3. Choose the right floor, which must be smooth and hard.Such as concrete floor, iron plate, etc.

    4. Test in the following order:





    Test Sequence Parts Specific Surface, Angle, edge
    1 Angle for the most vulnerable Angle. If not, test for 2-3-5
    2 edge shortest side of the adjacent test Angle
    3 edge next longest side of the adjacent test Angle
    4 edge longest side of the adjacent test Angle
    5 surface minimum surface
    6 surface Relative minimum surface
    7 surface A small plane
    8 surface Relatively minor surface
    9 surface The bedding face
    10 surface Relative maximum
