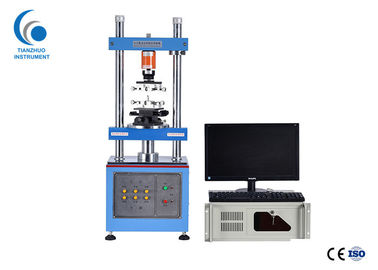

Pull Strength Tester Introduction:

This machine is suitable for testing the insertion force and pullout force of various connectors and other products. It provides a variety of special clamps for connectors and an automatic centering device with patented design.And all the data can be stored test conditions, plug and pull travel curve, life curve, check report, etc.).

Pull Strength Tester Features:

1. can print and store the graph (plug displacement curve, load decay life curve, check report);
2. Dual protection functions of overload protection and software protection of load element;
3. The upper and lower limits of the test can be input, and the machine will stop automatically if exceeding the specification;
4. Load unit display: N, lb, gf and KGF can be switched freely;
5. The life curve of load attenuation can be derived after testing;
6. Test data can be stored on hard disk (each batch of data can be stored for an unlimited number of times);
7. The contents of the header of the inspection report can be modified at any time (both in Chinese and English);
8. Graph report, text report can be assigned by the customer's head and Logo;
9. The inspection report can be transferred to Word, Excel and PDF for editing.

Pull Strength Tester Specifications:

Main Test Items

1. Test the insertion force and displacement of connector products, and the drawing force and displacement;
2. connector single-hole plug test, connector Normal Force test;
3. Compression and tensile failure tests can be conducted;
4. Test the analysis of USB plug life curve;
5. There is a 19.5-inch LCD display with a large screen in the 1220S test equipment, from which you can visually see the curve change of the test weight-displacement;
6. The fixture of 1220S test equipment can perform a lot of conventional connector plug and pull tests, single PIN retention Force tests, connector insert Force and displacement, and output and displacement tests, connector single-hole plug and pull tests, connector Normal Force tests, general compression, tensile test and other test tasks.

Pull Strength Tester Details
