|Place of Origin:||Guangdong, China|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case outside with pallet, in total 1-2CBM|
|Delivery Time:||5-7 working days|
|Payment Terms:||L/C, T/T, Western Union, , MoneyGram|
|Supply Ability:||500 sets/ month|
|Keyword:||Walk In Environmental Chamber||Application:||Household Electrical,instruments,etc.|
|Feature:||Over Current Protection||Model:||TZ-15|
|Studio Size(m):||3*3*2.5 (D*W*H)||Machine Size (m):||3.5*3.3*3 (D*W*H)|
walk in humidity chamber,
walk in climatic chamber

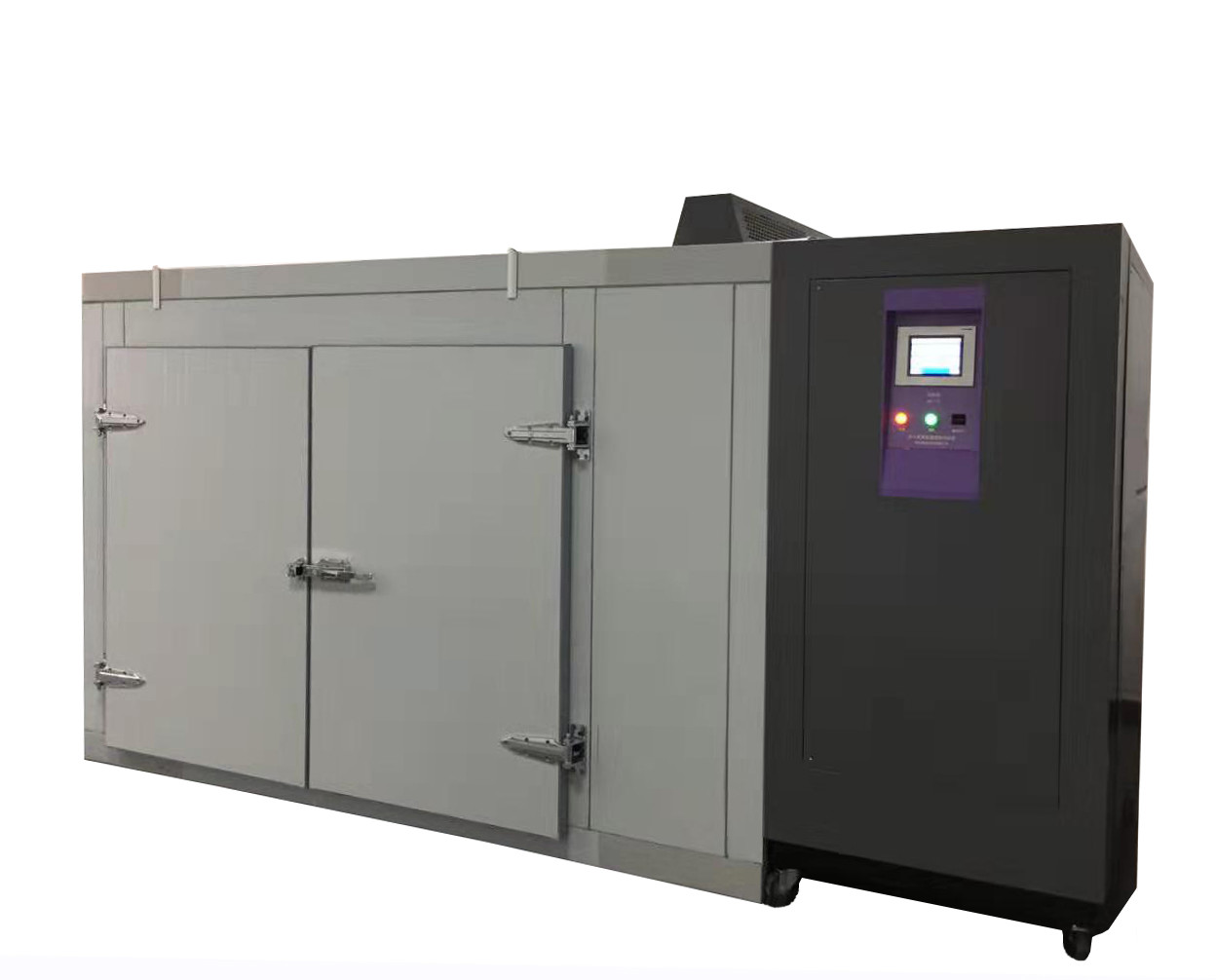

Customized Walk-in Environmental Chamber / Climatic Chamber Room For Research Purpose (TZ-15)
This product is suitable for testing various products or materials, household electrical appliances, instruments, instrument components and other electrical, electronic, automobile, motorcycle products under high temperature, low temperature, humidity environment conditions, for various scientific research institutions and factories and mines center test room to do reliability test.
1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner studio is made of SUS304# stainless steel.
3. The outer box body is made of high quality color steel plate, beautiful and generous
4. Adopt programmable touch type temperature controller .
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality and beautiful appearance.Low noise design, can be connected to computer.
7. The glass window is equipped with high-brightness fluorescent lamp, allowing the user to observe the conditions inside the test box at any time.
8. Use multi-wing blower to provide strong air circulation, avoid any dead Angle, and make indoor temperature distribution even.
9. The sealing strip of the door is made of silicone rubber which can withstand high and low temperature.
1. The performance is good, variety is complete,can be customized according to customer demand.
2. We company have a sound quality assurance system to ensure the quality of products.
3. The 7×24 hour service guarantee system guarantees the after-sales service of the products.
4. The products are durable and can be continuously tested for a long time.
|Studio Size(m)||3*3*2.5 (D*W*H)|
|Machine Size (m)||3.5*3.3*3 (D*W*H)|
|Weight||About 2600 KG|
|Control Methods||Balanced temperature humidity control system (BTHC) PID intelligent adjust|
|Insulation material||Rigid polyurethane foam + Imported ultra-fine glass fiber|
|Temperature Range||-60ºC~+100ºC(Operating temperature range -55ºC ~ 95ºC)Temperature range can be customized;|
|Heating Rate||1-3°C/min nonlinear ( linear is customize )|
|Cooling Rate||Average 0.7~1.5 C/min nonlinear|
|Internal Material||SUS#304 stainless steel|
|External Material||High quality color steel plate|
|Temperature Uniformity||±2ºC(Value is measured after 30 minutes when the equipment temperature is stable without opening or closing doors in the working area)|
|Regulator||Temperature Fluctuation||±0.5ºC(Without opening or closing doors)|
|Humidity Deviation||Below 75%R.H:≤±5%R.H, Above 75%:≤±2%R.H|
|Temperature Calibration Point||+23ºC and +80ºC|
|Compressor||Semi-enclosed compressor (German bitzer or equivalent brand)|
|Evaporator||Finned - tube evaporator|
|Condensing Way||Air-cooling and Water-cooling|
|Cooling mode||Mechanical binary refrigeration way|
|Throttling Device||Expansion valve + solenoid valve + capillary tube|
|Evaporative Condenser||Stainless steel brazed plate heat exchanger|
|Refrigerant||Environmental refrigerant with ozone depletion index of 0, R404a/R23|
|Humidifier||Stainless steel sleeve type humidifying tube,preventing dry burning|
|LCD touch screen programmable color temperature and humidity controller|
|Memory capacity||120 groups, each program 1200 segment|
|Time Range||0-99 H 59 min|
|Output||With recording signal port output and can be connected to the temperature and humidity recorder|
|Memory device||Backup data for power fail , continue to execute the rest of the program after power restoration|
|Alarm Function||Alarm display(fault cause)|
|Water Supply||Circulating water supply|
|Test Method Reference||GB/T2423.1-1989,GB/T2423.2-1989,GB/T 5170.2-1996|
Test Chamber Protection:
Adjustable over-temperature protection
Test space temperature fuse
Extreme over-temperature protection of air conditioning channel
Fan motor overheating, overload protection
Heater short circuit, overload protection
Power leakage protection
Phase sequence missing phase protection
Power overload current protection
Ground fault protection
Compressor overheat protection
Compressor over-current protection
Compressor over-pressure protection
Compressor overload protection
1. GB/T10589-1989Technical conditions of low temperature test chamber;
2. GB/T10586-1989Technical conditions of heat and humidity test chamber;
3. GB/T10592-1989Technical conditions of high and low temperature test chamber;
4. GB2423.3-93(IEC68-2-3)Constant heat and humidity test chamber;
5. MIL-STD810D methods 502.2;
6. GB/T2423.4-93(MIL-STD810)methods 507.2 Procedure 3;
7. GJB150.9-8 humidity and temperature test;
Combined circulation test of temperature and humidity.
