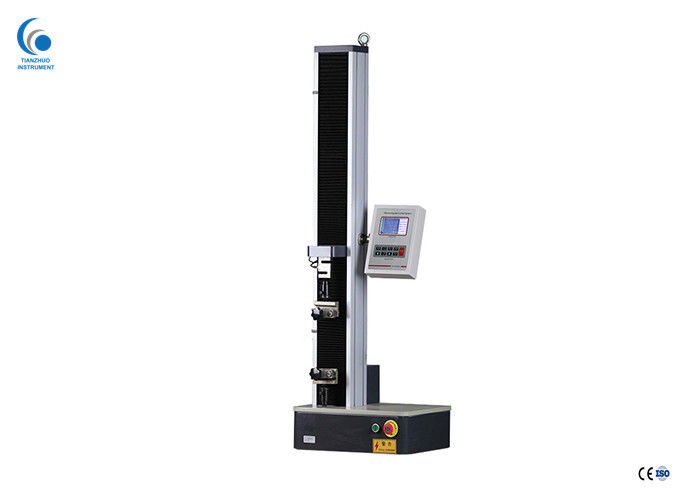

Mechanical Tensile Strength Testing Machine , Tensile Testing System
Tensile Strength Testing Machine Introduction
Tensile test machines are universal testing machines specially configured to evaluate tensile strength of specimens. Our tensile testers will measure characteristics such as ultimate tensile strength, yield strength, elongation and modulus. Each tensile test machine is configured to your testing needs by our application engineers with the correct controller, grips, and accessories. Due to our modular machine design, your tensile tester can also be equipped to perform other applications such as compression, cyclic, shear, flexure, bend, peel, and tear just by adding fixtures.
Tensile Strength Testing Machine Functions
1. To have a wide range of test speed adjustment, low noise and stable operation, this tester uses high precision all-digital speed regulation system which can actuate precision lead screw to doing the test.
2. The universal joint is cross shape bolt structure.It’s easy to clamp the sample and guarantee the concentricity of the test. It can also eliminate the influence from irregularity sample to sensor.
3. This tester have touch button operation,and LCD display screen. convenient and swift.
4. It can achieve the adjustment of cross-head’s speed when clamp the specimen.
5. It have over current, over voltage and over load protective device
6. It can choose the microcomputer interface to control the test and to save and print the data.
Tensile Strength Testing Machine SPECIFICATIONS:
| Model |
TZ-D500B Tensile Strength Testing Machine |
| Length unit |
mm,cm,Inch |
| Stress unit |
MPa,kPa,kgf/cm2,lbf/in2 |
| Stroke resolution |
1/500,000 |
| Force accuracy |
±0.5% |
| The experimental speed |
1—500mm/min(adjustable) |
| effective travel |
650mm |
| Test space |
120mm |
| Stop mode |
Overload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset |
| output |
microwriter |
| motor drive |
Servo motor + servo driver |
| Mechanical transmission |
Imported synchronous wheel, synchronous belt + high precision ball screw |
| The machine power |
420W |
| The machine size(W*D*H) |
500mmx520mmx1250mm |
| Use the power supply |
220V 50Hz |
| The standard configuration |
A set of fixtures, a power cord, a manual |
Tensile Strength Testing Machine Application:
Applied in Tape, automobile, ceramic, composite material, construction, food and medical equipment, metal, paper, packaging, rubber, textile, wood, communication and various special materials.
Tensile Strength Testing Machine Details
