Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW225
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Humidity Temperature Test Chamber Internal Size WxHxD(cm): 60*75*50
External Size WxHxD(cm): About 140*185*130 Inner Chamber Materials: SUS#304 Stainless Steel
Distribution Accuracy: 0.1P 0.1%R.H./±2.0P ±3.0%R.H. Temp And Humi Control Accuracy: ±0.5t) ±2.5%R.H.
High Light:

constant temperature humidity chamber


laboratory humidity chamber

Programmable Humidity Temperature Test Chamber / Environment Test Chamber


Humidity Temperature Test Chamber INTRODUCTION:

Equipment used for testing the performance of materials in various environments and testing the heat, cold, dry and moisture resistance of materials.Suitable for testing quality of electronic, electrical, mobile phone, communication, instrument, vehicle, plastic products, metal, food, chemical, building materials, medical, aerospace and other products. Conform to international standard(IEC,JIS,GB,MIL)Reach international measurement program consistency ,including test process,condition and method.


Humidity Temperature Test Chamber SPECIFICATIONS:


Model TZ-HW225L Humidity Temperature Test Chamber
Internal size WxHxD(cm) 60*75*50
External size WxHxD(cm) About 140*185*130
Inner chamber Materials SUS#304 Stainless steel
Temperature range Low temperature: A: +25 °C B:0°C C:-20°C D:-40°C E:-60°C F:-ZO°C)
High temperature: 100°C(150°C)
Humidity range 20%~98% R.H. (10%~98%R.H); (5%~98% R.H is a special selection condition)
Distribution accuracy 0.1P 0.1%R.H./±2.0P ±3.0%R.H.
Temp and humi control accuracy ±0.5t) ±2.5%R.H.
Heating/cooling time Heating about: 3°C/min Cooling: 1°C /min
Internal and external materials The inner and outer boxes are made of SUS304# stainless steel plate
Insulation material High temperature resistant high density ethyl chloroformate foam insulation material
cooling system Air-cooled / single-stage compressor (-20°C); two-stage compressor (-40°C - 70 °C)
Safety device No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection
power supply AC220V 50/60Hz & 1 # AC380V 50/60Hz3§
Weight About 250KG


Humidity Temperature Test Chamber FEATURE:


  1. The heating system adopts the completely independent nickel-chromium alloy electric heating type, with high resistivity, small resistance temperature coefficient, small deformation at high temperature and not easy to embrittlement, and long service life.
  2. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
  3. The outer box adopts anti-rust treatment cold-rolled steel plate , with reasonable structure and elegant appearance.
  4. Programmable touch controller
  5. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.
  6. The glass window is equipped with high-brightness fluorescent lamp, allowing the user to observe the conditions inside the test chamber at any time.
  7. Use the multiple wing blower to provide strong air circulation, avoid any dead angle, and make indoor temperature distribution evenly.
  8. The door sealing strip is made of high and low temperature resistant silicone rubber with good sealing performance.


Humidity Temperature Test Chamber ADVANTAGES:

1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

2. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.

5. Free warranty for 1 year.

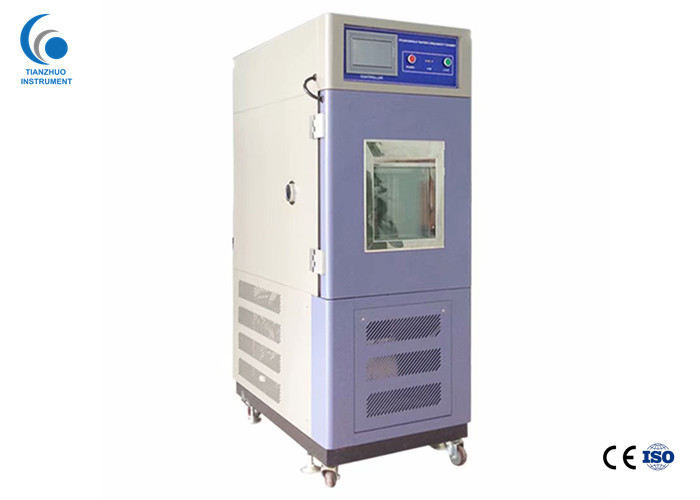

Humidity Temperature Test Chamber PHOTOS

Programmable Humidity Temperature Test Chamber / Environment Test Chamber 0
