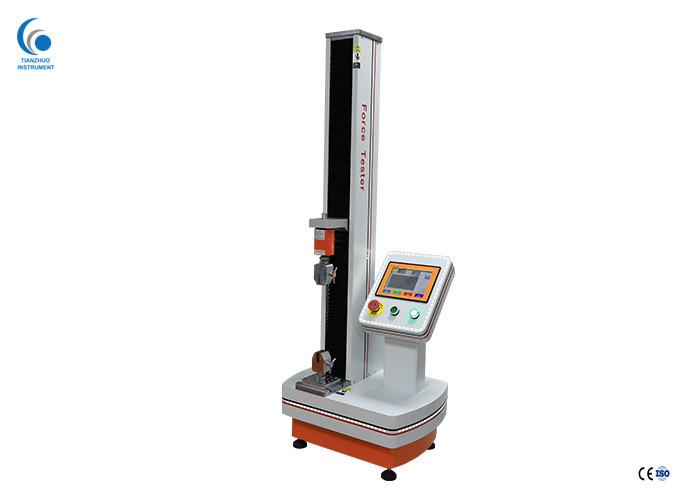

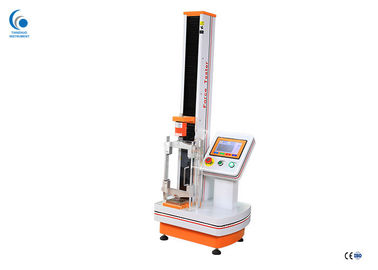

Factory Supply Electronic Automatic Lab Universal Tensile Testing Machine(TZ-D100)
PRODUCT INTRODUCTION:
This machine can test rubber, plastic, leather, metal, nylon thread, fabric, paper and aviation, packaging, construction, petrochemical, electrician, vehicle...Materials such as tension, compression, bending, shear, bonding, stripping, tearing...For quality control, incoming material inspection, physical test, mechanical research, material development basic equipment.
SPECIFICATIONS:
| Model |
TZ-D100 |
| Capacity to choose |
10N,20N,50N,100N,200N,500N,1000N(Choose a set) |
| Sensor type |
Model S high precision sensor |
| Display |
Computer display mode |
| Power unit |
kgf,gf,N,kN,lbf |
| Length unit |
mm,cm,Inch |
| Stress unit |
MPa,kPa,kgf/cm2,lbf/in2 |
| Stroke resolution |
1/200,000 |
| Force accuracy |
±1% |
| The experimental speed |
1—500mm/min(adjustable) |
| effective travel |
450mm |
| Test space |
120mm |
| Stop mode |
Overload stop, emergency stop key, automatic stop of specimen failure, automatic stop of upper and lower limit setting, automatic reset |
| output |
microwriter |
| motor drive |
Servo motor + servo driver |
| Mechanical transmission |
Imported synchronous wheel, synchronous belt + high precision ball screw |
| The machine power |
200W |
| The machine size(W*D*H) |
500mmx420mmx1150mm |
| Use the power supply |
220V 50Hz |
| The standard configuration |
A set of fixtures, a power cord, a manual |
Application:
Applied in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.Applied in machinery, metallurgy, construction, transportation, aviation, aerospace, shipping, ceramics, automotive, pharmaceutical and electronics industries.
Test Software Description:
Software support: simplified Chinese, traditional Chinese, English support, 3 types: SI international standard units, kg-cm units, lb-inch British system units, 6 kinds of commonly used units: n-mm-mpa, kn-mm-mpa, gf-cm-kgf/cm2, kgg-cm-kgf /cm2, lb-inch-kpsi, kp-inch-kpsi, easy to switch units. Meet the use of different regional standards.
Function:
1. The base is supplemented by aluminum alloy profile column treated by advanced plastic spraying;
2. Adopt high precision, no gap ball screw and timely gauge belt as the guarantee of transmission system accuracy;
3. Fully computerized data collection and motion control;
4. Test software under the Windows XP operating system, users can use the existing functions of the software to complete the mechanical test project, or edit the test method according to their own actual needs;
5. The force measurement accuracy is better than 0.5, and the resolution of force value is 1/500000.
PRODUCT ADVANTAGES:
1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
2. The product has excellent performance and durability with reasonable price.
3. Famous brands are adopted for key components to guarantee the performance and quality.
4. We company established a sound quality assurance system and complete after-sales service guarantee system.
5. Free warranty for 1 year.
