Stainless Steel Tubing Packaging Testing Instruments Double Sealing Knob

Stainless Steel Tubing Packaging Testing Instruments Double Sealing Knob

  • Stainless Steel Tubing Packaging Testing Instruments Double Sealing Knob
Stainless Steel Tubing Packaging Testing Instruments Double Sealing Knob
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Measuring Range: 70~1600kpa (paper),150~5600kpa (corrugated Cardboard) Power Resolution: 1/100000
Deformation Error: ≤ 1mm Concentricity Of Upper And Lower Discs: ≤0.25mm
Accuracy: ≤±0.5% Resolution: 0.01kpa
Silicone Film Disk Pressure: (9 ± 0.2) Mm / (30 ± 5) KPa Human Machine Interface: 5in Touch Screen
High Light:

corrugated box compression testing machine

,

packaging testing equipment

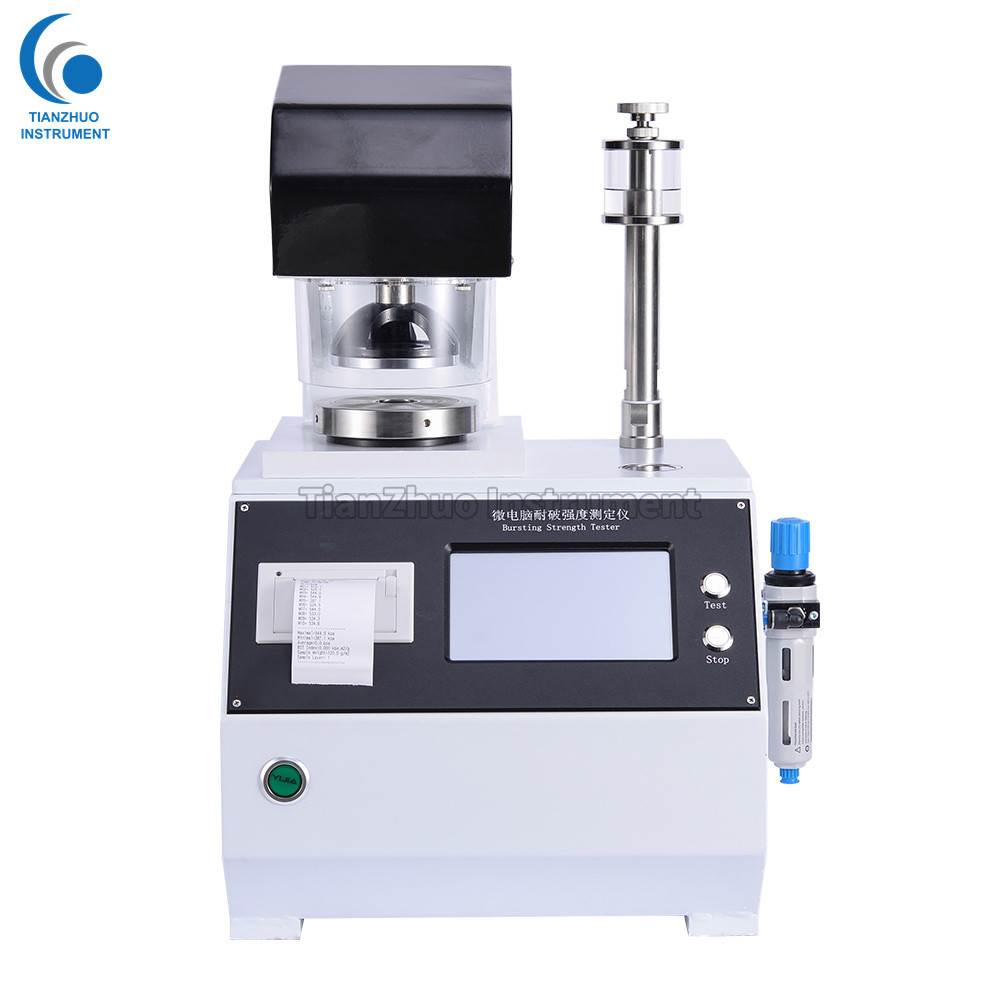

Bursting Tester for Paper and Board



APPLICATION

Paper Bursting Tester is a test for detecting the burst strength and breakage index of paper. It is suitable for paperboard, kraft paper, cardboard, corrugated paper, gray board and other paper. Cardboard Bursting Tester is an instrument for measuring the burst strength of corrugated cardboard and corrugated boxes. More suitable for cardboard production enterprises, carton manufacturers, carton enterprises, scientific research institutions, etc.



STANDARDS

GB/T454 ,QB/T 1057,ISO 2758



TECHNICAL PARAMETERS(High-end Models)

Measuring Range 70~1600kpa (paper),150~5600kpa (corrugated cardboard)
Power Resolution 1/100000
Data Analysis Sampling Sampling frequency 400 times / sec
Force Accuracy ±0.1% of the indicated value (20 to 100% FS)
Accuracy ≤±0.5%
Resolution 0.01kpa
Deformation Error ≤ 1mm
Concentricity Of Upper and Lower Discs ≤0.25mm
Silicone Film Disk Pressure (9 ± 0.2) mm / (30 ± 5) kPa
Oil Delivery Speed 95±5ml/min (paper), 175±5ml/min (corrugated cardboard)
Human Machine Interface 5in touch screen
Test Control With delayed pressurization control with depressurization delay control.
Clamping Force 100~1200kpa (adjustable), with voltage regulation function to ensure stable holding power
Circuit Chip Protection Self-contained water vapor filter device to protect the stability of the circuit device.
Oil Cup System High-strength high-pressure oil circuit sealing system with double sealing knob, 25mm high pressure 30 stainless steel tubing.
Calibration System Self-contained calibration system, with manual pressure and pressure reduction control system
Test Head Material Cylinder part, upper clamping and lower clamping part are all 304 stainless steel
Safety Device With safety cover
Language Switching Chinese and English dual language free switching
Unit Conversion Kg/c㎡, kpa, lbf/in2
Printout Modular integrated thermal printer
Weight 55Kg
Pressure Plate Diameter
Upper Disc Diameter 30.5±0.1mm;
Lower Disc Diameter 33.1±0.1mm (paper);
Upper Disc Diameter 31.5±0.1mm;
Lower Disc Diameter 31.5±0.1mm (Corrugated Cardboard)



TECHNICAL PARAMETERS (Standard Models)



Measuring Range 70~1600kpa (paper), 150 ~ 5600kpa (corrugated cardboard)
Power Resolution 1/100000
Data Analysis Sampling Sampling frequency 400 times / sec
Force Accuracy ±0.1% of the indicated value (20 to 100% FS)
Accuracy ≤±0.5%
Resolution 0.1kpa
Deformation Error ≤ 1mm
Concentricity Of Upper And Lower Discs ≤0.25mm
Silicone Film Disk Pressure (9 ± 0.2) mm / (30 ± 5) Kappa (paper)10mm, 170-220kpa, 18mm, 250-350kpa (cardboard)
Oil Delivery Speed 95±5ml/min (paper), 175±5ml/min (corrugated cardboard)
Human Machine Interface 6 inch touch screen
Clamping Force 100~1200kpa (adjustable), with voltage regulation function to ensure stable holding power
Data Saving 99 groups of data can be saved at the same time
Language Switching Chinese and English dual language free switching
Unit Conversion Kg/cm2, kpa, lbf/in2
Printout Modular integrated thermal printer
Weight 45Kg
Diaphragm Diameter
Upper Disc Diameter 30.5 ± 0.1mm;
Lower Disc Diameter 33.1 ± 0.1mm (paper)
Upper Disc Diameter 31.5±0.1mm;
Lower Disc Diameter 31.5±0.1mm (corrugated cardboard)
