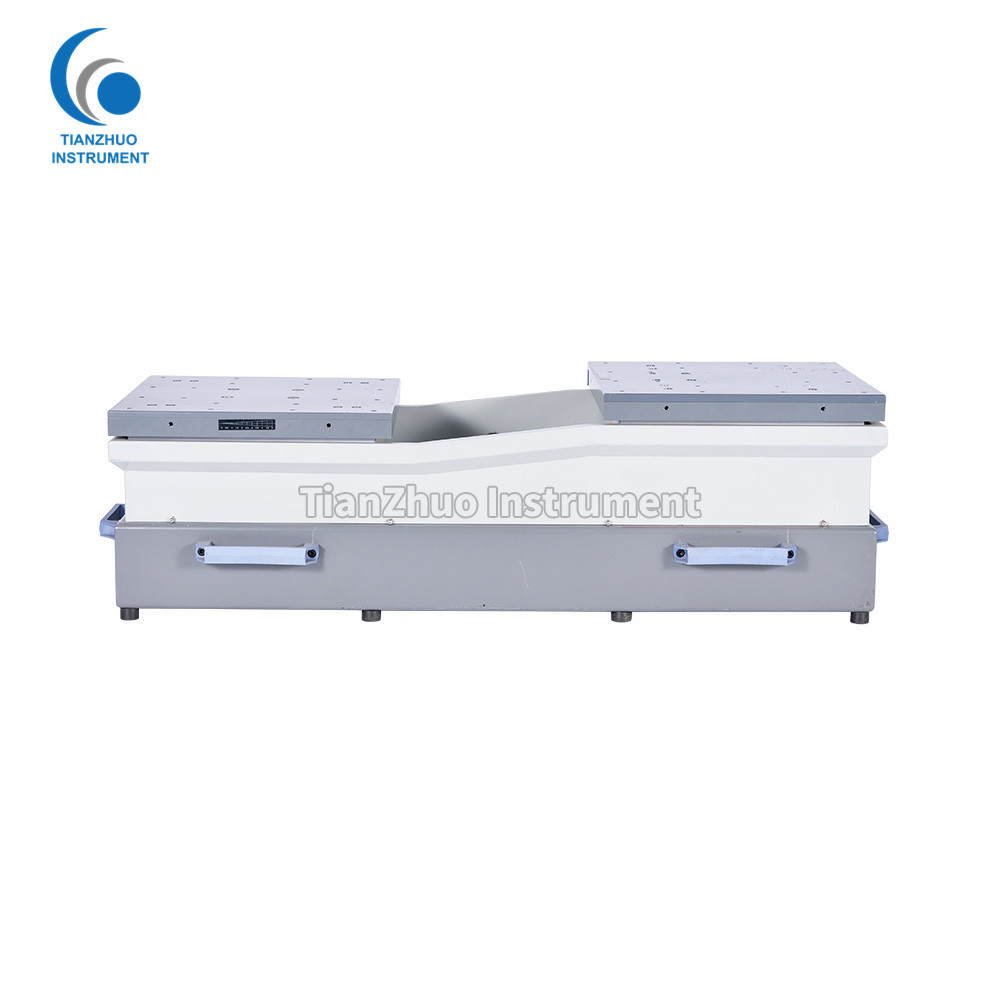

Stepless Adjustment Vibration Testing Equipment Customized TZ - V3 Model

Stepless Adjustment Vibration Testing Equipment Customized TZ - V3 Model

  • Stepless Adjustment Vibration Testing Equipment Customized TZ - V3 Model
Stepless Adjustment Vibration Testing Equipment Customized TZ - V3 Model
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-V3
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Item: Customized Vibration Shaker Model: TZ-V3
Function: Stepless Adjustment Of Amplitude Vibrating Manner: Electromagnetic Type
Max Load Capacity (kg): 40 Manual Frequency Range(Hz): 1-200
Automatic Sweep Range (Hz) 1-200: 1-200 Displacement Range(mm): 0-5
High Light:

vibration testing machine


high frequency vibration machine

Customized Vibration Shaker Price / Vertical Electromagnetic Vibration Table (TZ-V3)

The speed control system adopts stepping motor and speed reducer, and the performance is stable and reliable. It has protection devices such as over-current, over-voltage, overload and so on.



TZ-V3 electromagnetic vibration table is developed to meet the market demand, with multi-direction, large load, large vibration amplitude, easy to operate and other characteristics.


It is a powerful and cost-effective vibration table widely used in national defense, aerospace, communications, electronics, automotive, home appliances ,electromechanical, photoelectric, toys and other industries.


This type of equipment is used to detect early faults, simulate actual working conditions and examine structural strength test. The product is widely used, widely applicable, and the test effect is significant and reliable.




Stepless adjustment of amplitude,fixed frequency and frequency sweeping operation functions to meet various test requirements in different industries.
With timing function, easy to use.Control parameters are displayed synchronously in real time, without manual intervention.

Program control: 30-segment program can be set to run cyclically.

Frequency multiplication function: 30 segments are multiplied.

Logarithmic function: lower channel up frequency, upper frequency to lower frequency, lower frequency to upper frequency and then to low frequency/recyclable.

Import frequency controller, digital control and display frequency, PID adjustment function.




Embedded amplitude prediction program , easy to adjust .

Four-point synchronous exciting vibration with Excellent uniformity of vibration.

Frequency control is precise and balanced.




Eco-friendly design, ultra-low noise, the preferred device for the production line.

Long-term operation does not drift, no need to install anchor screws to protect the floor.



Model TZ-V3
Max Load Capacity (kg) 40
Manual Frequency Range(Hz) 1-200
Automatic Sweep Range (Hz) 1-200
Displacement Range(mm) 0-5
Vibrating Manner Electromagnetic Type
Amplitude modulation Electronic amplitude modulation
Vibration Direction Vertical
Vibration Waveform Sine Wave
Test Mode Frequency modulation/Automatic Sweep
Control System 3 Section Program Settings
Time Range 0.01s~99.99h
Working Table Size (mm) 450×450×46 (L×W×H)
Table Body Size(mm) 450×450×450(L×W×H)
Controller Body Size(mm) 450×330×750/500×380×1050(L×W×H)
Power Supply Voltage (V/Hz) 220/50±5%
Consumed Power (KVA) 1.6
Cooling Air Cooling
Standard GB/T2423.10
With the development of technology, the product structure and parameters will be improved constantly. If the sample information is slightly inconsistent with the real object, the real object shall prevail,welcome to inquire.





1. The product has excellent performance and durability with reasonable price,can be customized according to the special needs of customers.

2. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.

3. Famous brands are adopted for key components to guarantee the performance and quality.

4. We company established a sound quality assurance system and complete after-sales service guarantee system.

5. One-year free warranty period .
