Vertical Humidity Temperature Test Chamber / Constant Temperature And Humidity Machine

Vertical Humidity Temperature Test Chamber / Constant Temperature And Humidity Machine

  • Vertical Humidity Temperature Test Chamber / Constant Temperature And Humidity Machine
Vertical Humidity Temperature Test Chamber / Constant Temperature And Humidity Machine
Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: TZ-HW225
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Type: Humidity Temperature Test Chamber Model: TZ-HW225
Temperature    Calibration Point: +23 °C And +80 °C Studio Size(mm): 500*600*750
Standard Machine Size(mm): 1050*1100*1700 Other Name: Constant Temperature And Humidity Machine
High Light:

constant temperature humidity chamber

,

laboratory humidity chamber

Vertical Humidity Temperature Test Chamber / Constant Temperature And Humidity Machine



Humidity Temperature Test Chamber Application:



Constant Temperature And Humidity Climatic Test Chamber is able to simulate a wide range of temperature and humidity environment condition for testing various products and components. It is widely used for basic thermal cycling test and accelerated stress test.

Humidity Temperature Test Chamber Advantage

1. International brand compressor and internationally renowned refrigeration accessories are adopted to ensure stable performance of the refrigeration system.
2. The inner box is made of SUS304# high-brightness mirror stainless steel.
3. The outer box adopts anti-rust treatment cold-rolled steel plate (spraying), with reasonable structure and elegant appearance.
4. Programmable touch controller
5. Multiple safety protection: refrigerant high pressure protection, compressor overload protection, over current protection, over temperature protection, leakage protection.
6. Brand new and perfect modeling design, high quality appearance.Low noise design, can be connected to computer.
7. The glass window is equipped with high-brightness fluorescent lamp, allowing the user to observe the conditions inside the test chamber at any time.

Humidity Temperature Test Chamber TECHNICAL PARAMETERS



Model TZ-HW225 Humidity Temperature Test Chamber
Internal Volume(L) 225L
Dimensions Studio Size(mm) 500*600*750
Standard Machine Size(mm) 1050*1100*1700
Small Vertical External Size(mm) 1200*950*1850
Structure Combined structure (If the door is not wide enough, small size is available, width reduced by 250 ~ 300mm)
Standard Weight (Kg) About 300
Performance Test Environment Conditions Environment temperature+25ºC,Relative humidity≤85%,No sample in test chamber.
Corresponding Standard

GB/T 5170.2-1996 "Method for verification of basic parameters of

environmental test equipment for electric and electronic products"

Parameters Control Methods Balanced temperature and humidity control mode(BTHC) PID Intelligent Adjustment
Temperature Range -40ºC~+150ºC -70ºC~+150ºC
Humidity Range 20%~98%R.H (0%~100% R.H can be customized)
Heating Rate 1-2ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Cooling Rate 0.7ºC-1ºC/min (Linear Adjustment 3-5℃/min can be Customized)
Uniformity Temperature: ±1.5ºC Humidity: ±2.5%R.H
Fluctuation Temperature: ±0.5ºC Humidity : ±2%R.H

Temperature

Calibration

Point

+23 °C and +80 °C



Onsite Service:

1.Device installation; 2.Equipment Operation Test Technology training;3.Equipment Calibration;4.Daily maintenance and maintenance of equipment

Free technical training for visiting factories

24-hour Online contact

Free software upgrades

Free information:

1.Product Instruction;2.Product operation instruction/video;3.Experiment Test (test application, test report)

Device Problem Handling:

1. Social media 24 hours online communication;2. Mail Seamless Docking;3. Video Conferencing;4. Artificial free door-to-door service



Details

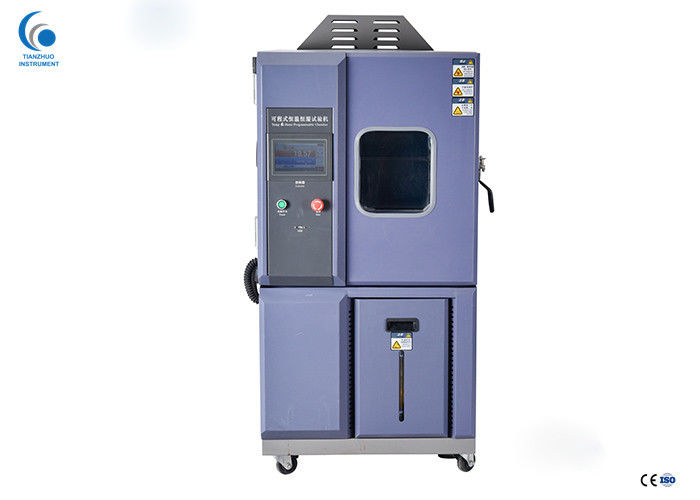

Vertical Humidity Temperature Test Chamber / Constant Temperature And Humidity Machine 0
