Place of Origin: | Guangdong, China |
Certification: | CE Complied |
Model Number: | TZ-800 |
Minimum Order Quantity: | Negotiation |
---|---|
Price: | Negotiation |
Packaging Details: | Wooden case outside with pallet, in total 1-2CBM |
Delivery Time: | 5-7 working days |
Payment Terms: | L/C, T/T, Western Union, , MoneyGram |
Supply Ability: | 500 sets/ month |
Product Name: | Rain Test Equipment | Internal Dimensions: | 800x800x800 Mm |
---|---|---|---|
Overall Dimensions: | 1020x1360x1560 Mm | Feature: | High Performance |
Turntable Rotation Speed: | 1r/min, Or Steeples Speed Regulating (optional) | Water Pressure Control: | Flow Meter |
Spraying Hole Diameter: | φ0.4mm | Hole Spacing: | 50 Mm |
Highlight: | rain test equipment,water spray test chamber |

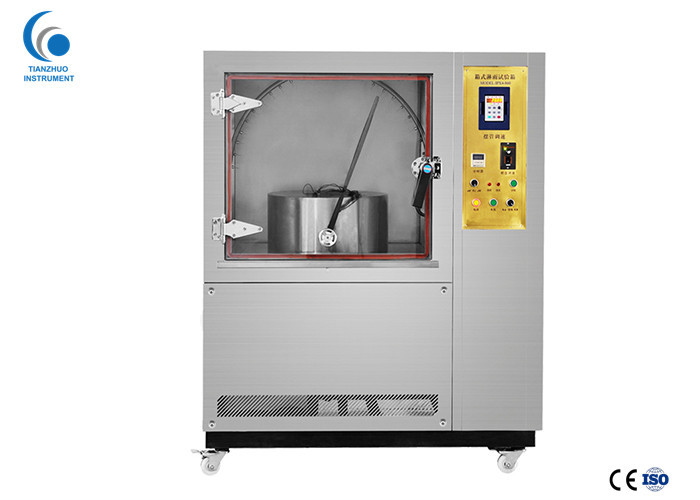

Water Resistance Rain Test Chamber , Rain Test Equipment High Performance
Rain Test Equipment FEATURES
Rain Test Equipment APPLICATION
The main purpose of this equipment is to test the physical and other related properties of electronic and electrical products, lamps, electrical cabinets, electrical components, automobiles, motorcycles and their parts under the simulated weather condition of rain.After the test, through the verification to determine whether the product performance meets the requirements, in order to facilitate the product design, improvement, verification and delivery inspection use.
Rain Test Equipment SPECIFICATIONS
Model | TZ-800 | TZ-1200 |
Internal dimensions (mm) | 800x800x800 | 1200x1200x1200 |
Overall dimensions (mm) | 1020x1360x1560 | 1450x1450x2000 |
Oscillating tube radius | 400mm | 600mm |
Turntable rotation speed | 1r/min, or steeples speed regulating (optional) | |
Controller | Programmable color display touch screen controller, PC Link with software, R-232 interface | |
Water pressure control | Flow meter | |
Observation window | Large viewing window with wiper | |
Water supply system | Storage water tank, booster pump, Automatic water supply, Water purification system, Water saving | |
Safety protection device | Electric leakage, short circuit, motor overheating, over-current protection | |
Interior material | SUS304 stainless steel | |
Power | AC380V 50HZ | |
Spraying hole diameter | φ0.4mm | |
Hole spacing | 50 mm | |
Oscillating tube range | ±45°, ±60°, ±90°, ±180°(theoretical value) |
PRODUCT ADVANTAGES
1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
2. The product has excellent performance and durability with reasonable price.
3. Famous brands are adopted for key components to guarantee the performance and quality.
4. We company established a sound quality assurance system and complete after-sales service guarantee system.
5. Free warranty for 1 year.
Service
1. Pre-service
♦ 24 Hours online service for your consult.
2. Middle service
♦ Do customer's request:
♦ Choose payment term you convienent.
♦ Promptly production and delivery,inform you in time.
3. After sale service
♦ 1 year warranty service and all life maintenance.
♦ Technical Egineer are avalible for oversea trainning.
♦ Remote control technical consult
Rain Test Equipment Details
