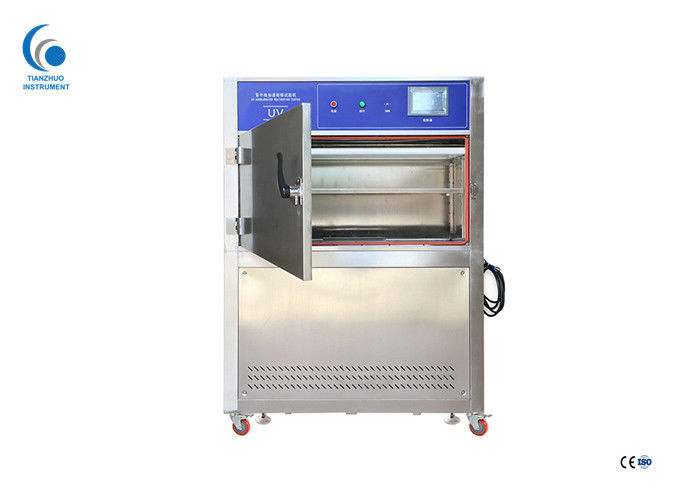

Weather Resistance UV Test Chamber , Programmable UV Light Test Equipment
UV Test Chamber ADVANTAGES:
1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
2. The product has excellent performance and durability with reasonable price.
3. Famous brands are adopted for key components to guarantee the performance and quality.
4. We company established a sound quality assurance system and complete after-sales service guarantee system.
UV Test Chamber SPECIFICATIONS:
| Model |
TZ-1021 |
| Studio Size(mm) |
W1150 X H400 x D400 |
| Outside Dimension |
W1400 X H1450 x D650 |
| Temperature Range |
RT+10~70°C |
| Temperature uniformity |
±2°C |
| Temperature fluctuation |
±0.5°C |
| Testing time |
0~999H, adjustable |
| Materials |
Inside and Outside SUS#304 stainless steel |
| Humidity range |
≥90%RH |
| Controller |
Korean TEMI programmable controller |
| Lamp power |
40W/Piece |
| Test cycle setting |
Illumination, condensation and water spray test cycle is programmable |
| Irradiance |
1.0W/m2 |
| Wavelength ultraviolet light |
UV-A: 315-400nm; UV-B: 280-315nm (8pcs, 1600h lifetime) |
| Distance from sample to lamp |
50±2mm (adjustable) |
|
Centre distance between
the lamp
|
70mm |
| Standard Specimen Size |
75×150mm or 75×3000mm (special specitications to be described in the contact) |
| Required water depth for water channel |
25mm, automatically control |
| Protection system |
Overload short circuit protection, over temperature protection, water lackin |
| Power |
220V/50Hz /±10% 4.5KW |
UV Test Chamber Application:
It is suitable for the aging test of non-metallic materials against sunlight and artificial light sources.
UV Test Chamber Function:
1. The UV-accelerated aging test chamber uses imported UVA-340 fluorescent UV light as a light source to simulate the damage caused by sunlight, rain and dew. The UV weatherproof box uses a fluorescent UV lamp to simulate the effect of sunlight, and uses condensed moisture to simulate dew.
2. The UV box can reproduce the hazards of outdoor months or years in days or weeks. Types of hazards include: fading, discoloration, loss of light, powdering, cracking, turbidity, air bubbles, embrittlement, strength, decay, and oxidation. This machine contains a shower device.
3. The ultraviolet accelerated aging test chamber can simulate environmental conditions such as ultraviolet, rain, high temperature, high humidity, condensation, darkness and the like in a natural climate, and by recreating these conditions, merge them into a loop, and let it automatically perform the loop. frequency. This is how the UV aging test chamber works.
UV Test Chamber Details
