Product Details:
Place of Origin: Guangdong, China
Certification: CE Complied
Model Number: WVMS-3020F
Payment & Shipping Terms:
Minimum Order Quantity: negotiation
Price: Negotiation
Packaging Details: Wooden case outside with pallet, in total 1-2CBM
Delivery Time: 5-7 working days
Payment Terms: L/C, T/T, Western Union, , MoneyGram
Supply Ability: 500 sets/ month
Contact Now
Detailed Product Description
Name: Video Measuring Machine Application: Molded Parts
Travel (mm): 300×200 Camera: 1/2”color CCD Camera
Auto Zoom Lens Magnification: 0.7X~4.5X Magnification: 20~128X
Object View: 11.1mm~1.7m Power: AC 100-240V 50/60Hz
High Light:

length measuring machine

,

computer measuring machine

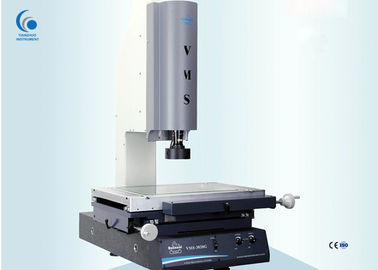

2D Video Measuring Non-Contact Measuring System WVMS-3020F Measuring Machine





Video Measuring Machine Application





electronics, instrument, meter, watch, light industry, plastics as well as measuring chambers, laboratories of institutes and universities, research institutes, metrological verification departments and workshops, etc.

Applied mainly for 2D measurement and can support some specific 3D measurement as necessary.



Video Measuring Machine  SPECIFICATIONS:



Model WVMS-3020F Video Measuring Machine
Metal table size (mm) 500×330
Travel (mm) 300×200
Video System 1/2”color CCD camera
Auto zoom lens magnification: 0.7X~4.5X
Magnification: 20~128X
Object view: 11.1mm~1.7m
Surface lighting and transmission lighting both adopt adjustable LED
Linear scale resolution: 0.0005mm. X, Y-axis indication error: (2.5+L/100)μm (L is the length of the measured object. Unit: mm)
Consistency error of origin in different sections E0≤20 (every 100mm displacement in Z axis)
Z-axis travel (mm) 200 (can be customized to 400)



Video Measuring Machine  FEATURES:



1. Various forms of light source, ensure to meet the diversity of measurement needs.

2. Height auxiliary measurement can be achieved.

3. Effectively support data processing, data display, data input, and data output.

4. Detects the measured workpiece’s specific location by laser indicator, which is convenient to position and operate.

5. Foot switch and software cooperate, easier to operate

6. Linear scales supports the resolution of 0.5μm.



Video Measuring Machine Details



Video Measuring Machine 2D Video Measuring Machine , Non Contact Measuring System 0
