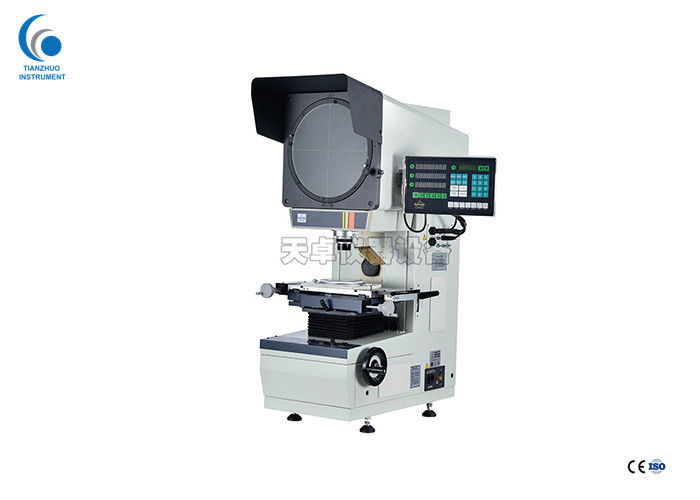

High Accuracy Digital Profile Projector / Lab Optical Profile Projector
Digital Profile Projector Introduction:
Digital Profile Projector precise and excellent non-contact optical measuring instrument integrated with the technology of optic, mechanic, electricity and computer. It is widely used at the field of mechanism, instrument, electronic, rubber industry for quality control, it can inspect all kinds of surface and outline of complicated work-pieces, such as, cam, screw thread, gear, perform milling cutter and so on, and it is an effective metrical and analytic system for education, research institute and lab.
Digital Profile Projector Specifications:
| Model |
Reverse
Erect |
CPJ-3007
CPJ-3007Z |
CPJ-3010
CPJ-3010Z |
| X-axis Travel (mm) |
75 |
100 |
| Y-axis Travel (mm) |
50 |
50 |
| Metal table size (mm) |
260×152 |
306×152 |
| Glass table size (mm) |
125×100 |
175×100 |
| Resolution (μm) |
0.5 |
| Indication error (mm) |
E1XY=(2.5+L/100) |
E1XY=(2.5+L/75) |
| Z-axis Travel (mm) |
90 (focusing) |
| Weight (kg) |
120 |
125 |
| Dimension (mm) |
770x550x1100 |
770x550x1100 |
| Projection screen |
Size (mm) |
Ø 312 |
| Rotary range |
0~360° |
| Resolution |
1' or 0.01° |
| Lens |
Magnification |
10× (Optional) |
20× (Optional) |
50× (Optional) |
| Field of view (mm) |
Ø30 |
Ø15 |
Ø6 |
| Working distance (mm) |
77.7 |
44.3 |
38.4 |
| Max. measuring Height (mm) |
80 |
80 |
80 |
| Power supply: AC 100-240V 50/60Hz. Total power: 400W |
Digital Profile Projector Application:
This profile projector is widely used in machinery, molds, tools, instruments, electronics, light industry, measuring rooms and workshops are essential for a kind of test measurement equipment.
Digital Profile Projector Features:
- Resolution of linear scale: 0.5um
- Powerful Digital Readout to support easy and accurate measurement
- Reliable and cost-effective
- Precise and accurate
- Low maintenance cost
- Optional Proprietary software
Digital Profile Projector Advantages:
1. Independent product design, production, production in strict accordance with the process requirements, beautiful appearance.
2. The product has excellent performance and durability with reasonable price.
3. Famous brands are adopted for key components to guarantee the performance and quality.
4. We company established a sound quality assurance system and complete after-sales service guarantee system.
5. Free warranty for 1 year.
Digital Profile Projector Details
