Multi Function Button Force Tester / Force Testing Machine Compression

Multi Function Button Force Tester / Force Testing Machine Compression

    • Multi Function Button Force Tester / Force Testing Machine Compression
    • Multi Function Button Force Tester / Force Testing Machine Compression
  • Multi Function Button Force Tester / Force Testing Machine Compression

    Product Details:

    Place of Origin: Guangdong, China
    Certification: CE Complied
    Model Number: 1305PR

    Payment & Shipping Terms:

    Minimum Order Quantity: Negotiable
    Price: Negotiation
    Packaging Details: Wooden case outside with pallet, in total 1-2CBM
    Delivery Time: 5-7 working days
    Payment Terms: L/C, T/T, Western Union, , MoneyGram
    Supply Ability: 500 sets/ month
    Contact Now
    Detailed Product Description
    Item: Button Force Tester Feature: Multi Function
    Minimum Resolution: 0.01g Maximum Measured Stroke: 150mm
    Weight: 31kg Measurement Speed Range: 0 -300mm/min
    High Light:

    keyboard switch tester

    ,

    load testing machine

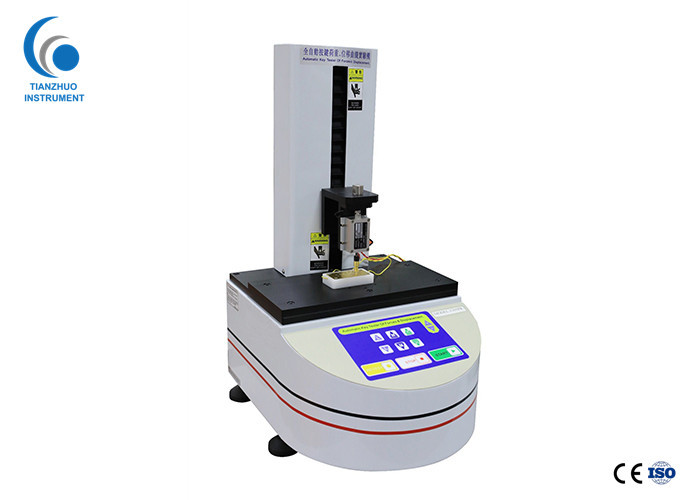

    Multi Function Button Force Tester / Force Testing Machine Compression



    Product Introduction:



    automatic key loading-curve tester which is Hi-tech machine integrated the precise structure, auto control and precise pressure control into one is developed and manufactured by our company. This tester has these advantages such as powerful functions, easy programmable, easy operation and low price. It is suitable for the test for the keyboard of cell phone, the keyboard of the computer, the keyboard of ATM, the keyboard of remote controller of TV/air conditioner.



    Specifications:



    NO Item parameter
    1 Test maximum load 50kg
    2 Minimum resolution 0.01g
    3 Maximum measured stroke 150mm
    4 Minimum display stroke 0.01mm
    5 Measurement speed range 0 -300mm/min
    6 Machine drive mechanism ball screw
    7 Machine drivedrive the motor drive the motor
    8 Machine size 440*340*560 (W*D*H) mm
    9 Machine weight 31kg
    10 Power source 220V



    Product Features:



    1. Test conditions can be set by computer and stored.Set by the drop-down menu or enter data directly.
    2. Peak, Bottom, Peak, Bottom, Distance and Click can be directly displayed on the graph without manual calculation.
    3. The graphs are memorized by the computer and can be zoomed in and out at any time. A piece of A4 paper can be used to place 24 graphs at will.
    4. The known trip can test the corresponding load, or the known load can test the corresponding trip;
    5. Life curves of load decay can be derived after testing;
    6. The contents of the header of the inspection report can be modified at any time (both in Chinese and English);



    Details





    Multi Function Button Force Tester / Force Testing Machine Compression 0
